Quick Details
-
Engine Brand:
-
Top brand
-
Weight:
-
2565 KG
-
Engine:
-
A4K41T60
-
Engine power:
-
44KW
-
Gearbox gears number:
-
12F+12R
-
Forward Speed:
-
2.33-31.04(Kw/h)
-
Reverse Speed:
-
2.04-27.21(Kw/h)
-
Tires spec.-Front tires:
-
8.3-24
-
Rear tires:
-
14.9-28
-
Steering Type:
-
Full hydraulic front wheels steering
-
Max. lifting force( KN ):
-
9.9
Quick Details
-
Brand Name:
-
Lutong
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
New Product
-
Engine Brand:
-
Top brand
-
Weight:
-
2565 KG
-
Engine:
-
A4K41T60
-
Engine power:
-
44KW
-
Gearbox gears number:
-
12F+12R
-
Forward Speed:
-
2.33-31.04(Kw/h)
-
Reverse Speed:
-
2.04-27.21(Kw/h)
-
Tires spec.-Front tires:
-
8.3-24
-
Rear tires:
-
14.9-28
-
Steering Type:
-
Full hydraulic front wheels steering
-
Max. lifting force( KN ):
-
9.9
Contact
Whatsapp/Wechat/Mobile: +86-17806282946
QQ: 1158703055

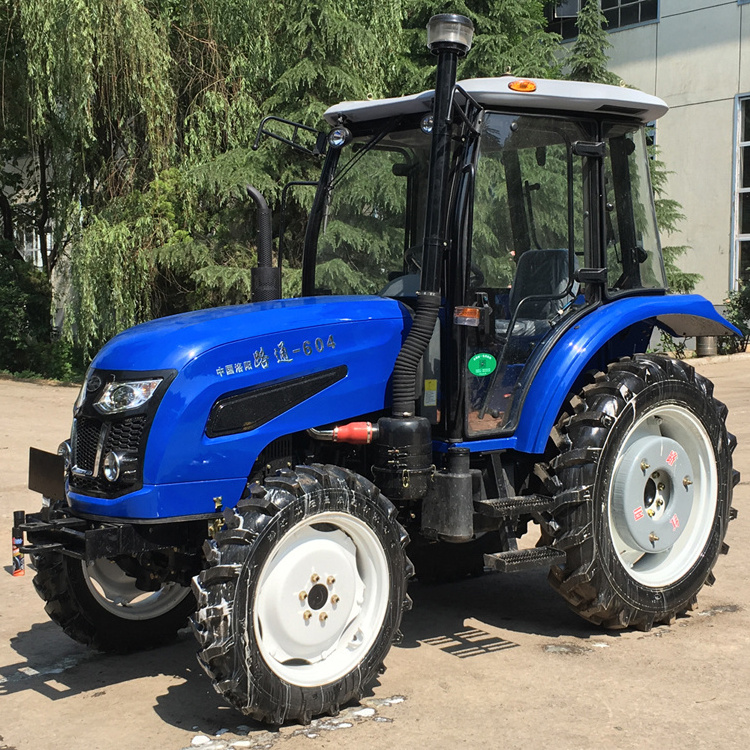

60HP 4WD Agriculture Tractor LT604B
Products Description
1.Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2.Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
3.Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
4.Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
5.Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save
energy;
6.Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7.Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9.New streamlined appearance, generous, modern, fashion;
10.Control levers can be mounted at side as optional, more convenient and comfortable.
2.Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
3.Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
4.Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
5.Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save
energy;
6.Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7.Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9.New streamlined appearance, generous, modern, fashion;
10.Control levers can be mounted at side as optional, more convenient and comfortable.
Product Paramenters
|
Tractor Model
|
|
LT604
|
|
|
Drive Type
|
|
4X4
|
|
|
Overall Dimension L×W×H(mm)
|
|
3925×1728×2170
|
|
|
Wheel base(mm)
|
|
2010
|
|
|
Front wheel tread(mm)
|
|
1265
|
|
|
Rear wheel tread(mm)
|
|
1200--1500 (Common 1300)
|
|
|
Min. ground clearance(mm)
|
|
375
|
|
|
Min. steering radius
|
Unilateral brake(m)
|
3.8
|
|
|
|
Not unilateral brake(m)
|
4.3
|
|
|
Min. operating weight (KG)
|
|
2565
|
|
|
Gearbox gears number
|
|
12F+12R
|
|
|
Speed
|
Forward(Kw/h)
|
2.33-31.04
|
|
|
|
Reverse(Kw/h)
|
2.04-27.21
|
|
|
Engine
|
Model
|
A4K41T60
|
|
|
|
Rated power (Kw)
|
44
|
|
|
|
Rated speed (r/min)
|
2300
|
|
|
Tires spec.
|
Front tires
|
8.3-24
14.9-28 |
|
|
|
Rear tires
|
|
|
|
Steering Type
|
|
Full hydraulic front wheels steering
|
|
|
Max. lifting force( KN )
|
|
9.9
|
|
|
PTO
|
Type
|
Rear-mounted, Semi-independent type
|
|
|
|
Speed (r/min)
|
540/760 or 540/1000
|
|
|
|
Power(Kw)
|
≥37.4
|
|
|
Control type of ploughing depth
|
|
Height control & flotation control
|
|
|
Max. traction force (KN)
|
|
12.5
|
|
|
Front / rear Ballast (KG)
|
|
104/300
|
|
