Quick Details
-
Description:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Max. Forward Voltage:
-
4.0V
-
Max. Reverse Voltage:
-
6.0V
-
Max. Forward Current:
-
30mA
-
Max. Reverse Current:
-
10uA
-
Diode Type:
-
DIP LED
-
Operating Temperature:
-
-40-+85, -40-85
-
Package / Case:
-
CUSTOMIZE
-
Power - Max:
-
0.1W
-
Color Rendering Index:
-
≥90
-
Package:
-
1000pcs/pack
-
Forward Voltage:
-
2.0-2.2V
-
Light:
-
CUSTOMIZE
-
Product name:
-
DIP LED diodes
-
LED Color:
-
transparent milky, red, blue, green, orange, yellow
-
Light Color:
-
white / red / yellow / green / blue / orange / pink / UV
-
Pins:
-
2pins
-
Polarity:
-
Anode (Longer Pin) | Cathode (Shorter Pin)
Quick Details
-
Model Number:
-
LED diode
-
Brand Name:
-
accept customized
-
Mounting Type:
-
Through Hole
-
Description:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Max. Forward Voltage:
-
4.0V
-
Max. Reverse Voltage:
-
6.0V
-
Max. Forward Current:
-
30mA
-
Max. Reverse Current:
-
10uA
-
Diode Type:
-
DIP LED
-
Operating Temperature:
-
-40-+85, -40-85
-
Package / Case:
-
CUSTOMIZE
-
Power - Max:
-
0.1W
-
Color Rendering Index:
-
≥90
-
Package:
-
1000pcs/pack
-
Forward Voltage:
-
2.0-2.2V
-
Light:
-
CUSTOMIZE
-
Product name:
-
DIP LED diodes
-
LED Color:
-
transparent milky, red, blue, green, orange, yellow
-
Light Color:
-
white / red / yellow / green / blue / orange / pink / UV
-
Pins:
-
2pins
-
Polarity:
-
Anode (Longer Pin) | Cathode (Shorter Pin)
Products Description
|

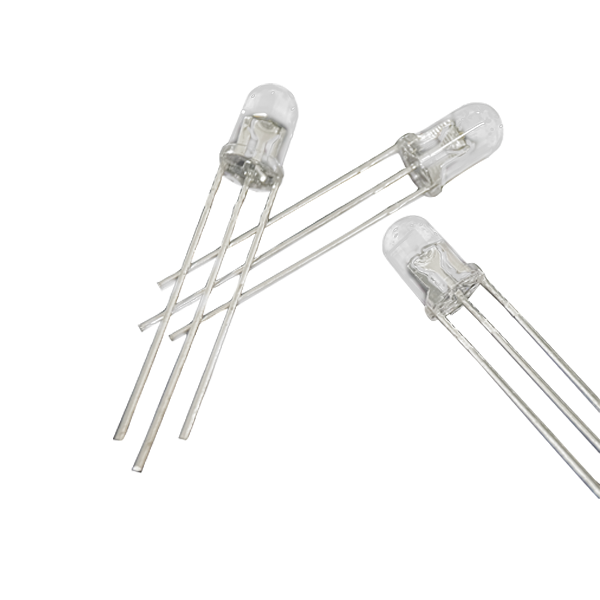

Product Name
|
OEM 2MM 3MM 5MM 8MM 10MM Led Diode White Yellow Blue Green Red Round Oval Flat Top UV Rgb Ir Infrared Light Emitting Led Diodes
|
|
Certification
|
Reach,Rosh
|
|
Power
|
0.1W
|
|
LED beads
|
Through Hole
|
|
Supplier type
|
Original manufacturer, ODM
|
|
Lead Soldering Temperature
|
260℃ for 5seconds
|
|
LED Color
|
CUSTOMIZE transparent milky, red, blue, green, orange, yellow
|
|
Shape
|
round, flat, squre, pacifier, concave head, concaved, straw hat
|
|
Light Color
|
white / red / yellow / green / blue / orange / pink / UV
|
|
Color Rendering Index(Ra)
|
90
|
|
Package
|
1000pcs/pack
|
|
Product Model |
Colour |
Colour Temperature
(NM/K) |
Input
voltage (V) |
luminance |
Operating Current
|
Angle |
|
Round head series |
Red
|
620-625
|
2.0-2.2
|
400-800
|
20MA
|
110-130°
|
|
|
Blue
|
460-465
|
3.0-3.2
|
1000-1500
|
20MA
|
110-130°
|
|
|
Emerald Green
|
520-525
|
3.0-3.2
|
1200-2000
|
20MA
|
110-130°
|
|
|
Orange
|
601-605
|
1.9-2.1
|
400-800
|
20MA
|
110-130°
|
|
|
Yellow
|
588-590
|
2.0-2.2
|
400-800
|
20MA
|
110-130°
|
Energy Saving Chips
Uniform luminous emission, high spectral sensitivity
3000 hours average attenuation <2% delay Longer service life
High-performance wires
HyunChan Optoelectronics adopts 99.9%
Gold wire welding, fast heat dissipation
Good conductivity, good stability, high temperature resistance
High quality bracket
Easy to tin, good thermal conductivity
Silver plated bracket, not easy to oxidis
Environmental colloids
Use of environmentally friendly epoxy resin adhesive
High colour rendering and high temperature resistance
Q1. Who are we?
A: We are based in Guangdong,China, start from 2009,there are total about 100+ people in our company.
Q2. What can you buy from us?
A: Light Emitting Diodes, LED String Lights,Solar Garden Light,Decorative Lights and LED Bulbs.
Q3. Are your samples free or need cost?
A: Actually it depends on the products. For low value products,we will provide free spls,freight collect. But for some high value spls,it need spl cost and freight collect. Pls informed that all spls cost and freight cost can be returned back to you after order placed.
Q4. How can I get a sample to check your quality?
A: You can contact our customer service to provide samples to test and check the quality. Mixed samples are acceptable.
Q5: Can you accept OEM and ODM order?
A: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will takes some time to customize them.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q7. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q2. What can you buy from us?
A: Light Emitting Diodes, LED String Lights,Solar Garden Light,Decorative Lights and LED Bulbs.
Q3. Are your samples free or need cost?
A: Actually it depends on the products. For low value products,we will provide free spls,freight collect. But for some high value spls,it need spl cost and freight collect. Pls informed that all spls cost and freight cost can be returned back to you after order placed.
Q4. How can I get a sample to check your quality?
A: You can contact our customer service to provide samples to test and check the quality. Mixed samples are acceptable.
Q5: Can you accept OEM and ODM order?
A: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will takes some time to customize them.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q7. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
