Quick Details
-
Computer Connections:
-
16
-
Interface Type::
-
RJ45
-
Resolution::
-
1920x1080@60Hz
-
Switch Mode::
-
OSD menu, hotkey , panel button, remote control, extended con
-
Product type::
-
Auto USB KVM Switch
-
Shell material::
-
Metal
Quick Details
-
Brand Name:
-
catvscope
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CSP-9116MS
-
Computer Connections:
-
16
-
Interface Type::
-
RJ45
-
Resolution::
-
1920x1080@60Hz
-
Switch Mode::
-
OSD menu, hotkey , panel button, remote control, extended con
-
Product type::
-
Auto USB KVM Switch
-
Shell material::
-
Metal
HOT SALE
Product Description

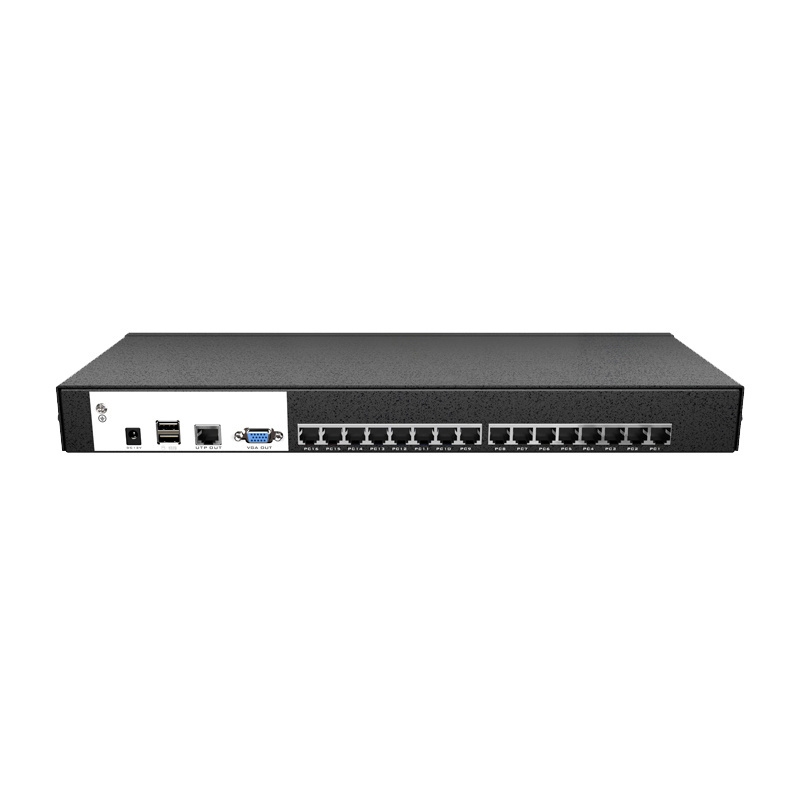

The high-density KVM switch allows IT managers to access and control up to 32 servers from a single KVM console. The unique and powerful functional design allows managers to easily and simply control and maintain the computer room and large data center. Under the state of 1920*1080, the distance of the server can be extended to 50m. The high-density KVM switch can help companies save time, space and cost, and is an ideal solution for small and medium enterprises to provide the most economic benefits.
Product features
1. 1U standard rack installation.
2. Standard UTP (CAT5/5e/6) cable installation.
3. Support a local control terminal and a CAT5 extension control terminal.
4. Support hardware reset button.
5. Switching methods: OSD menu switching, keyboard hotkey switching, panel switching, remote control switching, local remote control.
6. CAT5 network interface, a single KVM can control 8/16/32 servers, computers or hard disk video recorders, suitable for managing high-density server cabinets.
7. Remote access supports various resolution modes, up to 1920x1080@60Hz
8. Each port has independent brightness and contrast adjustment.
9. Support automatic scanning, the default scanning time is 5 seconds.
10. The connection cable between PC module and KVM is within 0-100 meters, and the best effect is 50 meters.
Product features
1. 1U standard rack installation.
2. Standard UTP (CAT5/5e/6) cable installation.
3. Support a local control terminal and a CAT5 extension control terminal.
4. Support hardware reset button.
5. Switching methods: OSD menu switching, keyboard hotkey switching, panel switching, remote control switching, local remote control.
6. CAT5 network interface, a single KVM can control 8/16/32 servers, computers or hard disk video recorders, suitable for managing high-density server cabinets.
7. Remote access supports various resolution modes, up to 1920x1080@60Hz
8. Each port has independent brightness and contrast adjustment.
9. Support automatic scanning, the default scanning time is 5 seconds.
10. The connection cable between PC module and KVM is within 0-100 meters, and the best effect is 50 meters.
Specification
|
Parameter
|
Description
|
Default Setting
|
Other Options
|
||
|
Brightness and Contrast
|
Adjust the brightness and contrast of the display signal of the current port
|
Brightness: 50%
Contrast: 25% |
Brightness range: 0~100%
Contrast range: 0~100% |
||
|
Scan speed
|
Set the time that auto scan stays on each port
|
5 seconds
|
5/10/20/30/60 seconds
|
||
|
OSD window dwell time
|
The time the OSD menu window stays
|
5 seconds
|
5/10/20/30/40/60/75/90 seconds
|
||
|
Activate the OSD menu
|
Press the port on keyboard twice to activate the OSD menu
|
HOME
|
Caps/Scroll/Num
|
||
|
Hot-key switch button
|
Press the port on keyboard to Use hot-key commands
|
HOME
|
Caps/Scroll/Num
|
||
|
Power input
|
DC12V
|
|
|
||
|
Operating system
|
Support DOS, Win95/98/98ES/2000/ME/XP/NT, NetWare...
|
|
|
||
|
USB speed
|
12Mbps (USB1.1)
|
|
|
||
|
Resolution
|
1920x1080@60Hz
|
|
|
||
|
Operating temperature
|
-45~60℃
|
|
|
||
|
Stored temperature
|
-20~60℃
|
|
|
||
|
Product size
|
430x166x45 mm
|
|
|
||
|
Shell
|
metal
|
|
|
||
