Quick Details
-
Model Number:
-
RX-PMG260
-
Voltage:
-
220V/380V
-
Certification:
-
CE&RoHs
-
Rated power:
-
5KW
-
Application:
-
Wind Or Water Generator
-
Rated speed:
-
2000 RPM
-
Rated voltage:
-
220V/380V
-
Certificate:
-
CE
-
Structure:
-
inner rotor
-
Warranty:
-
10YEARS
Quick Details
-
Power:
-
5KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
R&X
-
Model Number:
-
RX-PMG260
-
Voltage:
-
220V/380V
-
Certification:
-
CE&RoHs
-
Rated power:
-
5KW
-
Application:
-
Wind Or Water Generator
-
Rated speed:
-
2000 RPM
-
Rated voltage:
-
220V/380V
-
Certificate:
-
CE
-
Structure:
-
inner rotor
-
Warranty:
-
10YEARS

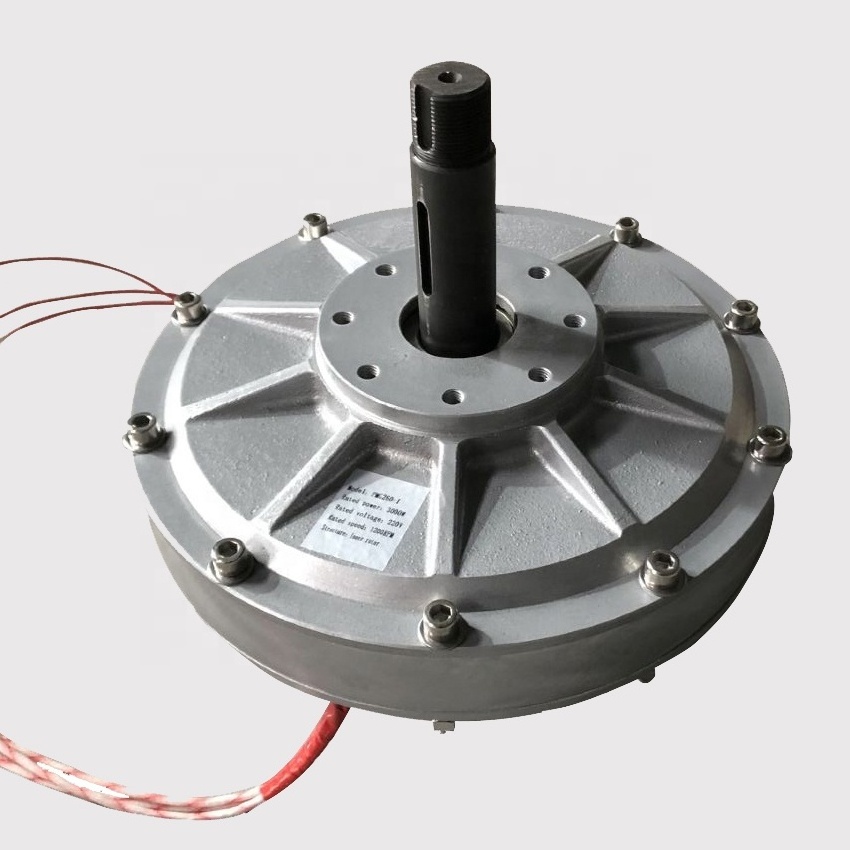

5KW Low Rpm Alternative Energy Generator With
Factory Price
Product Description
Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy
Small, Light weight, Compact structure,High efficiency etc.
1 Coreless, anhysteresis, slotless, have low starting torque.
2 No iron loss, have high efficiency
3 Adopt unique coreless precision winding technology design precision coil
4 Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and
high output power.
5 Low speed direct driving, no torque fluctuations
6 Compact structure, high ratio of power to volume
7 No iron loss, low calorific value,small temperature rise
8 Simple structure, easy to install
9 The brushless structure, free maintenance
10.Application in
vertical axis wind turbine; gasoline generators; hydroelectric generator
Drawing
Technical Data
|
No.
|
PARAMETER
|
UNITS
|
DATA
|
|
1
|
Rated Power
|
KW
|
5
|
|
2
|
Rated speed
|
RPM
|
2000
|
|
3
|
Rated voltage
|
Vac
|
220v/380v
|
|
4
|
Rated Current
|
Amp
|
20A/13A
|
|
5
|
Start Torque
|
NM
|
＜0.5
|
|
6
|
Rated Toruqe
|
NM
|
23.75
|
|
7
|
Efficiency
|
|
>95%
|
|
8
|
Winding type
|
|
Y
|
|
9
|
Insulation Resistance
|
|
100Mohm Min(500V DC)
|
|
10
|
Leakage level
|
|
＜5ma
|
|
11
|
Phase
|
|
Three phase
|
|
12
|
Structure
|
|
Inner Rotor
|
|
13
|
Stator
|
|
Coreless
|
|
14
|
Rotor
|
|
Permanent magnet type
|
|
15
|
Gen. Diameter
|
mm
|
265
|
|
16
|
Gen. Length
|
mm
|
204
|
|
17
|
Gen. Weight
|
kg
|
17
|
|
18
|
Shaft. Diameter
|
mm
|
30
|
|
19
|
Housing Material
|
|
Aluminum ( Alloy )
|
|
20
|
Shaft Material
|
|
Steel
|
Details Images
Power Curve
Wiring Diagram
