Quick Details
-
Lamp Body Material:
-
Aluminum
-
Color Temperature(CCT):
-
2700K, 3000K, 3500K, 4000K, 5000K, CCT adjustable
-
Product Weight（kg）:
-
0.86
-
LED Light Source:
-
CREE COB
-
Input Voltage(V):
-
AC120V
-
Lamp Luminous Flux(lm):
-
2100lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lumiwell
-
Model Number:
-
LW-TRB20W
-
Product name:
-

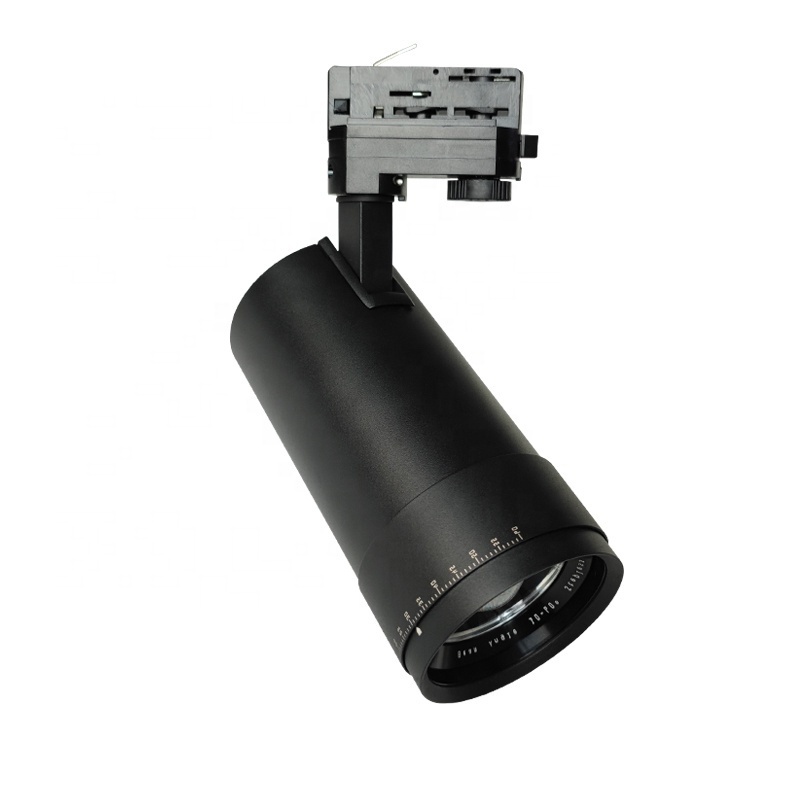

H-Type LED Track Light
-
Dimmable:
-
Triac
-
3 CCT:
-
3000K-4000K-5000K Adjustable
-
5 CCT:
-
2700K-3000K-3500K-4000K-5000K Adjustable
-
Beam Angle:
-
15/25/36/60 Degree
-
PF:
-
>0.98
-
Dimension:
-
3.27''*L4.53''*H6.6''
-
Compatible Dimmer:
-
Lutron/Leviton/Smart Home/Arctic Lighting
-
Installation:
-
Track Mount, Ceiling Mount, Wall Mount Optional.
-
Certification:
-
ETL, cETL, FCC, CE, RoHS
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
110
-
Application:
-
Museum/Gallery/Stores/Supermarkets/Restaurant
-
Design Style:
-
Built-in driver integrated design
-
Lamp Body Material:
-
Aluminum
-
Color Temperature(CCT):
-
2700K, 3000K, 3500K, 4000K, 5000K, CCT adjustable
-
Product Weight（kg）:
-
0.86
-
LED Light Source:
-
CREE COB
-
Input Voltage(V):
-
AC120V
-
Lamp Luminous Flux(lm):
-
2100lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lumiwell
-
Model Number:
-
LW-TRB20W
-
Product name:
-
H-Type LED Track Light
-
Dimmable:
-
Triac
-
3 CCT:
-
3000K-4000K-5000K Adjustable
-
5 CCT:
-
2700K-3000K-3500K-4000K-5000K Adjustable
-
Beam Angle:
-
15/25/36/60 Degree
-
PF:
-
>0.98
-
Dimension:
-
3.27''*L4.53''*H6.6''
-
Compatible Dimmer:
-
Lutron/Leviton/Smart Home/Arctic Lighting
-
Installation:
-
Track Mount, Ceiling Mount, Wall Mount Optional.
-
Certification:
-
ETL, cETL, FCC, CE, RoHS
ETL cETL FCC Approved AC120V 60Hz 7W 10W 15W 20W 25W 30W 110lm/W Triac Dimming CCT Adjustable LED Track Lights for North American Market
Product Introduction
LUMIWELL
®
LED track lighting portfolio delivers a complete line of products. Well-designed and well-made to deliver exceptional track lighting, the portfolio offers more options, flexibility, energy efficiency and better lighting quality. We also offers a full selection of track, heads and accessories to make building a complete track lighting solution easy.
Applications: Museum/Gallery/Hotels/Restaurant/Stores/Supermarkets.
Main Features
1. CREE COB LED chips, no shadow, strong penetrability, high fidelity CRI 83/95 and high efficacy up to 110lm/W.
2. Triac dimming, smooth range from 100% to 10%, and compatible with most dimmers, such as Lutron, Leviton, Smart Home, Arctic Lighting etc.
3. finished color: black, white and Silver Gray.
4. UL certified driver, no flicker, high PF0.98, instant start, noise free, no UV and IR, environment-friendly.
5. Adjustable irradiation angel: 350°horizontal and 90°vertival aiming.
6. Unique integrated driver, invisible wires, anti-glare design.
7. Compatible track systems: Halo, Juno, Lightolier and Global.
8. 3 levels CCT adjustable: 3000K, 4000K, 5000k.
9. 5 levels CCT adjustable: 2700K, 3000K, 3500K, 4000k, 5000k.
Specifications
| Model No. | LW-TRB7W | LW-TRB10W | LW-TRB15W | LW-TRB20W | LW-TRB25W | LW-TRB30W |
| Power | 7W | 10W | 15W | 20W | 25W | 30W |
| Lumens | 770lm | 1050lm | 1575lm | 2050lm | 2570lm | 3100lm |
| Dimming | Triac | Triac | Triac | Triac |
Triac 0-10V |
Triac |
| Voltage | AC120V 60Hz | |||||
| Size | φ2.17''*L3.54''*H5.5'' | φ2.64''*L4.33''*H5.91'' | φ3.27''*L4.53''*H6.6'' | φ3.74''*L5.24''*H7.1'' | ||
| Beam Angle | 15/25/36/55 Degree | 15/25/36/55 Degree | 15/25/36/60 Degree | 12/24/36/60 Degree | ||
| CCT |
Single CCT: 2700K/3000K/4000K/5000K
|
|||||
| CRI |
Single CCT: 83Ra/95Ra
3 CCT/5 CCT: 90Ra |
|||||
| Adaptor | Halo, Juno, Lightolier and Global optional | |||||
| Lifespan | 50000hrs | |||||
| Certificate | ETL, cETL, DLC, FCC | |||||
| Warranty | 5 years | |||||
Certification:
1. H-type 3-wrie tracks 4. Live-End connector 7. "L" Connector
2. Cables 5. Mini joiner 8. "T" Connector
3. Floating canopy 6. Flexible connector 9. "+" Connector
Applications:
1. Clothing/Shoe/Furniture/Jewelry stores
2. Supermarkets
3. Hotels/ Restaurant
4. Auto shops
5. Museum/Gallery
