Quick Details
-
Voltage:
-
380V 50HZ (can be changed)
-
Power:
-
8KW
-
Dimension(L*W*H):
-
3700*1200*2000mm
-
Weight:
-
1600 kg
-
Paper Plate Size:
-
4-13"
-
Paper Grams:
-
100-800g/m2
-
Capacity:
-
Double Stations 40-110pcs/min
-
Air Supply Requirement:
-
0.4Mpa, 0.3cube/min
-
Cylinder Stroke:
-
150mm
Quick Details
-
Production Capacity:
-
100 pcs/min
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SY
-
Voltage:
-
380V 50HZ (can be changed)
-
Power:
-
8KW
-
Dimension(L*W*H):
-
3700*1200*2000mm
-
Weight:
-
1600 kg
-
Paper Plate Size:
-
4-13"
-
Paper Grams:
-
100-800g/m2
-
Capacity:
-
Double Stations 40-110pcs/min
-
Air Supply Requirement:
-
0.4Mpa, 0.3cube/min
-
Cylinder Stroke:
-
150mm
Machine introduction:

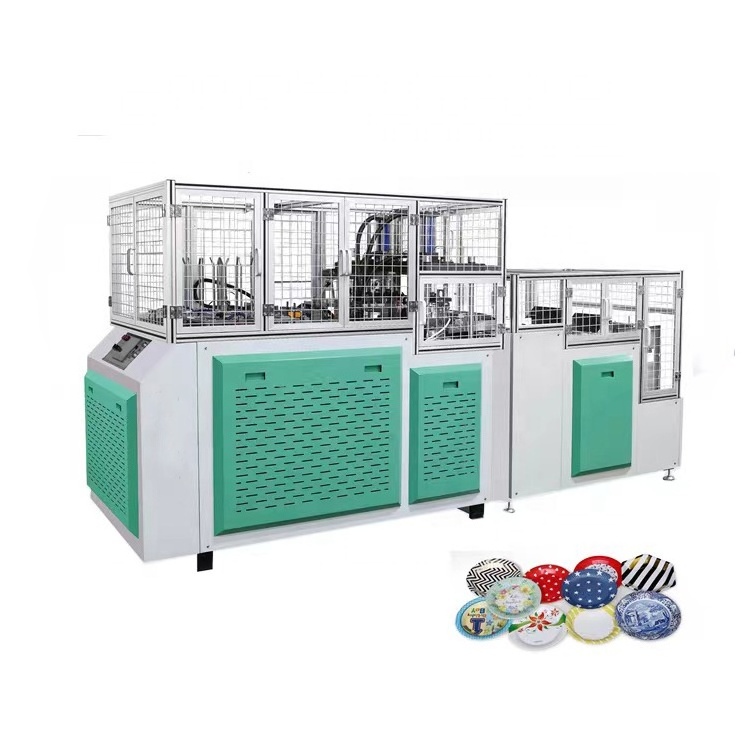

High Speed Double Lane Paper Plate Making Machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts automatic lubrication, mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance. For electrical parts,PLC, photoelectric tracking, machine with cover for protection, auto intelligent & safe fabrication, can directly support production line.
High Speed Double Lane Paper Plate Making Machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts automatic lubrication, mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance. For electrical parts,PLC, photoelectric tracking, machine with cover for protection, auto intelligent & safe fabrication, can directly support production line.
|
Paper Plate Size
|
4-13”
|
|
Paper Grams
|
100-800g/m2
|
|
Paper Materials
|
Base paper, whiteboard paper, white cardboard, aluminum foil paper or others
|
|
Capacity
|
Double Stations 40-110pcs/min
|
|
Power Requirements
|
380V 50HZ
|
|
Total Power
|
8KW
|
|
Weight
|
1600kg
|
|
Specifications
|
3700×1200×2000mm
|
|
Air Supply Requirement
|
0.4Mpa, 0.3cube/min
|
|
Other Notes
|
Customize
|
|
Cylinder Stroke
|
150mm
|
