Quick Details
-
Fork Length:
-
920mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
920*120*35mm
-
Weight (KG):
-
3070 kg
-
Product Name:
-

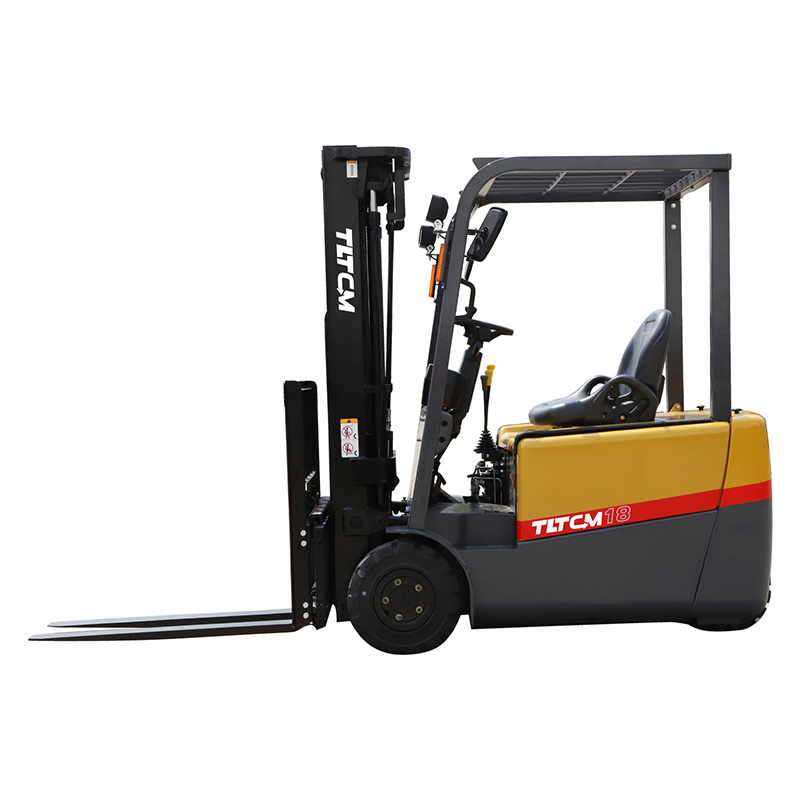

Electric Forklift Truck
-
Type:
-
Electric Battery Forklift
-
Power type:
-
AC Power
-
Model:
-
1.8ton Electric Forklift
-
Key words:
-
Folk Lift
-
Loading Capacity:
-
1800kg
-
Brand:
-
TLTCM
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Japan Engine
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TLTCM
-
Fork Length:
-
920mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
920*120*35mm
-
Weight (KG):
-
3070 kg
-
Product Name:
-
Electric Forklift Truck
-
Type:
-
Electric Battery Forklift
-
Power type:
-
AC Power
-
Model:
-
1.8ton Electric Forklift
-
Key words:
-
Folk Lift
-
Loading Capacity:
-
1800kg
-
Brand:
-
TLTCM
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Japan Engine
Product Category
Product Display
Product Details
|
FBT15/FBT18/FBT20 3-WHEEL ELECTRIC FORKLIFT SPECIFICATION
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||
|
General
|
1
|
Model
|
|
|
FBT15
|
FBT18
|
FBT20
|
|||||||
|
|
2
|
Power type
|
|
|
Electric
|
Electric
|
Electric
|
|||||||
|
|
3
|
Rated Capacity
|
|
kg
|
1500
|
1800
|
2000
|
|||||||
|
|
4
|
Load Centre
|
|
mm
|
500
|
500
|
500
|
|||||||
|
Characteristic&Dimensions
|
5
|
Lift Height
|
|
mm
|
3000
|
3000
|
3000
|
|||||||
|
|
6
|
Fork Size
|
L×W×T
|
mm
|
920×120×35
|
920×120×35
|
1070×120×40
|
|||||||
|
|
7
|
Mast Tilt Angle
|
F/R（α°/β°）
|
Deg
|
6°/6°
|
6°/6°
|
6°/6°
|
|||||||
|
|
8
|
Front Overhang(Wheel center to fork face)
|
|
mm
|
390
|
390
|
395
|
|||||||
|
|
9
|
Tread
|
(F/R)
|
mm
|
924/208
|
924/208
|
924/208
|
|||||||
|
|
10
|
Ground Clearance(Bottom of mast)
|
|
mm
|
90
|
90
|
90
|
|||||||
|
|
11
|
Fork Spread
|
Min./Max.
|
mm
|
240/970
|
240/970
|
240/970
|
|||||||
|
|
12
|
Overall Dimension
|
Length to face of fork(Without fork)
|
mm
|
2100
|
2100
|
2105
|
|||||||
|
|
13
|
|
Overall Width
|
mm
|
1100
|
1100
|
1100
|
|||||||
|
|
14
|
|
Mast Lowered Height
|
mm
|
2010
|
2010
|
2010
|
|||||||
|
|
15
|
|
Mast Extended Height(With backrest)
|
mm
|
3940
|
3940
|
3940
|
|||||||
|
|
16
|
|
Overhead Guard Height
|
mm
|
2055
|
2055
|
2055
|
|||||||
|
|
17
|
Turning Radius(outside)
|
|
mm
|
1690
|
1690
|
1690
|
|||||||
|
|
18
|
Min. insecting aisle
|
|
mm
|
2300
|
2300
|
2300
|
|||||||
|
Performance
|
19
|
Speed
|
Travel (Empty load)
|
km/h
|
14
|
14
|
14
|
|||||||
|
|
20
|
|
Lifting (Full load)
|
mm/s
|
340
|
320
|
300
|
|||||||
|
|
21
|
Max. Gradeability
|
|
%
|
15
|
15
|
15
|
|||||||
|
Chassis
|
22
|
Tire
|
Front
|
|
18×7-8
|
18×7-8
|
18×7-8
|
|||||||
|
|
23
|
|
Rear
|
|
16×6-8
|
16×6-8
|
16×6-8
|
|||||||
|
|
24
|
Wheelbase
|
|
mm
|
1460
|
1460
|
1460
|
|||||||
|
|
25
|
Service Weight
|
|
kg
|
3420
|
3520
|
3760
|
|||||||
|
Power & Transimission
|
26
|
Motor
|
Driven Motor
|
kw
|
2×4.5
|
2×4.5
|
2×4.5
|
|||||||
|
|
27
|
|
Lift Motor
|
kw
|
8.6
|
8.6
|
8.6
|
|||||||
|
|
28
|
Battery
|
Voltage/Capacity
|
V/Ah
|
48/490
|
48/490
|
48/560
|
|||||||
|
|
29
|
Controller
|
Manufacturer
|
|
CURTIS
|
CURTIS
|
CURTIS
|
|||||||
|
|
30
|
|
Type
|
|
AC
|
AC
|
AC
|
|||||||
|
|
31
|
Operating Pressure for Attachment
|
|
Mpa
|
14.5
|
14.5
|
14.5
|
|||||||
About Us
Fujian Tianli Times Machinery Co., Ltd is located in Xiamen with more than 20 years professional experience in the forklift field. We are a subsidiary branch of HANGCHA in China, and our brand is TLTCM.
We are a high-tech enterprise integrating R&D(research and development) and design, manufacturing, with more than 500 employees. We are one of the top construction machinery sales and service companies in Fujian Province.
At the moment our main products are: electric forklifts, electric stackers, off-road forklifts, small excavators, loaders and other small and medium-sized mechanical equipment. We provide users with advanced material handling equipment, professional after-sales service and experienced material handling solutions.
Factory Display
Exhibition
Production Proces
FAQ
Q1: How about the delivery time?
A1: Usually our producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q2: How about the continuous working time for the electric series forklifts ? How long time to charge the battery full?
A2: Our battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, our charger is automatic, after the battery is full, it will stop working automatically.
Q3: Can you provide customized products? OEM products or ODM products?
A3: Yes, we can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
Q5: How long is the after-sales warranty?
A5: We can provide video technical support.
Q6. Can I visit your company?
A6: Of course. We always with great pleasure at your service. If you want to order our products and visit our company, please contact us to make an appointment.
