Quick Details
-
Model Number:
-
4IK25RA-A
-
Frequency:
-
50/60Hz
-
Product Name:
-

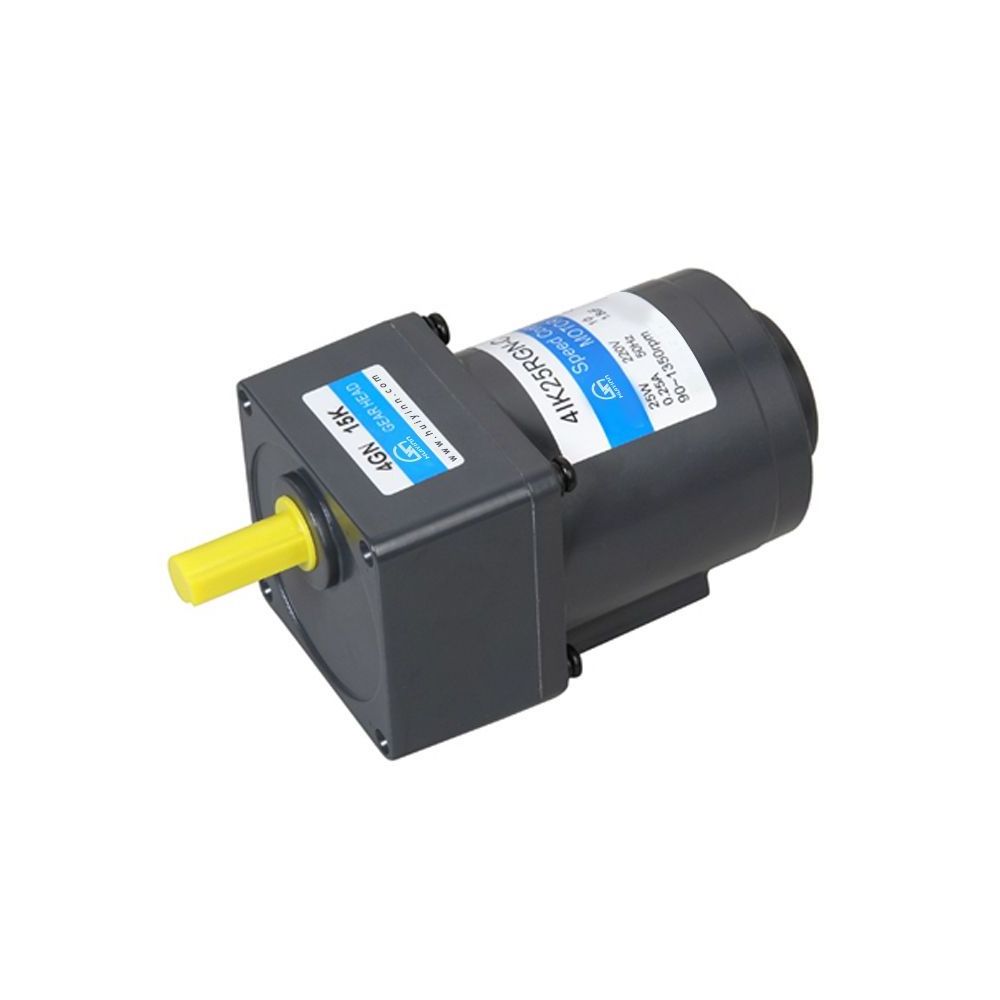

AC Induction Gear Motor
-
Rated Power:
-
25W
-
Voltage:
-
110/220V
-
Model:
-
4IK25RA-A
-
Keywords:
-
Electric AC Motor
-
Cooling method:
-
Air
-
Usage:
-
Machinery Equipment
-
Color:
-
Customer Request
-
Weight:
-
3.63kg
Quick Details
-
AC Voltage:
-
220V/110v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huiyinn
-
Model Number:
-
4IK25RA-A
-
Frequency:
-
50/60Hz
-
Product Name:
-
AC Induction Gear Motor
-
Rated Power:
-
25W
-
Voltage:
-
110/220V
-
Model:
-
4IK25RA-A
-
Keywords:
-
Electric AC Motor
-
Cooling method:
-
Air
-
Usage:
-
Machinery Equipment
-
Color:
-
Customer Request
-
Weight:
-
3.63kg
Products Description
Recommend Product
Details Images
Product Paramenters
|
Output Power
|
Type
|
Gear Type
|
Available Option
|
Power Supply
|
Allowable Rated Torque
|
Standard Shaft Size
|
||||||
|
6 W (1/125 HP) AC Gear Motors
|
Lead Wire
|
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
3N.M
|
8*30mm D-CUT
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.048N.M
|
6*24mm D-CUT
|
||||||
|
|
|
|
|
|
|
|
||||||
|
15 W (1/50 HP) AC Gear Motors
|
Lead Wire
|
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
5N.M
|
10*32mm Key-way
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.125N.M
|
6*32mm D-CUT
|
||||||
|
|
|
|
|
|
|
|
||||||
|
25 W (1/30 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
8N.M
|
10*32mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
8N.M
|
15*74mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
8N.M
|
12*32mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.2N.M
|
8*32mm D-CUT
|
||||||
|
40 W (1/19 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
10N.M
|
12*32mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
20N.M
|
17*86mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.315N.M
|
10*37mm D-CUT
|
||||||
|
60 W (1/12 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
10N.M
|
12*32mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
20N.M
|
17*86mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.47N.M
|
12*37mm D-CUT
|
||||||
|
90 W (1/8 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
20N.M
|
17*86mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.7N.M
|
12*37mm D-CUT
|
||||||
|
120 W (1/6 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
20N.M
|
17*83mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
20N.M
|
15*38mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
0.93N.M
|
12*37mm D-CUT
|
||||||
|
140 W (1/5 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
40N.M
|
15*42mmKey-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
40N.M
|
22*98mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
40N.M
|
20*48mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
1.08N.M
|
12*37mmD-CUT
|
||||||
|
200 W (1/4 HP) AC Gear Motors
|
Lead Wire
Terminal Box |
Parallel Shaft
|
Electromagnetic Brake/Speed control
|
1-Phase 110/115 VAC 1-Phase 220/230 VAC 3-Phase 220/380 VAC
|
40N.M
|
15*42mm Key-way
|
||||||
|
|
|
Right-Angle Hollow Shaft
|
|
|
40N.M
|
22*98mm Hollow type
|
||||||
|
|
|
Right-Angle Solid Shaft
|
|
|
40N.M
|
20*48mm Key-way
|
||||||
|
|
|
Round Shaft (no Gear)
|
|
|
1.52N.M
|
12*37mmD-CUT
|
||||||
|
*Power/Shaft size/Mounting Flange can be customized according to your requirements
|
|
|
|
|
|
|
||||||
