Quick Details
-
Length:
-
Max 3000mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Topfence
-
Model Number:
-
Wire Mesh Cable Tray
-
Side Rail Height:
-
12, 15, 25, 50, 75, 100, 150, 200 mm
-
Max. Working Load:
-
50 - 1000kg(according to size)
-
Product Name:
-
Basket Cable Tray
-
Material For Choosing:
-
Stainless steel,aluminium, GI, Pre-gal steel
-
MOQ:
-
10meters
-
Sample:
-
Freely Supplied
-
Surface Finishing:
-
Zinc Plated/Hot Dip Galvanized/Powder Coating
-
Application:
-
Industrial and Commercial Setting
-
OEM & ODM:
-
Availalbe
-
Certification:
-
CE, ISO
-
Package:
-
Steel Pallet
-
Delivery time:
-
10~20 days for average order quantity
Quick Details
-
Type:
-
Wire Mesh
-
Material:
-
Steel
-
Width:
-
50mm - 600mm
-
Length:
-
Max 3000mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Topfence
-
Model Number:
-
Wire Mesh Cable Tray
-
Side Rail Height:
-
12, 15, 25, 50, 75, 100, 150, 200 mm
-
Max. Working Load:
-
50 - 1000kg(according to size)
-
Product Name:
-
Basket Cable Tray
-
Material For Choosing:
-
Stainless steel,aluminium, GI, Pre-gal steel
-
MOQ:
-
10meters
-
Sample:
-
Freely Supplied
-
Surface Finishing:
-
Zinc Plated/Hot Dip Galvanized/Powder Coating
-
Application:
-
Industrial and Commercial Setting
-
OEM & ODM:
-
Availalbe
-
Certification:
-
CE, ISO
-
Package:
-
Steel Pallet
-
Delivery time:
-
10~20 days for average order quantity
Product Details

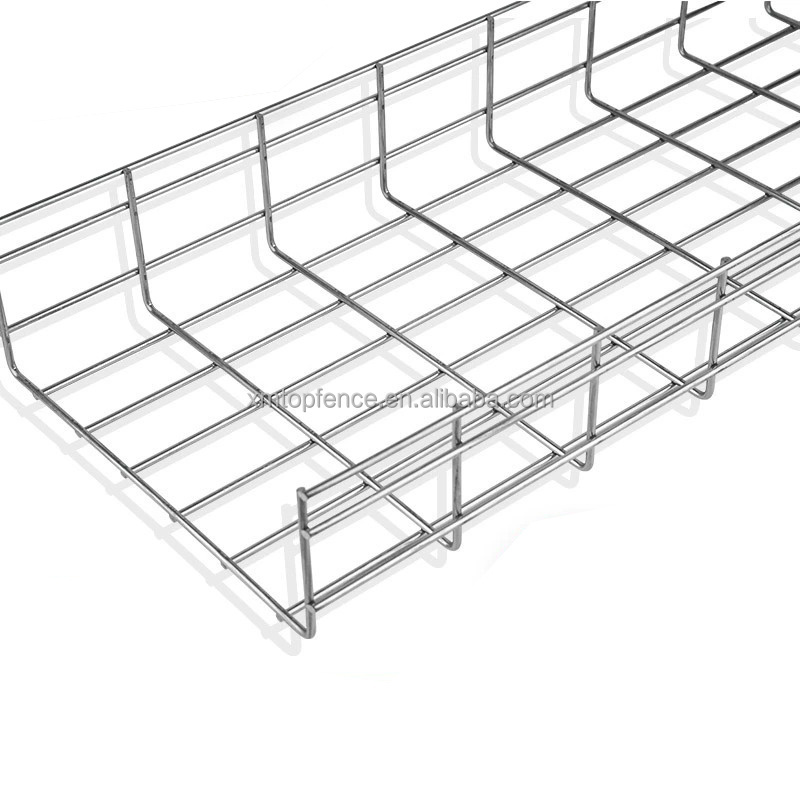

The wire mesh cable tray, also known as a basket cable tray, is constructed using stainless steel wires welded together to form a basket-like mesh. These trays are designed to provide a fast and efficient solution for supporting extensive cable systems in environments such as data centers, network equipment rooms, and areas with intricate machinery.
Features:
1. Wire mesh cable trays have high strength to support large quantities of network cables.
2. Resist corrosion, heat because of pre-galvanized, hot-dipped galvanized, powder coated surface treatment.
3. Open design makes cables move, ventilate smoothly, decreasing collection of debris, dust.
4. Can be cut and formed to create smooth curved transitions around obstacles.
5. Available in many sizes depending on different uses.
6. No sharp edges and prevent injures and damage to cables.
7. Easy and fast installation with accessories.
2. Resist corrosion, heat because of pre-galvanized, hot-dipped galvanized, powder coated surface treatment.
3. Open design makes cables move, ventilate smoothly, decreasing collection of debris, dust.
4. Can be cut and formed to create smooth curved transitions around obstacles.
5. Available in many sizes depending on different uses.
6. No sharp edges and prevent injures and damage to cables.
7. Easy and fast installation with accessories.
|
Material
|
|
|
||
|
Carbon Steel
|
Zinc Plating
|
Indoor normal environment. Possible for outdoor urban environment.
|
||
|
|
Powder Coating
|
Indoor normal environment. Possible for outdoor urban environment.
|
||
|
|
Hot-dip Galvanizing
|
Outdoor environment. Possible for chemical industries, nitrate explosives.
|
||
|
|
Zinc Plating + Powder Coating
|
Indoor normal environment and outdoor urban environment.
|
||
|
SS304(L)
|
Untreated
|
Outdoor urban environment. Possible for food production environment.
|
||
|
|
Pickled & Passivated
|
Food production environment. Possible for acid, alkaline or halogen environment.
|
||
|
|
Electrolytic Polishing
|
Outdoor urban environment. Possible for food production environment.
|
||
|
SS316(L)
|
Untreated
|
Food production environment. Island environment.
|
||
|
|
Pickled & Passivated
|
All harsh environments, especially marine environment.
|
||
|
|
Electrolytic Polishing
|
Food production environment. Island environment.
|
||
|
Standard Wire Mesh Cable Tray Dimension
|
|
|
|
|||
|
Finish:
Hot-dipped galvanized, electrolytic polishing, plastic-sprayed, powder coated
|
|
|
|
|||
|
Loading capacity:
50 - 1000kg
|
|
|
|
|||
|
Welding strength:
Broken force over 1166N
|
|
|
|
|||
|
Accessories:
Bend, risers, T-junctions, reducers, clips, holder, corbel, base
|
|
|
|
|||
|
Width (mm)
|
Height (mm)
|
Length (m)
|
Wire Diameter (mm)
|
|||
|
50 (2 inch)
|
50
|
3.0 or customize
|
4.0/4.5/5.0/max/customize
|
|||
|
100 (4 inch)
|
50/100
|
3.0 or customize
|
4.0/4.5/5.0/max/customize
|
|||
|
150 (6 inch)
|
50/100/150
|
3.0 or customize
|
4.0/4.5/5.0/max/customize
|
|||
|
200 (8 inch)
|
50/100/150
|
3.0 or customize
|
4.5/5.0/max/customize
|
|||
|
300 (12 inch)
|
50/100/150
|
3.0 or customize
|
4.5/5.0/max/customize
|
|||
|
400 (16 inch)
|
50/100/150
|
3.0 or customize
|
5.0/max/customize
|
|||
|
450 (18 inch)
|
50/100/150
|
3.0 or customize
|
5.0/max/customize
|
|||
|
500 (20 inch)
|
50/100/150
|
3.0 or customize
|
5.0/max/customize
|
|||
|
600 (24 inch)
|
50/100/150
|
3.0 or customize
|
5.0/max/customize
|
|||
