Quick Details

Place of Origin:: Shandong, China

Brand Name:: Labthink

Model Number:: C406H

Applications:: flexible films, sheets and foils

Test Method:: Coulometric sensor, infrared sensor

Guaranteed Period:: 12 months

Certifications:: ISO 9001, CE

Test Chambers:: 3 test chambers

Standard:: ASTM D3985,ASTM F1249,ISO 15106-2

Function:: OTR&WVTR tests for gas barrier materials

Quick Details

Warranty:: 12 months

Power:: Electronic

Customized support:: Test Item Customization

Place of Origin:: Shandong, China

Brand Name:: Labthink

Model Number:: C406H

Applications:: flexible films, sheets and foils

Test Method:: Coulometric sensor, infrared sensor

Guaranteed Period:: 12 months

Certifications:: ISO 9001, CE

Test Chambers:: 3 test chambers

Standard:: ASTM D3985,ASTM F1249,ISO 15106-2

Function:: OTR&WVTR tests for gas barrier materials

Product Description

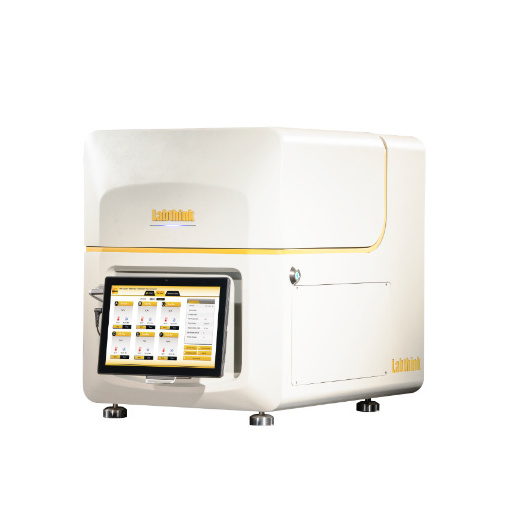

C406H Oxygen /Water Vapor Transmission Rate Test System is based on the testing principle of Coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured according to ASTM D3985、ASTM F1249，ISO 15106-2 and other relevant standards to provide high precision and high efficiency oxygen and water vapor transmission rate tests for high and medium gas barrier materials. It is suitable for testing the oxygen and water vapor transmission performance of films, sheets and related materials in the fields of food, medicine, medical devices, daily chemicals, photovoltaic, electronic and many others.

Features

OTR/WVTR tested in One Instrument
* OTR \ WVTR mode, OTR mode and WVTR mode are available for selection.
* OTR and WVTR tests can be automatically completed for each sample mounting.
* Genuinely reflect the OTR \ WVTR performance of the same sample, avoiding effect on test data due to sample contamination arising from instrument switching.

Coulometric Oxygen Sensor
* The instrument is equipped with a ppb level Coulometric Oxygen Sensor, as one of new Labthink technical achievements, which can obtain a lower limit of the test.
* Designed according to ASTM D3985 with absolute value, and no calibration is permitted.
* Longer service life, two times longer than that of a traditional Coulometric oxygen sensor.
* Over limit alarm and automatic protection.

Infrared Moisture Sensor
* The instrument is equipped with Labthink patented infrared moisture sensor which can obtain a lower limit of the test.
* Designed according to ASTM F1249.
* Longer service life, non-consumable.
* Over limit alarm and automatic protection.

Accurate Data
* Using 360 ° air circulation constant temperature technology, the temperature stability is better.
* Equipped with high-precision temperature and humidity sensor, to monitor and record temperature and humidity changes in real time.
* In the test process, the automatic control on flow, temperature and relative humidity is realized, reaching higher accuracy.
* Higher test repeatability of 0.01 cc / (m2·day) can be achieved.

High Efficiency Six-cell
* Independent six sets of 50cm2 standard area test cells, which is three times the traditional oxygen transmission rate test
instrument.
* Six samples can be tested at the same time under the same conditions, with independent tests data.
* In the same test cycle, the number of samples completed increases from 2 to 6.
* Automatic sample clamping, saving time and effort, ensuring consistent clamping force and better sealing.

Intelligent Operation
* The 12 Inch Touch panel of windows system is used for more convenient operation.
* Automatic mode - after inputting test temperature and humidity and clicking one key, the test proceeds automatically.
* New drawer type test cell, one key automatic in-and-out with sound and light reminder.

Safe and Reliable
* Safe Running: Labthink’s high-end industrial computer is embedded to eliminate the system failure caused by computer virus and ensure the operation reliability and data storage security.
* Safe Operation: equipped with optical and other intelligent sensors as well as intelligent sound and light alarms to ensure the operation safety.
* Safe Performance: the instrument uses global renowned brand components with stable and reliable performance.

Powerful Functions
* Professional test mode provides flexible and plentiful control functions to meet the needs of scientific research.
* Display oxygen/water vapor transmission rate curve, oxygen/water vapor transmission coefficient curve, temperature curve and humidity curve.
* Wide temperature range, allowing the barrier test at different temperatures (customized).
* The gas purification device independently developed by Labthink can remove trace oxygen in nitrogen, providing oxygen-free carrier gas (optional).

Standards

ASTM D3985, ASTM F1307, GB/T 19789, GB/T 31354, DIN 53380-3, JIS K7126-2-B, YBB 00082003-2015
ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, YBB00092003-2015

Applications

Films
The oxygen and water vapor transmission rate tests of various plastic films, paper-plastic composite films, co-extrusion films,
aluminized films, aluminum foil composite films, glass fiber aluminum foil paper composite films and other film-like materials.
Sheets
The oxygen and water vapor transmission rate tests of PP sheet, PVC sheet, PVDC sheet, metal foil, rubber sheet, silicon sheet and
other sheet materials.

Test Parameters
Test Range	cc/(m2·day) (Standard area 50cm2)	0.02 ~ 200
	cc/(m2·day) (MASK area 5cm2)	0.2 ~ 2000 (Optional)
	cc/(m2·day) (MASK area 1cm2)	1 ~ 10000 (Optional)
Resolution	cc/(m2·day)	0.0001
Repeatability	cc/(m2·day)	0.01 or 1%, whichever is greater
Temperature range	°C	15 - 50 5 – 60 (Customized)
Temperature fluctuation	°C	±0.05
Humidity range	%RH (Within standard temperature range)	0%, 5 - 90%±2%
Extended functions	GP-01 Gas Purification Unit	Optional
		DataShieldTM Note3	Optional
		Computer System required by GMP	Optional
		CFR21 Part11	Optional
Note : The parameters in the table are measured by professional operators in Labthink Laboratory according to the requirements and conditions of relevant laboratory environmental standards.

Technical Specifications
Test Chamber	6 test chambers
Specimen Size	4.6” x 4.6”（11.7cm×11.7cm)
Specimen Thickness	≤120 Mil（3mm）
Standard Test Area	50 cm2
Carrier Gas	99.999% high purity nitrogen, 99.5% oxygen (gas source is out of supply scope)
Carrier Gas Pressure	≥ 40.6 PSI / 280 kPa
Port Size	1/8 inch metal tubing
Power Supply	120VAC±10% 60Hz / 220VAC±10% 50Hz（either one of two）
Instrument Dimensions	23.6” H x 19.2” W x 25.9” D (60cm× 49cm× 66cm)
Net weight	220Lbs（100kg）
