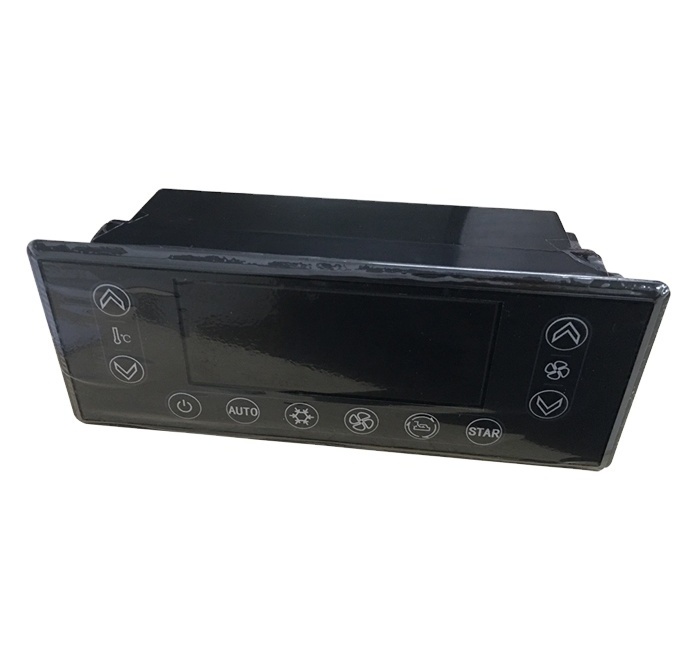

Quick Details
-
Warranty:
-
18M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWBASE
-
Car Model:
-
BUS
-
Model No.:
-
CK200203
-
Power supply:
-
12v/24v
-
Power:
-
3w
-
Display:
-
LED
-
Material:
-
ABS
-
Bus Model:
-
YUTONG bus
-
Application:
-
Car Air Conditioner System
-
Voltage:
-
DC12V/DC24V
-
Color:
-
Black
-
Certification:
-
16949
Quick Details
-
OE NO.:
-
NA
-
Reference NO.:
-
YUTONG bus, WINIA MANDO
-
Size:
-
168*66*54
-
Warranty:
-
18M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWBASE
-
Car Model:
-
BUS
-
Model No.:
-
CK200203
-
Power supply:
-
12v/24v
-
Power:
-
3w
-
Display:
-
LED
-
Material:
-
ABS
-
Bus Model:
-
YUTONG bus
-
Application:
-
Car Air Conditioner System
-
Voltage:
-
DC12V/DC24V
-
Color:
-
Black
-
Certification:
-
16949
Specification
Functions
Fully-automatic control, cool, fresh air, memory, error alarm, inside and outside temp display, voltage auto-protection, shift
function.
function.
Shift Function:
1)Air outlet temp.display(press fresh air button or 3s)
2)Mandatory cooling(press cooling button for 3s)
Application case: YUTONG bus, HYUNDAI, WINIA MANDO
1)Air outlet temp.display(press fresh air button or 3s)
2)Mandatory cooling(press cooling button for 3s)
Application case: YUTONG bus, HYUNDAI, WINIA MANDO
|
|
|
|
Power supply
|
24V(DC20V-DC32V)
|
|
Power consumption
|
3W
|
|
Current
|
Max.200mA
|
|
Dimensions
|
168X66X54mm
|
|
Display
|
LED (true color/red)
|
|
Ambient temperature
|
-30°c—80°c 5%-95%RH Non-condensing
|
|
Storage temperature
|
-10°c—70°c, 5%-95%RH Non-condensing
|
|
Display
|
Dual digit display of set temp., accuracy 1°c
|
|
Precision
|
Dual digit display of inside temp. accuracy 1°c
|
|
Humidity
|
Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost
|
|
Test standard
|
temp., defrost on at 2°c, defrost off at 4°c
|
|
Connector
|
Plug HP5557-22R
|
|
Faceplate level
|
IP54
|
|
EMC level
|
EN50081&EN50082-2
|
|
Security level
|
Applied to EN61010-II, Pollution degree: II
|
|
Weight
|
330g
|
|
Input
|
1)Inside temp. sensor(25°c,Rb=5K,B=3274)
|
|
|
2) Defrost sensor (25°c,Rb=5K,B=3274)
|
|
|
3) Pressure switch
|
|
|
4) Power(generator)
|
|
|
5) ACC(battery)
|
|
|
6) Backup lamp power
|
|
|
7) Engine overheat signal(water temp. signal)
|
|
|
8) Engine oil pressure signal
|
|
|
9) Engine working signal
|
|
Output
|
1) Condenser fan(max1A)
|
|
|
2) Fan high (max.1A)
|
|
|
3) Fan mid (max.1A)
|
|
|
4) Fan low (max.1A)
|
|
|
5) Fresh air open (max.1A)
|
|
|
6) Fresh air close (max.1A)
|
|
|
7) Compressor clutch(max.1A)
|
|
|
8) Excitation (max.1A)
|
|
|
9) Engine start signal(max.1A)
|
|
|
10) Preheating signal(max.1A)
|
|
|
11) Engine high control signal(max.1A)
|
|
|
12) Engine stop signal(max.1A)
|
|
|
13) Oil feeding signal(max.1A)
|
Product Description
Packing & Delivery
seaworthy packing
