Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
900MM
-
Table Size:
-
11000*2000
-
Overall Dimensions:
-
11200*2000*1400
-
Weight:
-
2750KG, 2300 - 3100 kg
-
Application:
-
Truck and container loading/ unloading
-
Color:
-
Blue, Gray, customize available
-
Platform:
-
Anti-skid mesh steel
-
Voltage:
-
220v/380v, customize available
-
Load capacity:
-
6 - 12 ton
-
Adjustable Vertical Height:
-
900 - 1700mm
-
Lifting Control:
-
Manually or Electrically
-
Origin:
-
China
-
Material:
-
High-duty Steel Structure
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Malaysia, Argentina, Chile, Colombia, Sri Lanka, Romania, Bangladesh
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE, ROSH
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
900MM
-
Table Size:
-
11000*2000
-
Overall Dimensions:
-
11200*2000*1400
-
Weight:
-
2750KG, 2300 - 3100 kg
-
Application:
-
Truck and container loading/ unloading
-
Color:
-
Blue, Gray, customize available
-
Platform:
-
Anti-skid mesh steel
-
Voltage:
-
220v/380v, customize available
-
Load capacity:
-
6 - 12 ton
-
Adjustable Vertical Height:
-
900 - 1700mm
-
Lifting Control:
-
Manually or Electrically
-
Origin:
-
China
-
Material:
-
High-duty Steel Structure
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Malaysia, Argentina, Chile, Colombia, Sri Lanka, Romania, Bangladesh
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE, ROSH
Manufacturer Steel Forklift Mobile low price dock leveller

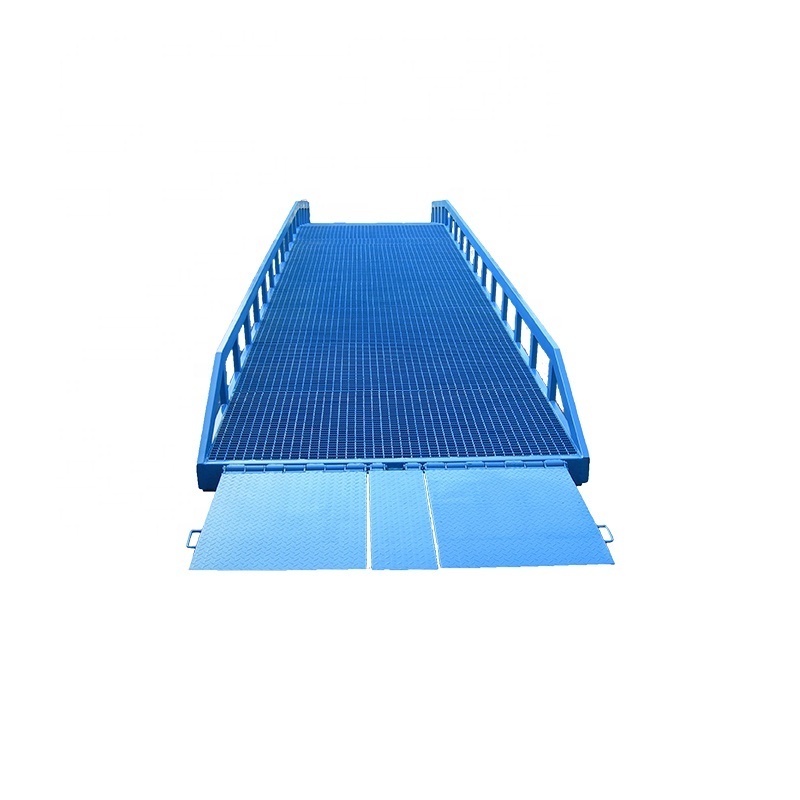

Mobile Dock Yard Ramp
is easy to be operated by manually or electrically.
The dock ramp is widely used in dock and factory for containers loaded and unloaded. Save manpower, improve work efficiency, and be well received by users. All our products are CE certified ,we have exported many dock ramp to world markets and received many good reputations.
The load capacity of dock ramp is 6t-15t ,different load capacity their price is different. As for color,it can be customized.We will design the color according to your requirements.
1. Data Sheet:
|
Model No. |
DCQY-6 |
DCQY-8 |
DCQY-10 |
DCQY-12 |
|
Load Capacity (t) |
6 |
8 |
10 |
12 |
|
Platform Size (mm) |
11000*2000 |
|||
|
Overall Size(mm) |
11200*2000*1400 |
|||
|
Lip Width (mm) |
400 |
|||
|
Tail Board Length (mm) |
800 |
|||
|
Platform Length(mm) |
2900 |
|||
|
Slope Length(mm) |
7500 |
|||
|
Adjustable Range of Lifting Height(mm) |
900~1700 |
|||
|
Operating |
||||
|
Platform Materials |
3 mm checked steel plate +7mm steel screen |
4mm checked steel plate +7mm steel screen |
5mm checked steel plate +8mm steel screen |
|
|
Lip Materials |
14mm Q235B plate |
18 mm Q235B plate |
20 mm Q235B plate |
|
|
Lifting Frame |
120 × 60 × 4.5 profile steel |
120 × 6 0 × 4.5 profile steel |
160 × 8 0 × 4.5 profile steel |
200 × 10 0 × 6 profile steel |
|
Bed Frame |
120 × 60 × 4. 5 profile steel |
120 × 60 × 4.5 profile steel |
120 × 60 × 4.5 profile steel |
160 × 8 0 × 4.5 profile steel |
|
Lower Truss |
100*50*3 rectangle tube Q235B |
|||
|
Guardrails |
||||
|
Tyre |
600-9 solid tyre |
|||
|
Cylinder Pin |
45# Ø 50 rod steel*4 |
|||
|
Hydraulic Oil Pipe |
||||
|
Electrical appliance |
Delixi |
|||
|
Hydraulic Oil |
ML series antiwear hydraulic oil 6L |
|||
|
Net Weight(kg) |
2350 |
2480 |
2750 |
3100 |
2. Photos Review:
3. Details Disply:
4. Real Orders Show. Applicable to all kinds of vehicles on the loading and unloading site. Loading/unloading platform, lifting platform.
5. Welcome to visit our factory and place the order with us.
6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
