Quick Details
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARE
-
Year:
-
Latest time
-
Power (kW):
-
11
-
Weight (KG):
-
2500
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PIPE
-
Certification:
-
CE
-
Power:
-
Hydraulic
-
Control:
-
PLC Control
-
Feeding:
-
Automatic
-
Angle rotating:
-
Automatic
-
Axis servo:
-
2
-
used exhaust pipe benders for sale:
-
used exhaust pipe benders for sale
Quick Details
-
Machine Type:
-
Bending machine, Pipe and Tube Bending Machine
-
Bending Radius (mm):
-
35 - 400
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARE
-
Year:
-
Latest time
-
Power (kW):
-
11
-
Weight (KG):
-
2500
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PIPE
-
Certification:
-
CE
-
Power:
-
Hydraulic
-
Control:
-
PLC Control
-
Feeding:
-
Automatic
-
Angle rotating:
-
Automatic
-
Axis servo:
-
2
-
used exhaust pipe benders for sale:
-
used exhaust pipe benders for sale
DW89CNC Automatic cnc used exhaust pipe benders for sale
Main specification
1. Interactive PLC touch screen offers easy access to auto and manual operating modes.
2. System diagnostics and multiple language capability.
3. Standard clockwise bending direction.
4. Fully hydraulic clamping on clamp die and pressure die.
5. Drop-way hydraulic clamping.
6. Direct acting hydraulic pressure die with adjustable speed valve.
7. Maximum 500 sets of program storage,Maximum 32 bends for each program.
8. With Independent programmable speeds Y, B, and C axes.
9. Programmable material spring back settings for each bend angle.
10. Automatic release of tube prior to final bend.
11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
13. Foot Pedal Cycle start.
14. With Air Cooling System.
15. One set of Tooling for Draw Bending.
16. Wiper die Bracket.
17. 1 Mandrel Rod.
18. Operation and Maintenance Manual.
19. Tool Box with Adjusted Tools.
20. Electric: As required
Technical parameter
|
Program |
DW89CNC |
|
|
Max bending R for carbon pipe is 1.5D |
Ø 89 X 3 mm |
|
|
Max bending R for stainless steel pipe is 1.5D |
Ø 63x2mm |
|
|
Availability Length of bending pipe |
3 500 mm |
|
|
Max R for bending |
450 mm |
|
|
Max angle for bending |
185° |
|
|
Bending process for every pipe |
16 |
|
|
Working rate |
Bend rate |
Ma×25°/sec |
|
Rotary rate |
Ma×180°/sec |
|
|
Feeding rate |
Ma×700mm/sec |
|
|
Rotary angle |
±0.1° |
|
|
Feeding length |
±0.1mm |
|
|
Watt of oil press electrical machine |
14mpa |
|
|
Information inputting method |
Axis (Y,B,C) |
|
|
Bending method |
Hydraulic |
|
|
Max bending group |
99 |
|
|
Power of rotary Servo motor |
1.5K W |
|
|
Power of feeding Servo motor |
2 K W |
|
|
Electrical motor power |
11kw |
|
|
Weight of machine |
290 0 kg |
|
|
Size L W H(CM) |
4 80 X130X120 |
|
|
Remark: The Max length of mandrel of pipe bending machine can according to customers requirement. |
||

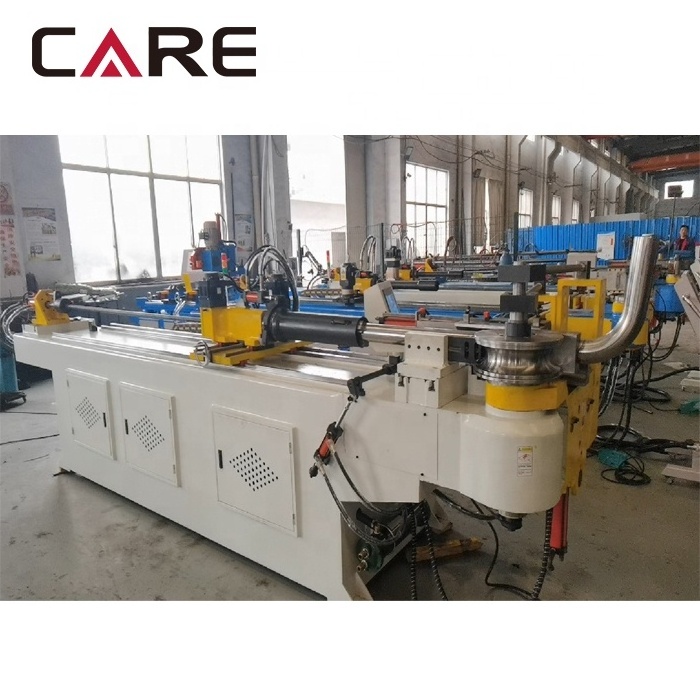

Machine photo
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die - nylon material
Pipe samples
