Quick Details
-
Dimension(L*W*H):
-
According to Boiler Capacity
-
Weight:
-
According to Boiler Capacity
-
Item:
-
DZL Single Drum Chain Grate Boiler
-
Rated capacity:
-
1-30T/h
-
Rated steam pressure:
-
0.7-2.5MPA
-
Ratedtemperature:
-
170-225℃
-
Thermal efficiency:
-
>=92%
-
Operation:
-
Auto Steam Boiler
-
Producing experience:
-
>=68 years
-
Manufacturer:
-
Yes
-
Application field:
-
Food, Textile, Dyeing&Printing, Papermaking industry
-
Certification:
-
ISO,GB,CE,AS,EAC,ASME,SGS
Quick Details
-
Core Components:
-
Chain Grate; Siemens Electric Control; Water Softener; Economizer
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EPCB Boiler
-
Dimension(L*W*H):
-
According to Boiler Capacity
-
Weight:
-
According to Boiler Capacity
-
Item:
-
DZL Single Drum Chain Grate Boiler
-
Rated capacity:
-
1-30T/h
-
Rated steam pressure:
-
0.7-2.5MPA
-
Ratedtemperature:
-
170-225℃
-
Thermal efficiency:
-
>=92%
-
Operation:
-
Auto Steam Boiler
-
Producing experience:
-
>=68 years
-
Manufacturer:
-
Yes
-
Application field:
-
Food, Textile, Dyeing&Printing, Papermaking industry
-
Certification:
-
ISO,GB,CE,AS,EAC,ASME,SGS

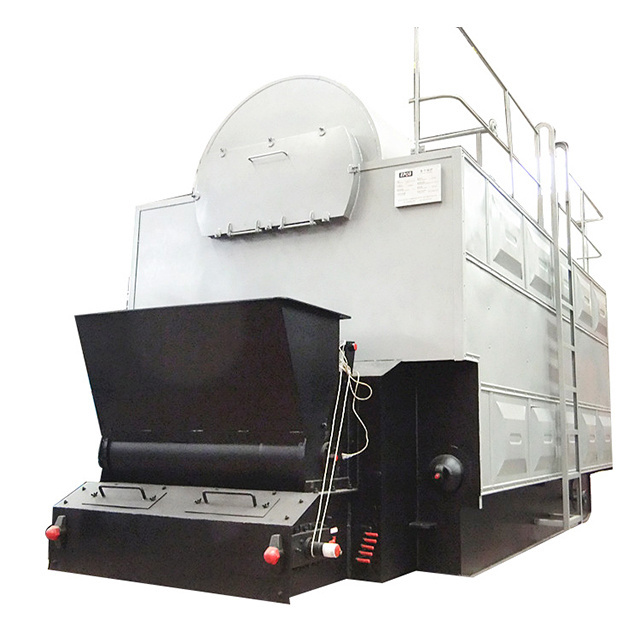

EPCB Chain Grate Stoker Qualified Lignite Coal Fired Steam Boiler for Garment Plant
Product Features
|
Item/Type
|
|
Single Drum Chain Grate Coal/Biomass Fired Steam Boiler
|
|
|
|
|
|
|
|
||||||||
|
Rated capacity t/h
|
|
1
|
2
|
4
|
6
|
8
|
10
|
12
|
15
|
||||||||
|
Rated steam pressure MPa
|
|
0.7/1.25
|
0.7/1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
||||||||
|
Rated steam temperature ℃
|
|
170/194
|
170/194/204
|
194/204
|
194/204
|
194/204
|
194/204
|
194/204
|
194/204
|
||||||||
|
Feed water temperature ℃
|
|
20
|
|
|
|
|
|
|
|
||||||||
|
Boiler thermal efficiency %
|
|
78.1
|
80.2
|
82.3
|
82.5
|
82.5
|
82.9
|
82.9
|
83.1
|
||||||||
|
Body heating area m2
|
|
22.99
|
48.7
|
96.34
|
148.15
|
174.4
|
226.2
|
276
|
374.5
|
||||||||
|
Fuel & consumption
|
Fuel type
|
Class II Soft Coal, Biomass, Wood Chips, Wood Pellets,
Rice Husk, Palm Kernel Shell, etc. |
|
|
|
|
|
|
|
||||||||
|
|
Coal kg/h
|
101.79
|
198.25
|
347.75
|
520.36
|
693.81
|
863.08
|
1035.70
|
1291.51
|
||||||||
|
|
Biomass kg/h
|
147.11
|
286.52
|
502.57
|
752.03
|
1002.71
|
1247.34
|
1496.80
|
1866.50
|
||||||||
|
Size of boiler largest parts
mm |
Length
|
4600
|
5800
|
6700
|
7000
|
7300
|
7600
|
7600
|
8500
|
||||||||
|
|
Width
|
1900
|
2600
|
2700
|
3000
|
3000
|
3200
|
3200
|
3400
|
||||||||
|
|
Height
|
2900
|
3500
|
3500
|
3500
|
3500
|
3500
|
3500
|
3500
|
||||||||
|
Weight of boiler
largest parts ton |
|
18
|
22
|
30.1
|
40
|
21/14
|
23/17
|
23/19
|
21/24
|
||||||||
