Quick Details
-
Voltage:
-
12V
-
Dimension(L*W*H):
-
1960*900*1250mm
-
Weight:
-
550kg
-
Motor power:
-
25hp,18.5kw
-
Working pressure:
-
7bar/101psi
-
Capacity:
-
3.2m3/min(114cfm)
-
Volume of air tank:
-
230L
-
Cooling method:
-
Air Cooling
-
Transmission way:
-
Belt diven
-
Price:
-
Wholesale price
-
Application:
-
General Industry
-
keywords:
-
diesel engine air compressor
-
Certification:
-
ISO9001,CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Model Number:
-
W-3.2/7
-
Voltage:
-
12V
-
Dimension(L*W*H):
-
1960*900*1250mm
-
Weight:
-
550kg
-
Motor power:
-
25hp,18.5kw
-
Working pressure:
-
7bar/101psi
-
Capacity:
-
3.2m3/min(114cfm)
-
Volume of air tank:
-
230L
-
Cooling method:
-
Air Cooling
-
Transmission way:
-
Belt diven
-
Price:
-
Wholesale price
-
Application:
-
General Industry
-
keywords:
-
diesel engine air compressor
-
Certification:
-
ISO9001,CE

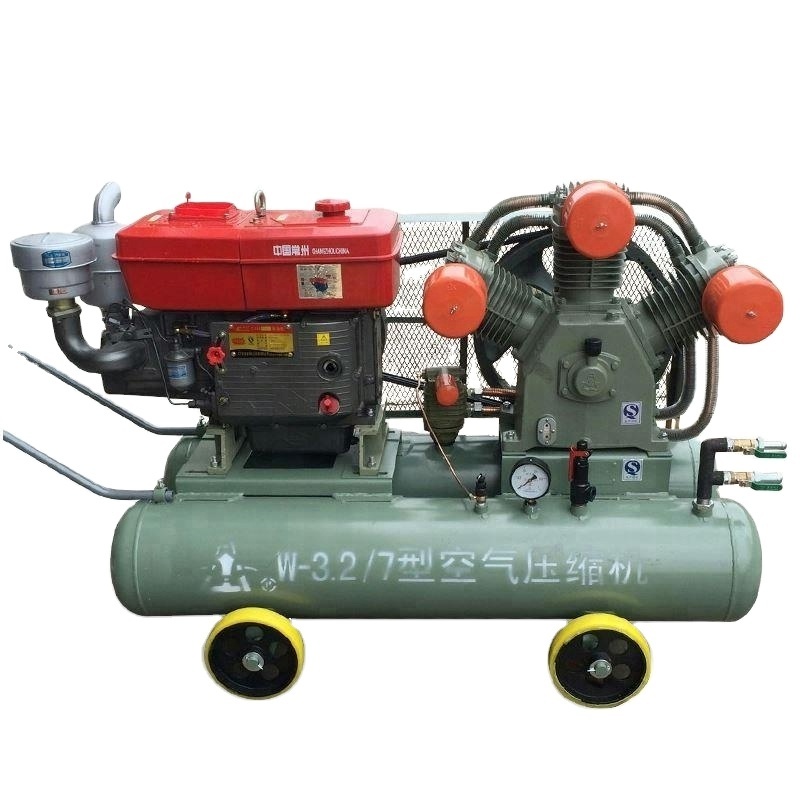

HOT PRICE!3.2m3/min 114cfm air cooled diesel engine air compressor to drill
Technical parameters of w series piston air compressor
| Model |
Exhaust pressure
(mpa) |
Capacity
(m³/min) |
Cylinder
(Diamm*Qty) |
Diesel engine/motor
(kw/hp) |
Dimension
(cm) |
Weight
(kg) |
||
| l | w | h | ||||||
| W-1.8/5 | 0.5 | 1.8 | 100*3 | S1100 | 140 | 70 | 100 | 320 |
| W-2/5 | 0.5 | 2 | 115*3 | S1100 | 165 | 81 | 105 | 450 |
| W-2.6/5 | 0.5 | 2.6 | 115*3 | S1110 | 165 | 81 | 105 | 490 |
| W-2.8/5 | 0.5 | 2.8 | 115*3 | S1115 | 178 | 87 | 124 | 550 |
| W-2.8/5-GD | 0.5 | 2.8 | 115*3 | 15KW/20HP | 178 | 87 | 124 | 550 |
| W-3/5 | 0.5 | 3 | 125*3 | S1115 | 180 | 90 | 130 | 600 |
| 2V-3.5/5 | 0.5 | 3.5 | 115*4 | S1125 | 180 | 95 | 130 | 650 |
| 2V-3.5/5-D | 0.5 | 3.5 | 115*3 | 18.5KW/25HP | 180 | 95 | 130 | 650 |
| 2V-4/5 | 0.5 | 4 | 120*4 | S1125 | 180 | 95 | 130 | 700 |
| 2V-4/5-D | 0.5 | 4 | 120*4 | 18.5KW/25HP 22KW/30HP | 180 | 95 | 130 | 700 |
| W-1.8/7 | 0.7 | 1.8 | 100*3 | S1100 | 165 | 81 | 105 | 450 |
| W-1.8/7-D | 0.7 | 1.8 | 100*3 | 11KW/15HP | 165 | 81 | 105 | 450 |
| W-2.6/7 | 0.7 | 2.6 | 125*3 | S1115 | 178 | 87 | 124 | 480 |
| W-2.6/7-D | 0.7 | 2.6 | 125*3 | 15KW/20HP | 178 | 87 | 124 | 480 |
| W-3.2/7 | 0.7 | 3.2 | 125*3 | S1125 | 196 | 90 | 125 | 550 |
| W-3.2/7-D | 0.7 | 3.2 | 125*3 | 18.5KW/25HP | 196 | 90 | 125 | 550 |
| W-3.2/7-ZD | 0.7 | 3.2 | 125*3 | 18.5KW/25HP | 196 | 90 | 125 | 550 |
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
