Quick Details
-
Model Number:
-
DLE30, DLE30
-
Quantity:
-
1 pcs
-
Tool Supplies:
-
Assembled class
-
RC Parts & Accs:
-
Engines
-
For Vehicle Type:
-
Airplanes
-
Remote Control Peripherals/Devices:
-
Motor
-
Material:
-
Metal
-
Shipment:
-
express/air/sea
-
MOQ:
-
2 Set
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
China
-
Brand Name:
-
DLE, DLE
-
Model Number:
-
DLE30, DLE30
-
Quantity:
-
1 pcs
-
Tool Supplies:
-
Assembled class
-
RC Parts & Accs:
-
Engines
-
For Vehicle Type:
-
Airplanes
-
Remote Control Peripherals/Devices:
-
Motor
-
Material:
-
Metal
-
Shipment:
-
express/air/sea
-
MOQ:
-
2 Set
Original DLE30 30CC DLE Gasoline / Petrol Engine
Details Images
Details Images
Product Paramenters
Product Paramenters

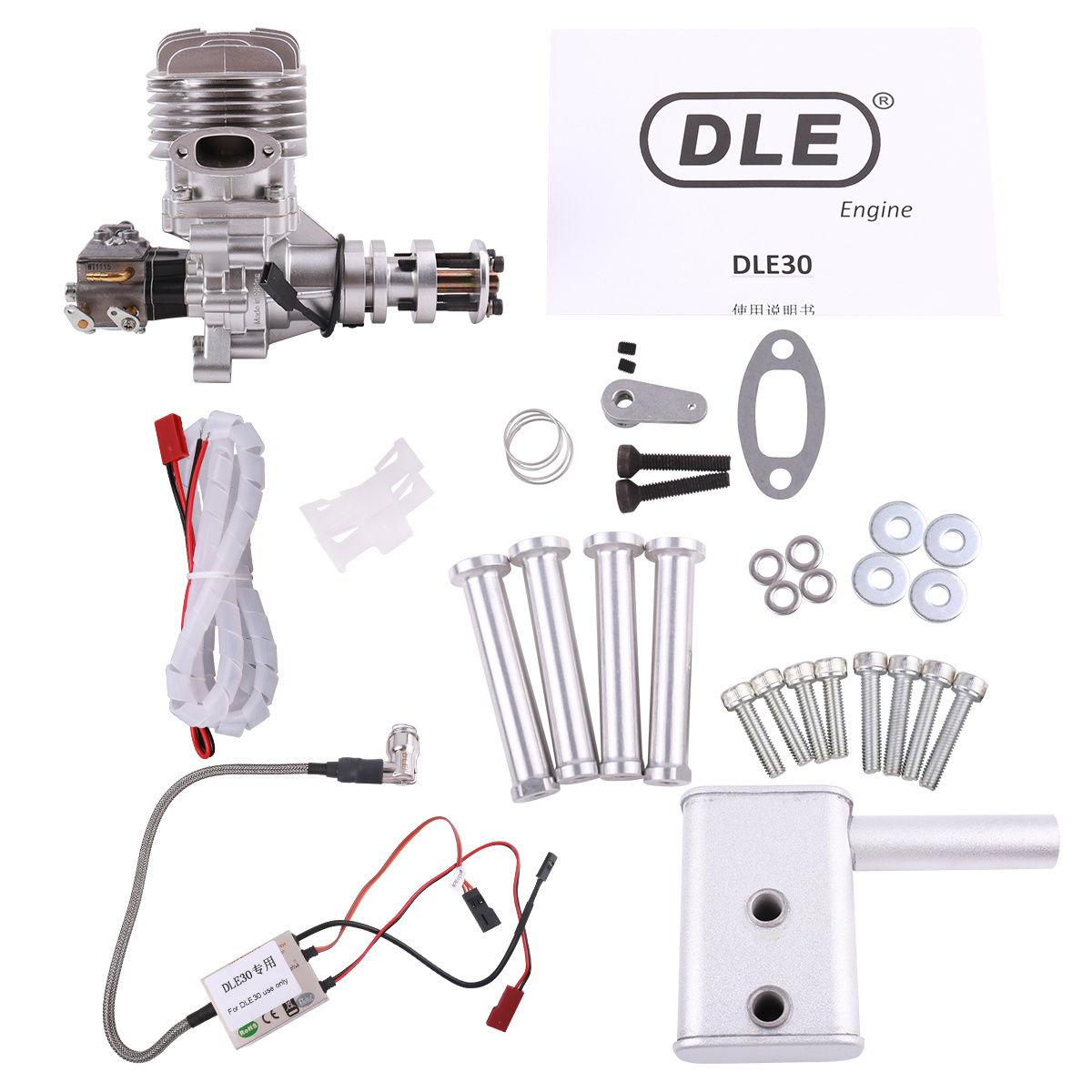

Packing list:
DLE engine * 1
DLE electronic igniter set (CDI) * 1
Carburetor * 1
Engine aluminum column nail set * 1
Exhaust pipe group * 1
NOTE:
1. Please carefully check the propeller, engine frame and other relevant parts before use to ensure that the screws and nuts are not loose. Screw thread glue (E.g : LOCTITTE 242) is used to fix the screws and nuts during installation.
2. If the engine is to be run in or tested on the test bench, a damping device must be installed, otherwise some parts of the
engine may be damaged. It is best to install the engine on the aircraft for running in. When the engine is running, no one is
allowed to be in front of the propeller rotation plane to avoid injury.
Parameter:
* Displacement: 30.5 cm³
* Bore: 1.42 in (36 mm)
* Stroke: 1.18 in (30 mm)
* Weight: 2.4 lb (1.10 kg)
* RPM Range: 1,600-8,500
* Output: 3.7 hp @ 8,500 rpm
* Requires: Gasoline, oil, ignition battery & propeller
* Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension &
mounting template
* Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
DLE engine * 1
DLE electronic igniter set (CDI) * 1
Carburetor * 1
Engine aluminum column nail set * 1
Exhaust pipe group * 1
NOTE:
1. Please carefully check the propeller, engine frame and other relevant parts before use to ensure that the screws and nuts are not loose. Screw thread glue (E.g : LOCTITTE 242) is used to fix the screws and nuts during installation.
2. If the engine is to be run in or tested on the test bench, a damping device must be installed, otherwise some parts of the
engine may be damaged. It is best to install the engine on the aircraft for running in. When the engine is running, no one is
allowed to be in front of the propeller rotation plane to avoid injury.
Parameter:
* Displacement: 30.5 cm³
* Bore: 1.42 in (36 mm)
* Stroke: 1.18 in (30 mm)
* Weight: 2.4 lb (1.10 kg)
* RPM Range: 1,600-8,500
* Output: 3.7 hp @ 8,500 rpm
* Requires: Gasoline, oil, ignition battery & propeller
* Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension &
mounting template
* Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
* Suggested Break-in Prop: 18x8
Technical Data:
* Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulator.)
* Compression Ratio: 7.6:1
* Gasoline/Oil Mix: 30:1
* Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
* Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)
* Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulator.)
* Compression Ratio: 7.6:1
* Gasoline/Oil Mix: 30:1
* Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
* Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)
