Quick Details
-
Productivity:
-
49/26M³/H
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Zoomlion
-
Weight:
-
4500KG
-
Dimension(L*W*H):
-
5300X2020X2550mm
-
Hopper Capacity:
-
500L
-
Strokes:
-
26/13.8 Min-1
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Peru, Russia, Australia, Colombia, Bangladesh, Ukraine, Nigeria
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE, ISO
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
100m
-
Max. horizontal conveying distance:
-
400m
-
Productivity:
-
49/26M³/H
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Zoomlion
-
Weight:
-
4500KG
-
Dimension(L*W*H):
-
5300X2020X2550mm
-
Hopper Capacity:
-
500L
-
Strokes:
-
26/13.8 Min-1
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Peru, Russia, Australia, Colombia, Bangladesh, Ukraine, Nigeria
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE, ISO

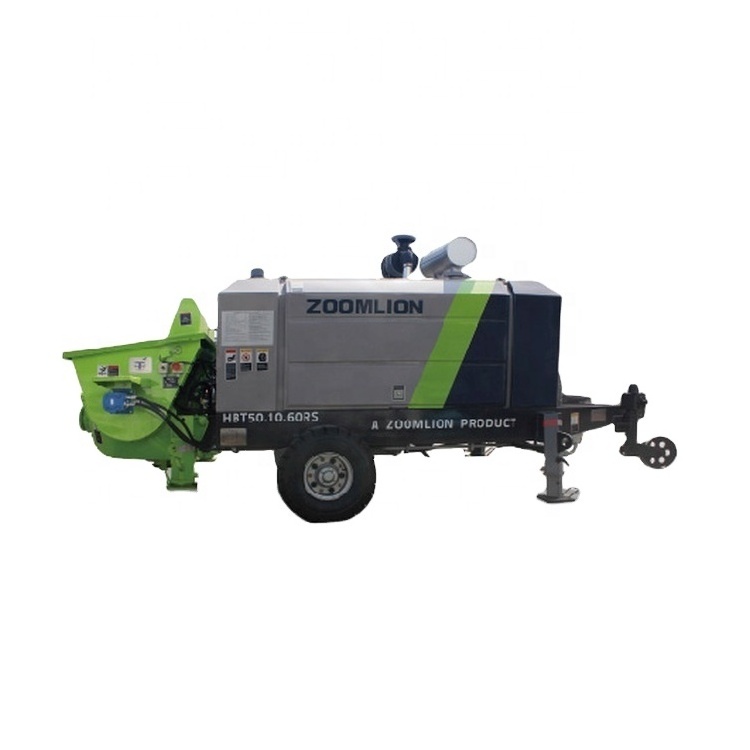

Zoomlion Trailer Pumps HBT50.10.60RS Concrete Pump
C ontact way
Features
- Intelligent control system: Self-diagnosis and protection function make the machine more stable and reliable. Configuration of the touch screen, real-time monitoring of operating conditions, view the fault records and maintenance skills.
- Dual pump dual-circuit hydraulic system: Pumping hydraulic system and distribution hydraulic system cooperate with each other and do not interfere with each other. This design is easy to realize the logic control and make the best performance of the hydraulic system.
- Flexible reversing technique: Monitoring the whole pumping conditions. Automatically adjust the various mechanism to achieve smooth pumping of concrete without impact, improve the pumping efficiency, and extend parts’lives.
- Adaptive variable power technology: According to the concrete conditions and pumping conditions, the engine can always work at the best load rate, to ensure that it works at the economic fuel consumption level.
Parameters
| Model | HBT50.10.60RS | |
|---|---|---|
| Drive power | KW | 60 |
| Max.Theoretical Output | m 3 /h | 49/26 |
| Max.Theoretical Concrete Output Pressure | bar | 50/100 |
| Concrete Cylinder (diameter×stroke) | mm | 180×1250 |
| Strokes | Min-1 | 26/13.8 |
| Hopper Capacity | L | 500 |
| Filling Height | mm | 1335 |
