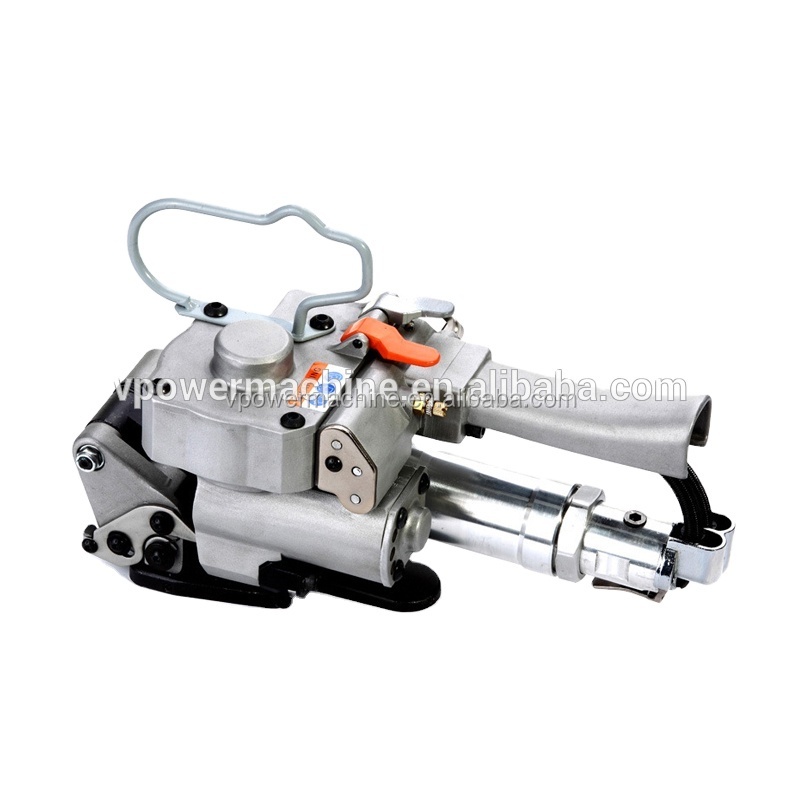

Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton
Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton

Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton

FOB Reference Price: Get Latest Price
≥1 Sets
US $230
≥10 Sets
US $200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
0
Place of Origin:
Guangdong, China
Brand Name:
Yuming
Dimension(L*W*H):
280*160*180 mm
Weight:
3.8 KG
Certification:
CE Certificate
Product Name:
pneumatic packing machine
Strap material:
PP,PET strap
Strap width:
13,16,19 mm
Strap thickness:
0.5-1.5 mm
Welding time:
2-5 s
Air pressure:
0.5-0.8 mpa
Max Tension:
2800 N
Sealing:
Friction weld

Quick Details

Packaging Type:
Belt, Cartons, case
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Driven Type:
Pneumatic
Voltage:
0
Place of Origin:
Guangdong, China
Brand Name:
Yuming
Dimension(L*W*H):
280*160*180 mm
Weight:
3.8 KG
Certification:
CE Certificate
Product Name:
pneumatic packing machine
Strap material:
PP,PET strap
Strap width:
13,16,19 mm
Strap thickness:
0.5-1.5 mm
Welding time:
2-5 s
Air pressure:
0.5-0.8 mpa
Max Tension:
2800 N
Sealing:
Friction weld

Portable Pneumatic Operated Pet Belt Strapping Packing Machine Plastic Strapping Tool For Carton

Product Description

Pneumatic packing machine is a kind of friction welding packing machine.

The two overlapping plastic straps combine together with the heat generated by the friction movement so-called “Friction Welding”.


In so many types of pneumatic packing machines, we strongly recommend you our high efficiency and low-cost packing machine.

Reasons as below:

Easy to operate.
Can adjust and control the friction time and tensioning power.
Can set automatic packing direction.
The tightening, welding, and cutting are controlled by one button.
Low failure rate.

Easy to carry.
Small and light, easy to carry.
Not limited to working field

Good looking.
Shipped with high packing standard.
Apply to the more wide range of packing belt compared with other similar products.

Below are the parameters of our pneumatic packing machine:

Model A19 A25
Weight 3.8kg 3.8KG
Max Tightening force 2800 N 2800N
Welding force Friction heat fusion Friction heat fusion
Applicable belt width
13-19mm 19-25mm
Applicable belt thickness 0.5-1.5mm 0.5-1.5mm
Action mode Pneumatic tightening Pneumatic tightening
Applicable packing belt PET, PP PET, PP
Pressure source 0.5-0.8 MPA 0.5-0.8 MPA
Dimension 280*160*180 mm 280*160*180 mm

Detailed Images

Packaging & Shipping

Package: Special Export Plywood Case Packing


Warranty: One year from the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by the un-properly operation, then the Seller would offer the new parts for free.
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Documents: We can provide Telex release bill of loading or Original Bill of loading, Certificate of the original. Other documents can be provided according to your requirement.

Our Services

About after-sale service of our machinery
Usually, machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by the machine itself design defect, we are responsible for it. We can provide free charge breaking part. If machine breaking caused by the human factor, the user need take responsibility for it, we will provide technical support.

About goods shipping of our machinery
We have long time working shipping forwarder. We can do our best to send the machine to your port safe and sound. If you need, we can help you do customs clearance.

About payment term of our machinery
Currently, in order to protect you and our rights. Both us in safe, hope we can do business in a safe way.
L/C(>20000USD),Western Union,T/T(Bank transfer),Paypal,Alibaba
which one are you want, we can discuss it.

About online Service of our machinery
24 hours online to solve any problem. Your email will be replied within 12 hours. Your satisfaction is our pursuit. Sincerely hope our cooperation.

Training:
1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to the customer.
3. We offer training video and machine operation video to the customer.
4. We offer remote control service if the customer does not know how to operate and use the machine.

Installation:
We will dispatch engineers to carry out installation and debug of the equipment in buyer's place if requested. The cost for International Double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials. The machine will be guaranteed in one year, in the guaranteed year, any spare parts are broken due to supplier’s quality issue, the spare parts will be supplied free for the customer, customer needs to pay the freight cost if the parcel weight more than 500gram.
