Quick Details
-
Model Number:
-
rubber hose
-
Color:
-
Green
-
Working Pressure:
-
210bar
-
Working Temperature:
-
-40℃ to +100℃
-
Features:
-
High Pressure
-
Transporting Medium:
-
Water, Oil, Air
-
Product Name:
-
Chemical Delivery Hose
-
Inner Diameter:
-
19mm-152mm
-
Bursting Pressure:
-
40bar
-
Used For:
-
delivery 98%of all chemicalsolvents and corrosive liquids
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ET
-
Model Number:
-
rubber hose
-
Color:
-
Green
-
Working Pressure:
-
210bar
-
Working Temperature:
-
-40℃ to +100℃
-
Features:
-
High Pressure
-
Transporting Medium:
-
Water, Oil, Air
-
Product Name:
-
Chemical Delivery Hose
-
Inner Diameter:
-
19mm-152mm
-
Bursting Pressure:
-
40bar
-
Used For:
-
delivery 98%of all chemicalsolvents and corrosive liquids

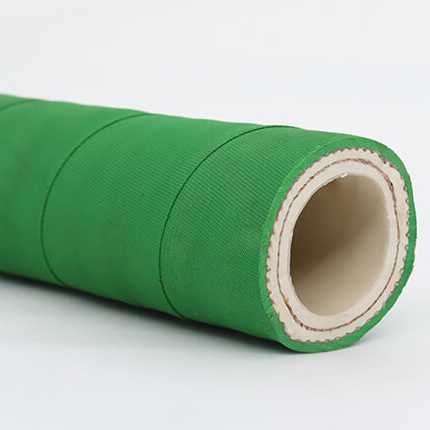

Chemical Delivery Hose Construction:
Tube: White,Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM
Reinforcement: Multi plies high strength synthetic fabric
Cover: EPDM resistant to chemical, weathering and ozone, blue, green wrapped
Chemical Delivery Hose Application:
Designed for in-plant or tank truck use to transfer chemicals and solvents.
Chemical Delivery Hose Temperature: -40℃ to + 100℃
Chemical Delivery Hose Characteristic:
Handle 98% of the chemical/acid
Heat,weather,abrasion resistant EPDM cover
Corrugated cover make hose more flexible
Specification:
| ID | OD | WP | BP | Weight | Length | |||
| in | mm | mm | bar | psi | bar | psi | kg/m | m |
| 3/4" | 19 | 30 | 10 | 150 | 40 | 600 | 0.57 | 60 |
| 1" | 25 | 36 | 10 | 150 | 40 | 600 | 0.71 | 60 |
| 1-1/4" | 32 | 43.4 | 10 | 150 | 40 | 600 | 0.95 | 60 |
| 1-1/2" | 38 | 51 | 10 | 150 | 40 | 600 | 1.2 | 60 |
| 2" | 51 | 64 | 10 | 150 | 40 | 600 | 1.55 | 60 |
| 2-1/2" | 64 | 77.8 | 10 | 150 | 40 | 600 | 2.17 | 60 |
| 3" | 76 | 89.8 | 10 | 150 | 40 | 600 | 2.54 | 60 |
| 4" | 102 | 116.6 | 10 | 150 | 40 | 600 | 3.44 | 60 |
| 6" | 152 | 167.4 | 10 | 150 | 40 | 600 | 5.41 | 30 |
