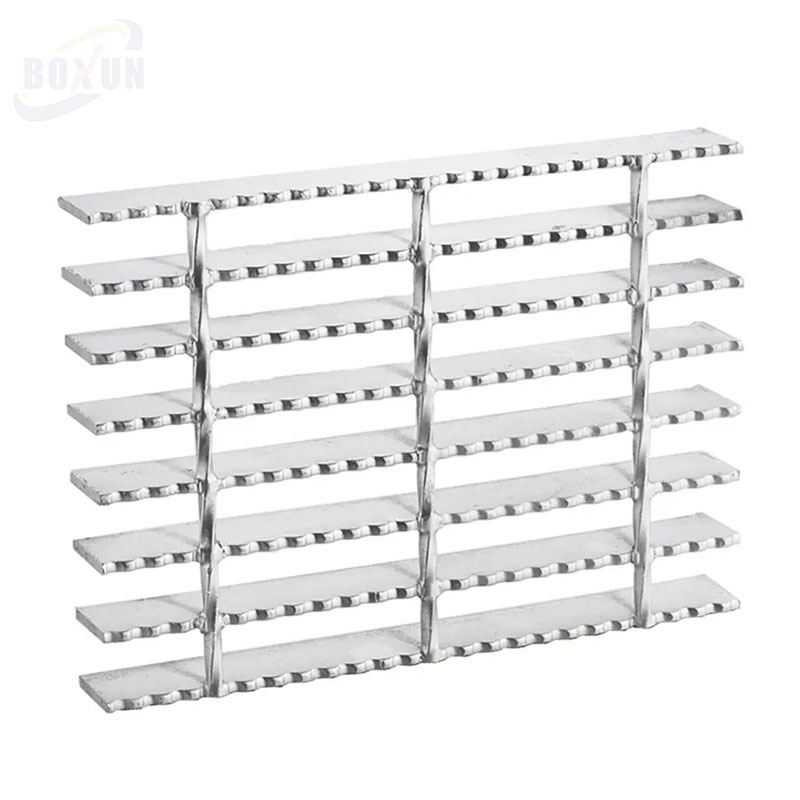

Steel grating/Bar grating are welded by flat bar and square twist bar, or fully welded by flat bar. It can be used for a variety of applications. Bar grating is an ideal choice for projects ranging from trenches and stair treads to decking and steel flooring. Used as metal grates, bar grating covers open areas in flooring that require light, liquid, air, heat, and sound to pass between flooring levels.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
building material
-
Design Style:
-
Industrial
-
Weight:
-
10
-
Chemical Composition:
-
metal
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
boxun
-
Model Number:
-
BX-0011, Steel Grating
-
Product name:
-
trench drains cover
-
Material:
-
Carbon Steel
-
Bearing Bar Type:
-
plain
-
Bearing Bar Size:
-
20x3 , 30x3mm...
-
Surface treatment:
-
Hot Dipped Galvanized, Gi
-
Weld Structure:
-
Steel Bar and Cross Bar
-
Weld Way:
-
Pressure Welded
-
Usage:
-
Anti-Slip Places
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Free spare parts, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
building material
-
Design Style:
-
Industrial
-
Weight:
-
10
-
Chemical Composition:
-
metal
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
boxun
-
Model Number:
-
BX-0011, Steel Grating
-
Product name:
-
trench drains cover
-
Material:
-
Carbon Steel
-
Bearing Bar Type:
-
plain
-
Bearing Bar Size:
-
20x3 , 30x3mm...
-
Surface treatment:
-
Hot Dipped Galvanized, Gi
-
Weld Structure:
-
Steel Bar and Cross Bar
-
Weld Way:
-
Pressure Welded
-
Usage:
-
Anti-Slip Places
Product Paramenters
Galvanized Steel Grating Walkway Platform
|
Common Specification of Steel Grating
|
|
|
|
Remarks: Special Material, High Zinc Coating and New Style can be Customized.
|
|
|
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc |
|
|
Bearing Bar
(Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
|
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
|
|
Packing
|
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
|
|
Payment Term
|
T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance
|
|
|
Product Name: Metal Serrated Steel Grid Grating To Construction Building Material
|
|
|
Product Description
Specification
|
item
|
STEEL GRATING
|
|
Warranty
|
More than 5 years
|
|
After-sale Service
|
Online technical support, Onsite Inspection, Free spare parts
|
|
Alloy Or Not
|
Non-Alloy
|
|
Secondary Or Not
|
Non-secondary
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Others
|
|
Application
|
Workshop
|
|
Design Style
|
Industrial
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
BOXUN
|
|
Model Number
|
GRATING-001
|
|
|
|
