Quick Details
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TENGDA
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
14000*1000*29000(mm)
-
Power (kW):
-
22
-
Weight:
-
2881 KG
-
Item:
-
3d filament extruder machine line manufacturer
-
Screw diamter:
-
35mm; 50mm
-
Output:
-
15 - 30 kg/h
-
Material:
-
38CrMoAlA
-
Diameter of wire:
-
1.5 mm - 3mm
-
Motor brand:
-
German "SIEMENS" Brand
-
Inverter brand:
-
Switzerland "ABB" brand
-
Temperature controller brand:
-
Japan "OMRON" brand
-
Electric switch brand:
-
France "Schneider" brand
-
Name:
-
3d filament extrusion line
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28
-
Screw diameter (mm):
-
50 mm
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TENGDA
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
14000*1000*29000(mm)
-
Power (kW):
-
22
-
Weight:
-
2881 KG
-
Item:
-
3d filament extruder machine line manufacturer
-
Screw diamter:
-
35mm; 50mm
-
Output:
-
15 - 30 kg/h
-
Material:
-
38CrMoAlA
-
Diameter of wire:
-
1.5 mm - 3mm
-
Motor brand:
-
German "SIEMENS" Brand
-
Inverter brand:
-
Switzerland "ABB" brand
-
Temperature controller brand:
-
Japan "OMRON" brand
-
Electric switch brand:
-
France "Schneider" brand
-
Name:
-
3d filament extrusion line

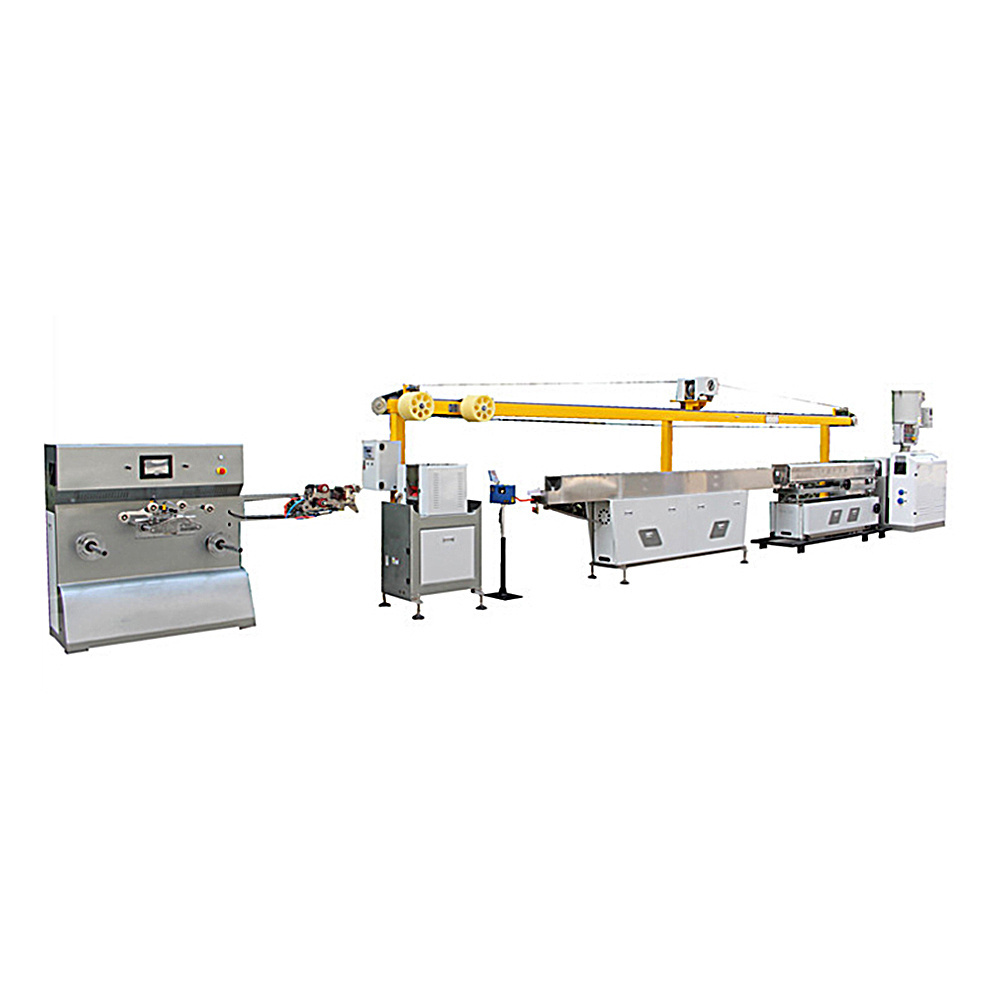

Machine supply scope:
1. Drying Hopper and Vacuum loader
2. Single screw extruder
3. Extruder mould
4. Heating water tank
5. Cooling water tank
6. Bidirectional Infra Red ray diameter Gauging device / Laser gauge
7. Traction Machine / Haul Off machine
8. Horizontal Wire storage support
9. Double station Automatic Winding machine
!!! Send us your inquiry and place your order within one month, we will present you:
(1). Color mixing machine
(2). Vacuum package machine
Color mixing machine Vacuum package machine
Drying Hopper Vacuum loader
Single screw extruder Extruder mould
Electrical control system
Bidirectional Infra Red ray diameter
Gauging device / Laser gauge Traction Machine / Haul Off machine
Double station Automatic Winding machine
Main Features of
3d filament extrusion line 3d filament extruder abs filament extruder for 3d printing
:
1. The output improving is 10%-20% better than the same type in the market.
2. The energy saving is 20%-40% better than the same type in the market.
3. The total cooling, just need to connect the inlet and outlet water, reduce customer's installation cost, beautiful appearance and easy maintenance.
4. Our products have passed environment protection.
5. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Finished Products of
3d filament extrusion line 3d filament extruder abs filament extruder for 3d printing
:
