Quick Details
-
Color:
-
Customer Requirements
-
Paving Speed:
-
0-16m/min
Quick Details
-
Weight:
-
8275
-
Place of Origin:
-
Hubei, China
-
Application:
-
Straight Road Paving
-
Color:
-
Customer Requirements
-
Paving Speed:
-
0-16m/min

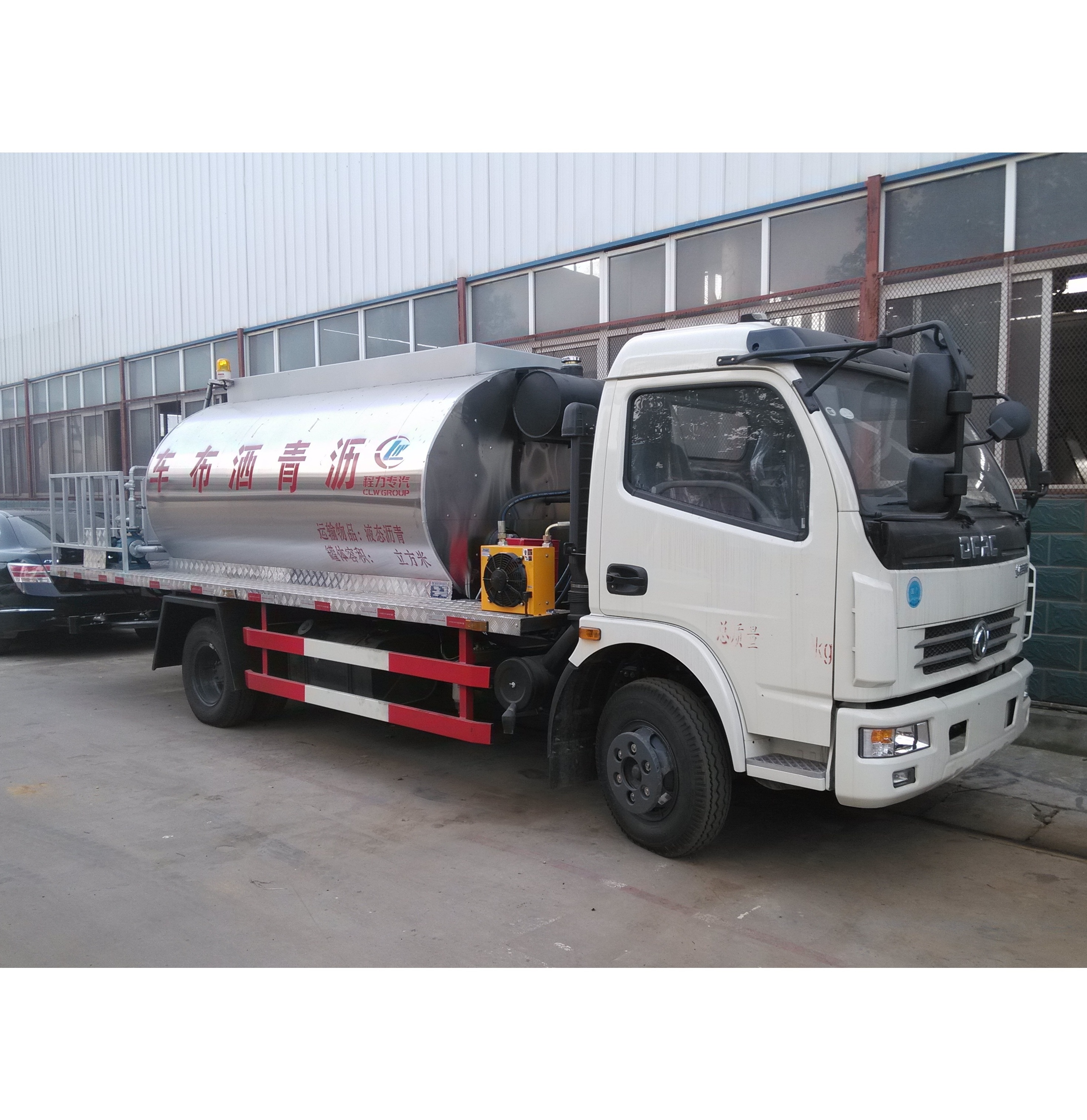

Specifications
System:
1. Manual/automatic control of spray volume and working width. Each nozzle can be controlled separately, and the determinant nozzle can be freely combined to realize the width of any adjustable spray. Sprinkle control can be performed in the cab or on the rear platform.
2. The automatic control system can measure the speed of the vehicle and automatically calculate the number of revolutions of the asphalt pump according to the amount of the supplied cloth and the width of the spray and the type of asphalt, and then automatically adjust the number of pumps of the asphalt pump through the system.
3. vehicle-mounted rapid heating system (10-15 ° C / h), can improve heating efficiency and reduce construction assistance time to ensure the temperature of the cloth;
4. Punching nozzle This system can blow the remaining asphalt of the nozzle through the diesel and high-pressure air to prevent the asphalt from freezing in the nozzle and improve the service life of the nozzle.
Personalized equipment:
1. Parts of the key parts of the vehicle (hydraulic pump, hydraulic motor, asphalt pump, proportional valve, automatic control system), etc.,
adopt internationally best components
to effectively extend the service life;
2. using the
international advanced high-viscosity asphalt pump
, the external asphalt can be pumped into the tank to achieve "self-priming", and the asphalt in the tank can also be pumped out;
3. the heating system uses
imported Italian burners
, with automatic ignition and temperature control;
4. All heat pipes have
heat insulation layers
on the outside to reduce the heat dissipation while avoiding burns to the operators;
5. The asphalt spray bar
adopts a three-stage folding structure
. Double or multiple spray can be realized by moving the spreader bar up and down. By moving the spreader bar left and right, the spread range can be expanded, and the obstacle can be effectively avoided.
6. There is a
sedimentation drain tank inside the asphalt tank
, and it is equipped with liquid level display, alarm and safety device.
Cheng Li Special Automobile Co., Ltd which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It is famous for special trucks for virescence, environment cleanness, oil, chemical industry and pressure vessel. Our company cooperates with famous chassis manufacturers, such as DONGFENG, FAW, SINO TRUCK, ISUZU, FOTON, JAC, JMC and etc. It is located in Suizhou, the native placeof ShenNong, the hometown of BianZhong and the City of Special truck.
1. OEM Ability:can produce according to your demand, the material, the size, the color and the logo is optional for you.
2. Good Quality and wararnty :
a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
b. we offer 1 year after –sale service for all customer.
3. Good Service: 0086-15171509939 24-hour hotline and email.
4. Fast Delivery:10-20 working days after payment, safe and quick delivery.
Q1. How about quality of your factory quality ?
A: All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed SGS inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
