Quick Details
-
Brand Name:
-
XINGYE
-
Motor Power:
-
12KW
-
Charging Capacity:
-
0.45 M3
-
Reclaiming capacity:
-
0.45 M3
-
Speed of Mixing Drum:
-
15 r/min
-
Water Supply Mode:
-
water pump motor, Water Pump
-
Discharge Way:
-
Self-falling unloading
-
Outline Dimension:
-
4*2.35*5.05 m
-
Weight (KG):
-
2500 kg
-
Product name:
-

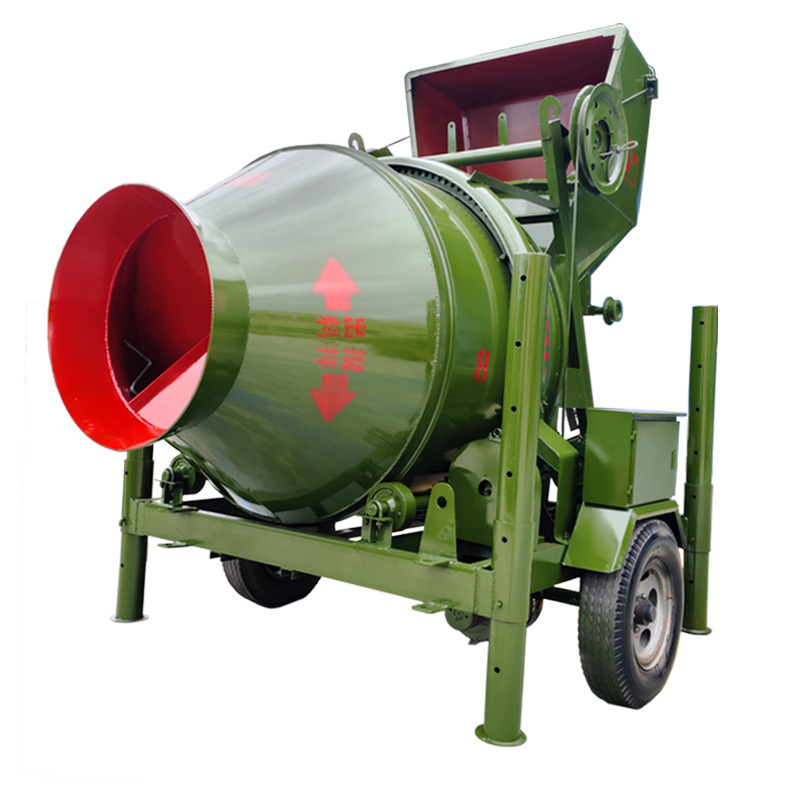

2 yard concrete mixer
-
Power type:
-
Electric Motor
-
Keywords:
-
450Lconcrete Mixer
-
Application:
-
Construction Site
-
Feature:
-
Working Efficiency
-
Function:
-
Mixing Sand Stone
-
Capacity:
-
20-25m3/h
-
Advantage:
-
High Productivity
Quick Details
-
Mixing Power:
-
7.5KW
-
Productivity:
-
20 m3/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XINGYE
-
Motor Power:
-
12KW
-
Charging Capacity:
-
0.45 M3
-
Reclaiming capacity:
-
0.45 M3
-
Speed of Mixing Drum:
-
15 r/min
-
Water Supply Mode:
-
water pump motor, Water Pump
-
Discharge Way:
-
Self-falling unloading
-
Outline Dimension:
-
4*2.35*5.05 m
-
Weight (KG):
-
2500 kg
-
Product name:
-
2 yard concrete mixer
-
Power type:
-
Electric Motor
-
Keywords:
-
450Lconcrete Mixer
-
Application:
-
Construction Site
-
Feature:
-
Working Efficiency
-
Function:
-
Mixing Sand Stone
-
Capacity:
-
20-25m3/h
-
Advantage:
-
High Productivity
YOU MAY LIKE
Product Description
Specification
|
Item
|
|
JZC350
|
JZC400
|
JZC450
|
JZC500
|
JZC750
|
|
|
work performance
|
Output capacity |
350L
|
400L
|
450L
|
500L
|
750L
|
|
|
|
Feed capacity
|
560L
|
640L
|
720L
|
800L
|
1200L
|
|
|
|
Maximum productivity
|
10-14 m3/h
|
14~18 m3/h
|
18~20 m3/h
|
18~20 m3/h
|
20~25 m3/h
|
|
|
|
Stirring drum speed
|
14r/min
|
14r/min
|
14r/min
|
13r/min
|
13r/min
|
|
|
|
Aggregate Maximum Particle Size
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
|
|
|
Water supply accuracy
|
<=2%
|
<=2%
|
<=2%
|
<=2%
|
<=2%
|
|
|
Motor
|
Stirring motor
|
4.5kw
|
4.5kw
|
7.5kw
|
7.5kw
|
15kw
|
|
|
|
lift motor
|
4.5kw
|
4.5kw
|
7.5kw
|
7.5kw
|
7.5kw
|
|
|
|
water pump motor
|
0.75kw
|
0.75kw
|
0.75kw
|
0.75kw
|
1.1kw
|
|
|
Total weight
|
|
1970kg
|
2200kg
|
2450kg
|
3000kg
|
4200kg
|
|
