Quick Details
-
Brand Name:
-
Lunyee
-
Model Number:
-
Nema42
-
Product Name:
-

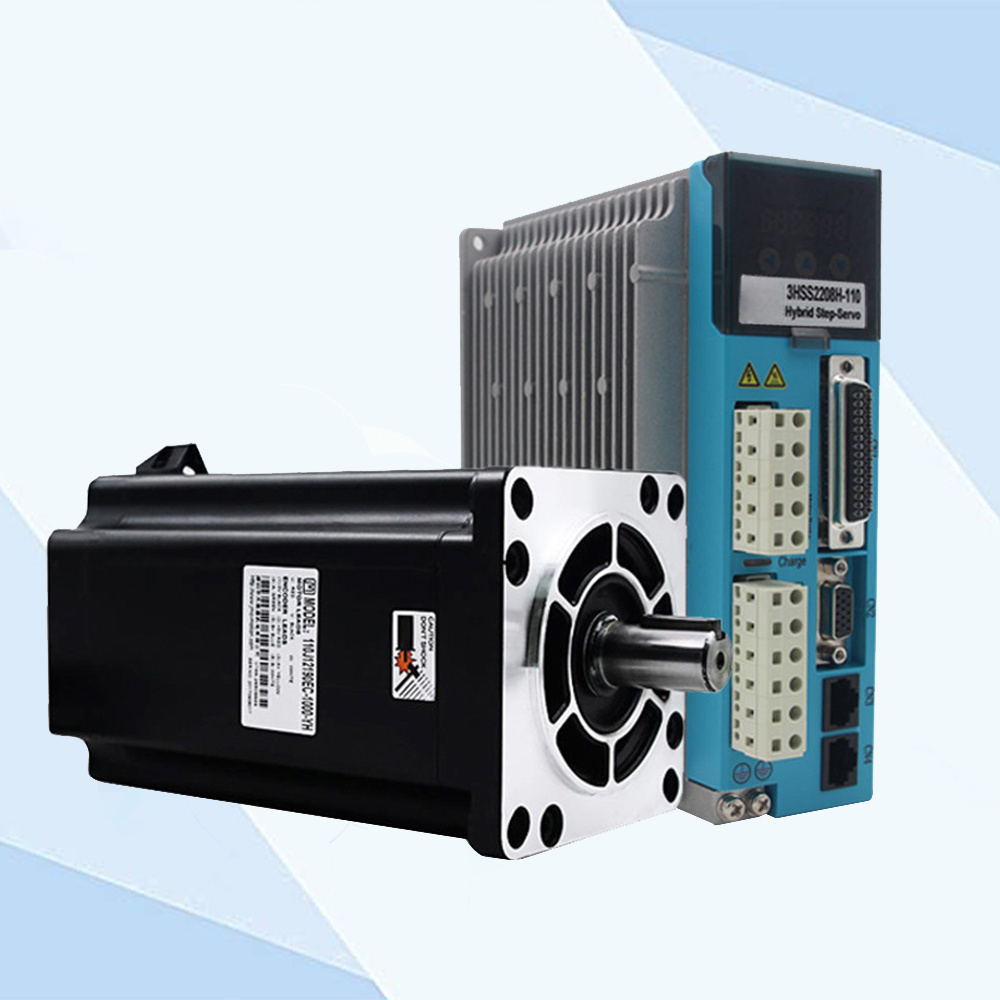

NEMA42 closed loop series
-
Steep Angle:
-
1.8°
-
Current:
-
6.3A
-
Resistance:
-
0.5±10%
-
Inductance:
-
1.8mH± 20%
-
Holding Torque:
-
12.0Nm/16.0Nm/20.0Nm
-
Motor length:
-
153/190/220mm
-
Encoder Resolution:
-
1000PPR
-
Output Shaft Diameter:
-
19MM
-
Application:
-
Automatic Product
Quick Details
-
Phase:
-
2
-
Type:
-
Hybrid
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Model Number:
-
Nema42
-
Product Name:
-
NEMA42 closed loop series
-
Steep Angle:
-
1.8°
-
Current:
-
6.3A
-
Resistance:
-
0.5±10%
-
Inductance:
-
1.8mH± 20%
-
Holding Torque:
-
12.0Nm/16.0Nm/20.0Nm
-
Motor length:
-
153/190/220mm
-
Encoder Resolution:
-
1000PPR
-
Output Shaft Diameter:
-
19MM
-
Application:
-
Automatic Product
Products Description
Features:
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load,lower temperature rising.
4. Over-current, over-voltage and position ultra difference protection function.
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load,lower temperature rising.
4. Over-current, over-voltage and position ultra difference protection function.
Application fileds
Product Details
|
Input Voltage
|
|
180~250VAC
|
|
|
Continuous Current Output
|
|
4.0A
|
|
|
Maximum Input Current
|
|
200K
|
|
|
Signal Input Current
|
|
7-20mA(10mA Typical)
|
|
|
Default Communication Rate
|
|
57.6Kbps
|
|
|
Protections
|
|
*Over current peak value 12A ±10%
*Over voltage value 400VDC *The range of over position error can be set by the front panel or HISU |
|
|
Overall Dimensions(mm)
|
|
140*70*56
|
|
|
Weight
|
|
Approximate 1500g
|
|
|
Environment Specifications
|
Environment
|
Avoid dust, oil fog and corrosive gasses
|
|
|
|
Operating Temperature
|
0~70℃
|
|
|
|
Storage Temperature
|
-20℃~+65℃
|
|
|
|
Humidity
|
40~90%RH
|
|
|
|
Cooling Method
|
Natural cooling or forced air cooling
|
|
Related Products
Can be matched with precision planetary gearbox and worm gearbox;
It can be adapted to Nema17 23 24 34 42;
Speed ratios are 1:5 10 15 20 25 30 35 40 45 50 60 70.
It can be adapted to Nema17 23 24 34 42;
Speed ratios are 1:5 10 15 20 25 30 35 40 45 50 60 70.
Package&Shipping(Choose 1 from 2)
1.Inner Packing:
Waterproof packing with cling film and cardboard surrounded.Each case is lined with foam plastics in order to protect the goods against press.
We promise the products must be well protected against dampness, moisture, rust and shock.
We promise the products must be well protected against dampness, moisture, rust and shock.
2.We can provide air, sea, land transportation, and you can also choose express, DHL, TNT, UPS, Fedex, etc.
As per the clients requirements.
As per the clients requirements.
