Quick Details
-
Brick size:
-
400*100*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZCJK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3000*2200*2900mm
-
Weight (KG):
-
4500 kg
-
name:
-
QTY4-20A block making machine
-
cycle time:
-
20s
-
power:
-
24.95kw
-
weight:
-
4.5T
-
pallet size:
-
1020*550*20mm
-
Container required:
-
1*40HQ
-
vibrating force:
-
68kn
-
production of Standard brick:
-
26pcs/mould
-
production of Hollow brick:
-
4pcs/mould
-
production of Paving brick:
-
16pcs/mould
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
sand,cement,fly coal,ash,concrete,dry slag,boiler slag
-
Production Capacity (Pieces/8 hours):
-
41600pcs/8hours, 6400pcs/day(8inches hollow), 25000pcs/day(paving brick)
-
Brick size:
-
400*100*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZCJK
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3000*2200*2900mm
-
Weight (KG):
-
4500 kg
-
name:
-
QTY4-20A block making machine
-
cycle time:
-
20s
-
power:
-
24.95kw
-
weight:
-
4.5T
-
pallet size:
-
1020*550*20mm
-
Container required:
-
1*40HQ
-
vibrating force:
-
68kn
-
production of Standard brick:
-
26pcs/mould
-
production of Hollow brick:
-
4pcs/mould
-
production of Paving brick:
-
16pcs/mould

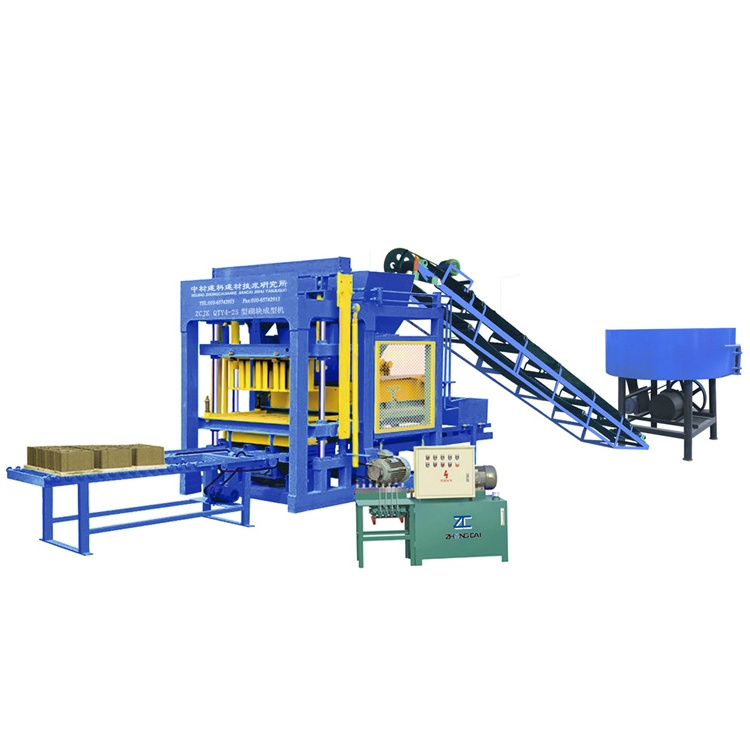

ZCJK QTY4-20A Hydraulic pressure automatic block making machine
| Floor area |
Stacking room: 2650m² Office: 50m² Raw material Room: 400m² Operating room: 200m² |
| Average Power consumption | 20kw |
| Average water consumption | 5T |
| Manpower request | 6 people |
| Environmental protection | Conforms to the environmental protection standard |
Technical parameter:
|
Production capacity |
Standard brick 240*115*53mm 26pcs/mould Hollow brick 240*115*90mm 4pcs/mould Paver brick 400*200*200mm 16pcs/mould |
|
One hour output |
Standard brick 240*115*53mm 5200pcs/per hour Hollow brick 240*115*90mm 800pcs/per hour Paver brick 400*200*200mm 2880pcs/per hour |
|
Shift output |
Standard brick 240*115*53mm 41600pcs/8 hours Hollow brick 240*115*90mm 6400pcs/8 hours Paver brick 400*200*200mm 23040pcs/8 hours |
Euipment Superiority
1. Multiple choice :
QTY 4-20A block making machine can produce Solid Brick, Hollow Block, Porous Brick, Perforated Brick, Paving Brick, Curbstone, Tiles, etc.
2 . M anpower saving :
With operating control, automatic pallet conveyance, automatic leading-out and hydraulic molding, save manpower.
3. Durable design :
It is solid and durable for its four guiding columns and patent lengthening sleeve guide.
4. Practical structure :
The forced mold synchronous structure gives the products perfect shape and high strength. And the stable demolding process ensures the higher output of finished products.
ZCJK Professional packaging & Shipping service
* when the brick making machine is ready to be shipped out, our company will package it very care fu lly. Also we promise there will be no damage when the brick making machine arrive at the port.
Container loading in ZCJK Beijing Factory:
Delivering & shipping to home and abroad:
ZCJK Block Machine on the way to customer:
Engineer Service to overseas
Engineer in Russia, Algeria, Zambia, Bangladesh
