Quick Details
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XINGLI BEIHAI
-
Model Number:
-
Acoustic Panel
-
Density:
-
0.25~0.85g/cm3
-
Non Combustion Property::
-
A1 Lever Fireproof
-
Pore Size::
-
5~10mm
-
Moisture Absorption::
-
0.00%
-
Sound insulation(20mm thickness):
-
20~40db
-
Size:
-
Customizable Size
-
Feature:
-
Outdoor Noise Barrier
-
Packing:
-
Carton
-
Delivery Time:
-
15-20 days
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XINGLI BEIHAI
-
Model Number:
-
Acoustic Panel
-
Density:
-
0.25~0.85g/cm3
-
Non Combustion Property::
-
A1 Lever Fireproof
-
Pore Size::
-
5~10mm
-
Moisture Absorption::
-
0.00%
-
Sound insulation(20mm thickness):
-
20~40db
-
Size:
-
Customizable Size
-
Feature:
-
Outdoor Noise Barrier
-
Packing:
-
Carton
-
Delivery Time:
-
15-20 days
Products Description
Product Details

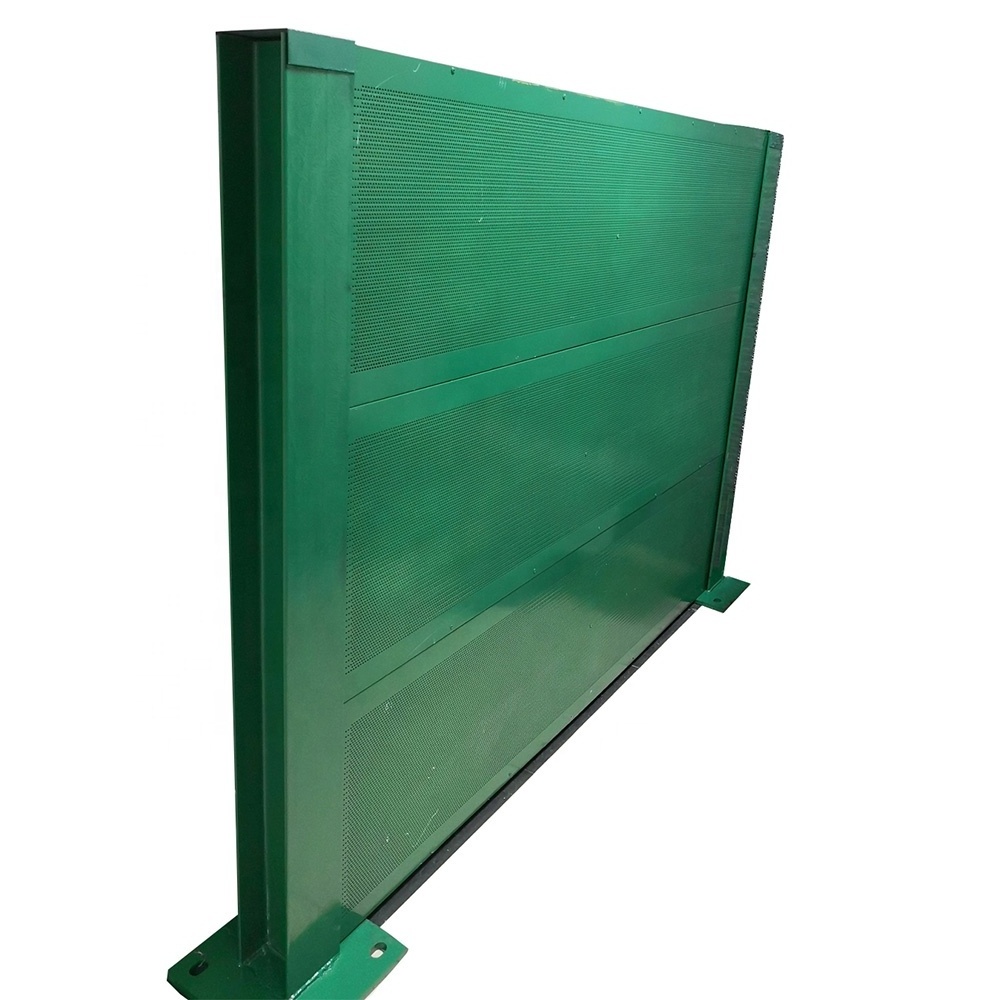

Noise Barriers/sound barriers Specifications:
* Material: Stainless steel sheet, mild carbon steel sheet, aluminum steel sheet, galvanized sheet.
* Metal plate Thickness: 0.5mm-1.2mm.
* Barrier forming thickness: 80mm, 100mm, etc.
* Panel thickness: 4-20cm(as per request)
* Panel size: Length: 2.0-3.0m/piece. Height: 0.5m-1.0m/piece
* Popular size: 2500x500x80mm, 2500x500x100mm, 2000x500x50mm etc.
* Hole type: Round hole and louver.
* Barrier type: Top arc noise barrier wall, big arc noise barrier wall, knuckling noise barrier wall, top
H post used for support noise barriers/sound barriers
Suggest size for h post:
surface treatment: galvanized and pvc coated
* 100X100X6X8mm
* 125X125X6.5X9mm
* 150X150X7X10mm
* 175X175X7.5X11mm
* 200X200X8X12mm
Noise Barrier/sound barriers Features
Easy to install. Modular design, flexible, quick and easy installation and removal.
High sound absorption. Especially good noise reduction effect.
High-intensity: The structure design is based on different climate conditions and wind load. Sheet is punched on the full automatic production line to increase the intensity.
Weather resistance.Galvanized or stainless steel noise barrier can resist to the weather, corrosion and acid.
Durable and long life. It has various materials and different surface treatment, it is long life and durable.
Colorful. Variety colors and shapes can be chosen.
* Material: Stainless steel sheet, mild carbon steel sheet, aluminum steel sheet, galvanized sheet.
* Metal plate Thickness: 0.5mm-1.2mm.
* Barrier forming thickness: 80mm, 100mm, etc.
* Panel thickness: 4-20cm(as per request)
* Panel size: Length: 2.0-3.0m/piece. Height: 0.5m-1.0m/piece
* Popular size: 2500x500x80mm, 2500x500x100mm, 2000x500x50mm etc.
* Hole type: Round hole and louver.
* Barrier type: Top arc noise barrier wall, big arc noise barrier wall, knuckling noise barrier wall, top
knuckling noise barrier, vertical noise barrier wall.
H post used for support noise barriers/sound barriers
Suggest size for h post:
surface treatment: galvanized and pvc coated
* 100X100X6X8mm
* 125X125X6.5X9mm
* 150X150X7X10mm
* 175X175X7.5X11mm
* 200X200X8X12mm
Noise Barrier/sound barriers Features
Easy to install. Modular design, flexible, quick and easy installation and removal.
High sound absorption. Especially good noise reduction effect.
High-intensity: The structure design is based on different climate conditions and wind load. Sheet is punched on the full automatic production line to increase the intensity.
Weather resistance.Galvanized or stainless steel noise barrier can resist to the weather, corrosion and acid.
Durable and long life. It has various materials and different surface treatment, it is long life and durable.
Colorful. Variety colors and shapes can be chosen.
