Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
as requested
-
Dimension(L*W*H):
-
8200*2600*3020mm
-
Weight (KG):
-
15000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hydraulic Unit Brand::
-
Calyca,Taiwan
-
PLC Brand::
-
German Siemens PLC
-
Applied Products::
-
Grass blocks, Slope blocks, Interlocking Blocks
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Crushed Stone, Sand, Cement, Dust and Coal Fly Ash, Slag
-
Production Capacity (Pieces/8 hours):
-
100 sets/Month
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
as requested
-
Dimension(L*W*H):
-
8200*2600*3020mm
-
Weight (KG):
-
15000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hydraulic Unit Brand::
-
Calyca,Taiwan
-
PLC Brand::
-
German Siemens PLC
-
Applied Products::
-
Grass blocks, Slope blocks, Interlocking Blocks

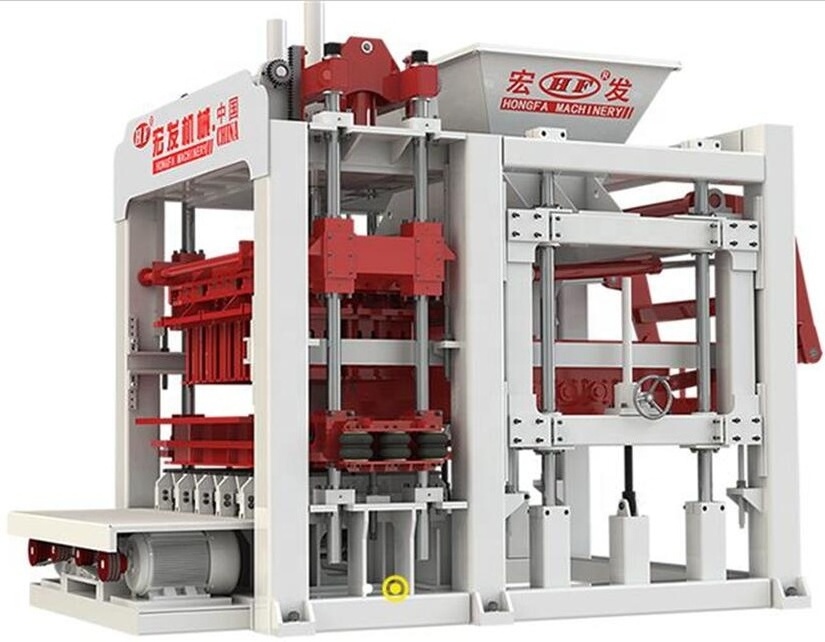

The Advantages of Brick or Block Making Machines (Hongfa QT12-15D)
Combining with German Yitong High-tech and Hongfa Technology, this advanced QT12-15D brick concrete making machine is superior to other block production machine in these aspects:
● Featuring the best configuration
- Taiwan Calyca Hydraulic
- Imported German Siemens PLC
● Passing the strict quality inspection
- CE/SGS/ISO9001:2000
● With great performance and power consumption
- Increase 20% capacity vs others model
- Extremely proving the stability
- Effectively to solve the problems of system halted, holdup, weak pressure, motors burning and consumption in the block machine industry.
Features of Block Making Machine for Concrete Brick Production
● High Density
Designed with particular storage and description material system which insure the feeding accuracy and avoiding the effect of exterior material, this QT12-15D black making machine features high density.
Adopting frequency conversion motors and synchronization vibration to insure the products making average, and the vibration frequency can be adjusted randomly according to plastic character of various of raw materials.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, as well as diagnosis.
Low frequency in feeding material and high frequency vibration makes the different materials to have an optimal vibration way.
The control system is equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it only needs a trained person for operation rather than a professional one.
The Brick Making Process and the Main Control Systems of QT12-15D Block Making Machine
Available Raw Material to Make Block with This Brick Making Machine
Available Block or Brick Products
Only for your reference, these blocks or bricks can be customized according to customers' requirements.
With over 20 years' experience in R&D and manufacturing block making machine, fully-automatic brick production line, concrete pipe making machine, concrete mixing plant, as well as light weight EPS wall panel machine, Hongfa Heavy Machinery Co., Ltd. have gained much reputation by its high quality products which meet the ISO9001-2000 standard and with the certificates of CE, SGS, BV etc.
Owning over 67 patents (including invention and practical patents) and gaining "China Well-Known Trademark" honor, Hongfa Machinery is dedicated to providing high quality EPS light wight wall panel making machines to our customers.
Pre-Sales Service
* Free inquiry and consulting support.
* Analyze customers' needs and market prospect.
* View our Factory.
* Provide perfect solution to set up a factory to perform wall panel making machine operation.
After-Sales Service
* One year guarantee for wall panel making machine.
* Engineers available to service machinery overseas with EPS sandwich lightweight wall panel machine installation, training and maintenance.
* Supply free consultation and parts services.
Packing
Naked packing or stretch film packing or according to your requirements.
Delivery
Within 20~30 days after receiving deposit.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: 20~30 days after receipt of deposit and molds confirmation from Buyer.
Q: What is the product guarantee period ?
A: One year after installation finished at buyer's factory.
Q: What is your terms of payment ?
A: Payment:30% as down deposit by T/T ,70% as the balance paid before loading
Note: The video EPS lightweight sandwich panel making machine is available for you, please contact me now.
