Quick Details
-
Brand Name:
-
FangYuan
-
Motor Power:
-
6.1KW
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14R/MIN
-
Water Supply Mode:
-
Water Pump Motor
-
Working Cycle Period:
-
concrete mixer
-
Discharge Way:
-
concrete mixer
-
Outline Dimension:
-
2810*2140*3070
-
Weight (KG):
-
1450 kg
-
Product name:
-
portable self loading concrete mixer machine
-
Weight:
-
1950kg
-
Type:
-
JZC350
-
Brand:
-
FYG
-
Charging volume (L):
-
560L
-
Discharging volume (L):
-
350L
-
Rev of drum:
-
14R/MIN
-
Outline dimension L*W*H:
-
2810*2140*3070
-
Discharge height:
-
1250 mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Mixing Power:
-
5.5KW
-
Productivity:
-
10, 10-14m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FangYuan
-
Motor Power:
-
6.1KW
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14R/MIN
-
Water Supply Mode:
-
Water Pump Motor
-
Working Cycle Period:
-
concrete mixer
-
Discharge Way:
-
concrete mixer
-
Outline Dimension:
-
2810*2140*3070
-
Weight (KG):
-
1450 kg
-
Product name:
-
portable self loading concrete mixer machine
-
Weight:
-
1950kg
-
Type:
-
JZC350
-
Brand:
-
FYG
-
Charging volume (L):
-
560L
-
Discharging volume (L):
-
350L
-
Rev of drum:
-
14R/MIN
-
Outline dimension L*W*H:
-
2810*2140*3070
-
Discharge height:
-
1250 mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
Product Description

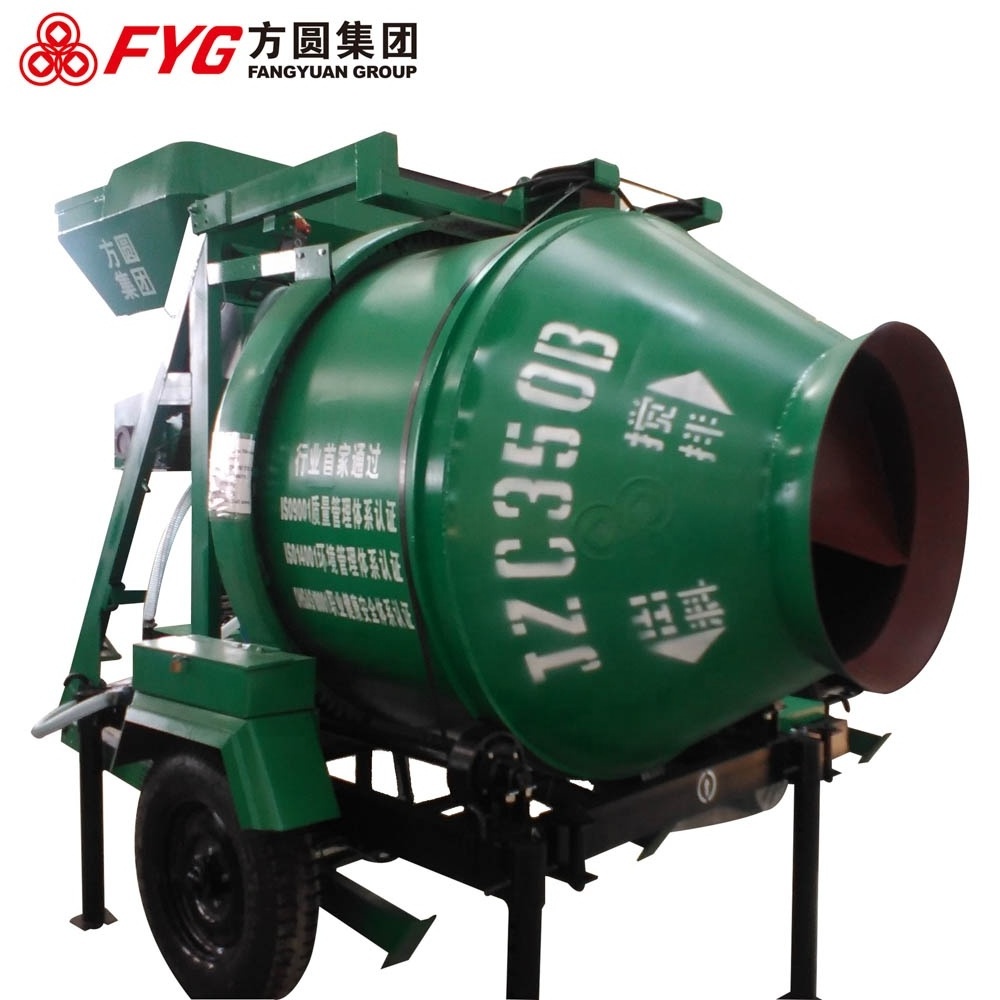

portable self loading concrete mixer machine
| Model | JZC350 | JZC350B | JZC500 | JZC750 |
|
Charging volume (L)
|
560 | 560 | 800 | 1200 |
| Discharging capacity (L) | 350 | 350 | 500 | 750 |
| Productivity(m3/h) | 10 | 10 | 18.2 | 22.5 |
| Rev of drum(r/min) | 14 | 14 | 15.7 | 13 |
|
Max size of aggregate(mm)
|
60 | 60 | 80 | 80 |
| Water-supply error | ≤2% | ≤2% | ≤2% | ≤2% |
| Discharge height(mm) | 1250 | 1250 | 1500 | 1800 |
| Mixing electromotor | Y132S-4,5.5kw | Y132S-4,5.5kw | Y160M-4,15kw | Y160L-4,15kw |
| Improve motor | YEZ112M-4-B5, 4.5kW | YEZ132S-4-B5,7.5kw | YEZ132S-4-B5,7.5kw | |
| Water pump electromotor | 40DWB-12-0.55kw | 40DWB-12-0.55kw | WB50-50-95-0.75kw | 65DWB-35-5- |
| 1.1kw | ||||
| Tire size | 6.00-16 | 6.00-16 | 7.50-16 | |
| Maximum towing speed (km/h) | 20 | 20 | 20 | |
| Outline dimension | 4.01×2.14×3.34 | 4.31×2.14×4.18 | 5.23×2.3×5.45 | 6.107×2.05×6.07 |
| L×B×H (m) | ||||
| Machine weight (kg) | 1450 | 1710 | 3150 | 4340 |
portable self loading concrete mixer machine
