Quick Details
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
1250*800*1150(mm)
-
Year:
-
2020
-
Power (kW):
-
2.2
-
Weight (KG):
-
500 KG
-
Model:
-
YX-SL160
-
Maximum roll distance(mm):
-
10mm
-
Single feed:
-
1KG-5KG
-
Power:
-
2.2KW
-
Roll speed pattern:
-
Constant speed (adjustable speed/double adjustable speed)
-
Bearing situation:
-
Insert bearing
-
Reducer casing:
-
planet-gear speed reducer
Quick Details
-
Diameter of Roll(mm):
-
160 mm, 160mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 18 rpm, 18r/min
-
Length of Roll(mm):
-
500 mm, 500mm
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
1250*800*1150(mm)
-
Year:
-
2020
-
Power (kW):
-
2.2
-
Weight (KG):
-
500 KG
-
Model:
-
YX-SL160
-
Maximum roll distance(mm):
-
10mm
-
Single feed:
-
1KG-5KG
-
Power:
-
2.2KW
-
Roll speed pattern:
-
Constant speed (adjustable speed/double adjustable speed)
-
Bearing situation:
-
Insert bearing
-
Reducer casing:
-
planet-gear speed reducer
Click here >>>> Get
more details on offers
!!!

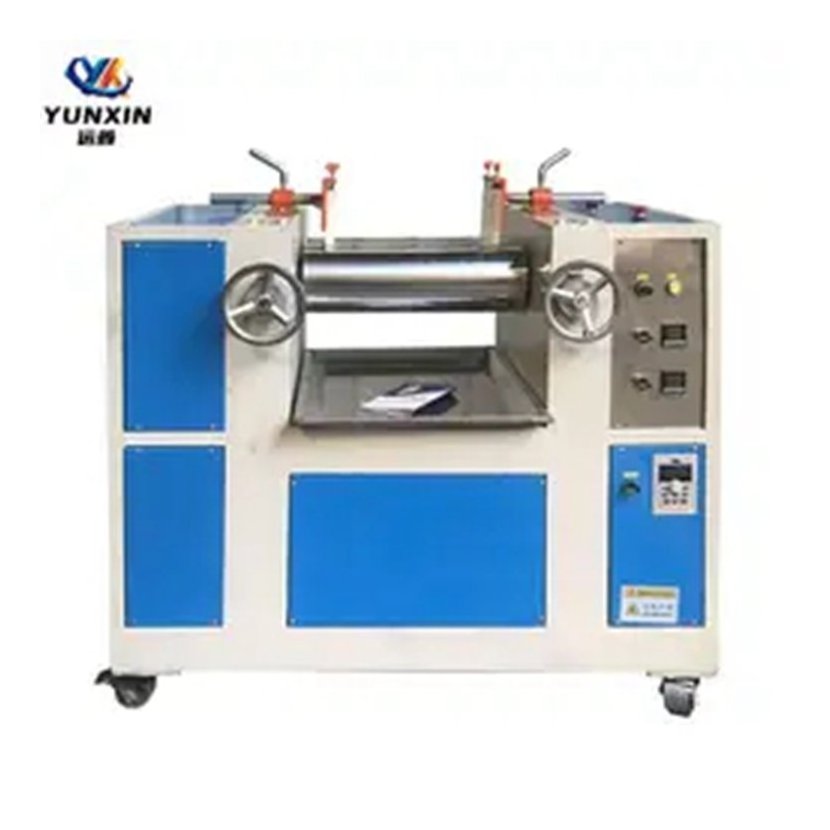

Product Description
NO1:
High hardness chrome-plated roller
roller is made of high strength steel, which is processed by quenching - outer circular
grinding - electroplating hard chromium - outer circular grinding - mirror polishing, so that it does not stick, does not
delamination, does not deformation, and never rust
grinding - electroplating hard chromium - outer circular grinding - mirror polishing, so that it does not stick, does not
delamination, does not deformation, and never rust
NO2:
The safety device can be touched to stop immediately
Multiple touch-type emergency stoppers to avoid employees being mistakenly brought into the roller during work
Multiple touch-type emergency stoppers to avoid employees being mistakenly brought into the roller during work
NO3:
Well-known brand parts
Imported high-quality steel to manufacture bidirectional plain bearings with high precision, low friction, can withstand radial and thrust loads at the same time, after layer treatment more wear-resistant, service life can reach more than 30 years
Imported high-quality steel to manufacture bidirectional plain bearings with high precision, low friction, can withstand radial and thrust loads at the same time, after layer treatment more wear-resistant, service life can reach more than 30 years
Specification
|
Model
|
YX-SL160
|
|
Diameter of Roll(mm)
|
155mm
|
|
Length of Roll(mm)
|
500mm
|
|
Maximum roll distance(mm)
|
10mm
|
|
Single feed
|
1-5KG
|
|
Power
|
2.2KW
|
|
Rotation Speed of Front Roll(rpm)
|
18r/min
|
|
Roll speed pattern
|
Constant speed (adjustable speed/double adjustable speed)
|
|
Bearing situation
|
Insert bearing
|
|
Reducer casing
|
planet-gear speed reducer
|
|
Voltage
|
380V
|
|
Weight
|
~500KG
|
|
Dimension(L*W*H)
|
1250*800*1150mm
|
Packing & Delivery
Mass production, a large number of spot, manufacturers directly to all parts of the country, some exports to Southeast Asia,Europe, Africa and other parts of the world.
