Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
jkongmotor
-
Model Number:
-
bldc motor with gearbox
-
Torque:
-
customized
-
Product Name:
-

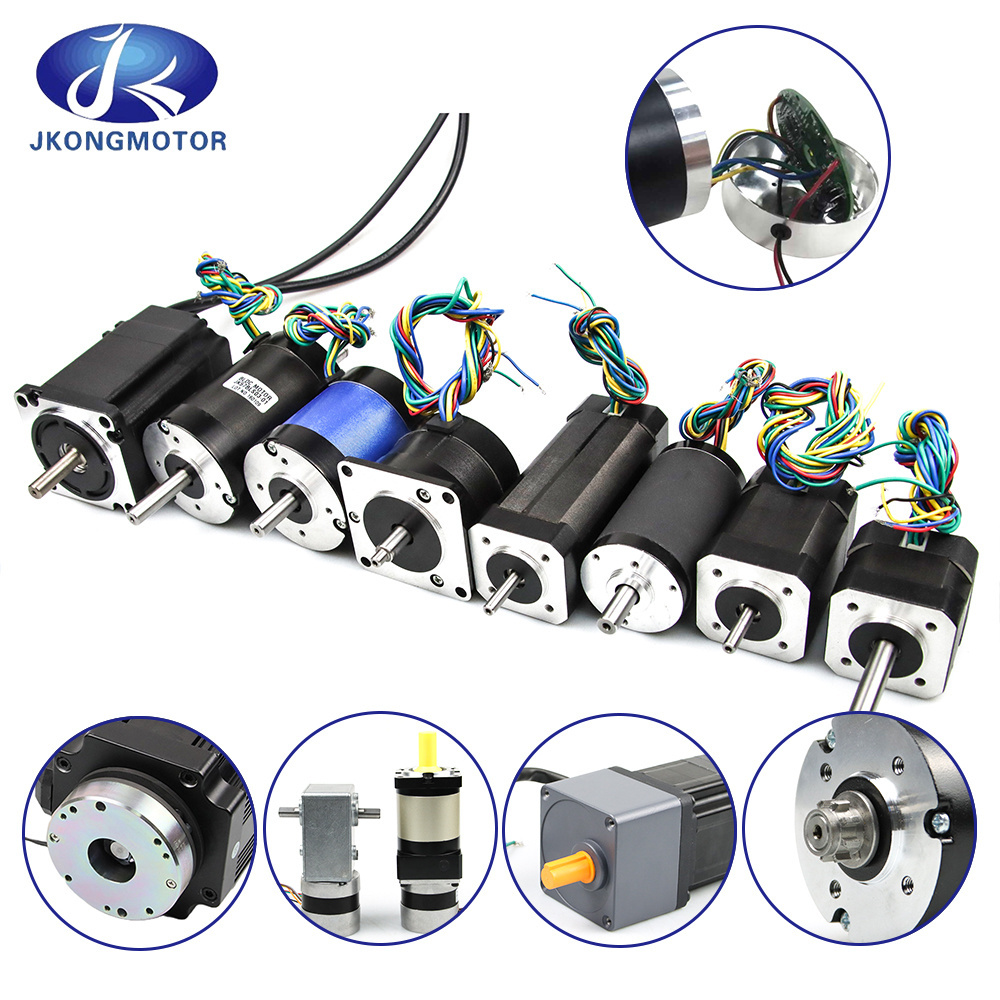

42mm to 130mm brushless dc motor
-
Product:
-
bldc motor with gearbox
-
Model Name:
-
bldc motor with brake
-
Voltage:
-
12v to 310v
-
Rated Speed:
-
customized
-
Rated Torque:
-
customized
-
Motor size:
-
42mm to 130mm
-
Output Power:
-
20w to 3500w
-
Certification:
-
CE, Rohs, Reach, ISO9001, ISO14001
Quick Details
-
Speed(RPM):
-
customized
-
Continuous Current(A):
-
customized
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
jkongmotor
-
Model Number:
-
bldc motor with gearbox
-
Torque:
-
customized
-
Product Name:
-
42mm to 130mm brushless dc motor
-
Product:
-
bldc motor with gearbox
-
Model Name:
-
bldc motor with brake
-
Voltage:
-
12v to 310v
-
Rated Speed:
-
customized
-
Rated Torque:
-
customized
-
Motor size:
-
42mm to 130mm
-
Output Power:
-
20w to 3500w
-
Certification:
-
CE, Rohs, Reach, ISO9001, ISO14001
Specification
Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W
Model Name: JK86BLS BLDC Motor
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m~2.1N.m
Rated Current: 3A~18A
Rated Power: 110W~1000W
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m~2.1N.m
Rated Current: 3A~18A
Rated Power: 110W~1000W
Customized Design: Customization accept, such as encoder, various gearbox, brake, or other parameters customer need.
|
Product Series
|
Poles No.
|
Rated Voltage
|
Rated Speed
|
Rated Torque
|
Rated Power
|
Motor Length
|
|
8
|
24v
|
4000rpm
|
0.0625~0.25N.m
|
26~105w
|
41~100mm
|
|
|
4
|
36v
|
4000rpm
|
0.055~0.44N.m
|
23~184w
|
37~107mm
|
|
|
8
|
48v
|
3000rpm
|
0.3~1.2N.m
|
94~377w
|
78~120mm
|
|
|
4
|
48v
|
3000rpm
|
0.35~1.4N.m
|
110~440w
|
78~138mm
|
|
|
8
|
48v
|
3000rpm
|
0.35~2.1N.m
|
110~660w
|
71~138.5mm
|
|
|
8
|
310v
|
3000rpm
|
1.65~6.6N.m
|
518~2073w
|
83~173mm
|
|
|
10
|
310v
|
3000rpm
|
2.39~11.94N.m
|
750~2500w
|
115~190mm
|
|
86mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|
||||||
|
Model
|
|
Model
|
|
|
|
|
||||||
|
Specification
|
Unit
|
JK86BLS58
|
JK86BLS71
|
JK86BLS84
|
JK86BLS98
|
JK86BLS125
|
||||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|
||||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|
||||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|
||||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|
||||||
|
Rated Torque
|
N.m
|
0.35
|
0.7
|
1.05
|
1.4
|
2.1
|
||||||
|
Rated Current
|
Amps
|
3
|
6.3
|
9
|
11.5
|
18
|
||||||
|
Rated Power
|
W
|
110
|
220
|
330
|
440
|
660
|
||||||
|
Peak Torque
|
N.m
|
1.05
|
2.1
|
3.15
|
4.2
|
6.3
|
||||||
|
Peak Current
|
Amps
|
9
|
19
|
27
|
35
|
54
|
||||||
|
Back E.M.F
|
V/Krpm
|
13.7
|
13
|
13.5
|
13.7
|
13.5
|
||||||
|
Torque Constant
|
N.m/A
|
0.13
|
0.12
|
0.13
|
0.13
|
0.13
|
||||||
|
Rotor Inertia
|
g.c㎡
|
400
|
800
|
1200
|
1600
|
2400
|
||||||
|
Body Length
|
mm
|
71
|
84.5
|
98
|
111.5
|
138.5
|
||||||
|
Weight
|
Kg
|
1.5
|
1.9
|
2.3
|
2.7
|
4
|
||||||
Above only for representative products, products of special request can be made according to the customer request.
80 / 86mm Planetary Gearbox Parameters:
|
Suitable brushless dc motor shaft
|
|
|
|
|||
|
Motor Shaft Pinion Specifications
|
|
|
|
|||
|
Module
|
1
|
|
|
|||
|
No. of teeth
|
12
|
13
|
22
|
|||
|
Pressure angle
|
20°
|
|
|
|||
|
Hole diameter
|
10 teeth pinion
|
Φ7H7
|
Φ8H7
|
|||
|
Reduction ratio
|
1/6.6 1/23 1/26 1/37 1/92 1/138
|
1/5.31 1/19 1/30 1/74 1/111
|
1/3.55 1/13 1/50
|
|||
|
Gearbox Specifications:
|
|
|
|
|
|
|
||||||
|
Reduction ratio
|
Exact reduction ratio
|
Rated tolerance torque
|
Max momentary tolerance torque
|
Efficiency
|
L (mm)
|
Weight (g)
|
||||||
|
1/3.55 1/5.31 1/6.6
|
1/3.55 1/5.31 1/6.6
|
8 N.m Max
|
12N.m
|
90%
|
55.7±0.5
|
1100
|
||||||
|
1/13 1/19 1/23
|
1/12.57 1/18.82 1/23.4
|
30 N.m Max
|
45N.m
|
81%
|
72.2±0.5
|
1500
|
||||||
|
1/26 1/30 1/37
|
1/26.05 1/30.08 1/37.4
|
60 N.m Max
|
90N.m
|
73%
|
72.2±0.5
|
1500
|
||||||
|
1/50 1/74 1/92 1/111 1/138
|
1/49.62 1/74.28 1/92.37 1/111.2 1/138.28
|
80 N.m Max
|
120N.m
|
66%
|
88.5±0.5
|
1880
|
||||||
Different Kinds of Planetary Gear Reducer for your reference
|
42mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK42BLS01
|
JK42BLS02
|
JK42BLS03
|
JK42BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
24
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
4000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.0625
|
0.125
|
0.185
|
0.25
|
|||||
|
Rated Current
|
Amps
|
1.8
|
3.3
|
4.8
|
6.3
|
|||||
|
Rated Power
|
W
|
26
|
52.5
|
77.5
|
105
|
|||||
|
Peak Torque
|
N.m
|
0.19
|
0.38
|
0.56
|
0.75
|
|||||
|
Peak Current
|
Amps
|
5.4
|
10.6
|
15.5
|
20
|
|||||
|
Back E.M.F
|
V/Krpm
|
4.1
|
4.2
|
4.3
|
4.3
|
|||||
|
Torque Constant
|
N.m/A
|
0.039
|
0.04
|
0.041
|
0.041
|
|||||
|
Rotor Inertia
|
g.c㎡
|
24
|
48
|
72
|
96
|
|||||
|
Body Length
|
mm
|
41
|
61
|
81
|
100
|
|||||
|
Weight
|
kg
|
0.3
|
0.45
|
0.65
|
0.8
|
|||||
|
57mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|
||||||
|
Model
|
|
Model
|
|
|
|
|
||||||
|
Specification
|
Unit
|
JK57BLS005
|
JK57BLS01
|
JK57BLS02
|
JK57BLS03
|
JK57BLS04
|
||||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|
||||||
|
Number Of Poles
|
Poles
|
4
|
|
|
|
|
||||||
|
Rated Voltage
|
VDC
|
36
|
|
|
|
|
||||||
|
Rated Speed
|
Rpm
|
4000
|
|
|
|
|
||||||
|
Rated Torque
|
N.m
|
0.055
|
0.11
|
0.22
|
0.33
|
0.44
|
||||||
|
Rated Current
|
Amps
|
1.2
|
2
|
3.6
|
5.3
|
6.8
|
||||||
|
Rated Power
|
W
|
23
|
46
|
92
|
138
|
184
|
||||||
|
Peak Torque
|
N.m
|
0.16
|
0.33
|
0.66
|
1
|
1.32
|
||||||
|
Peak Current
|
Amps
|
3.5
|
6.8
|
11.5
|
15.5
|
20.5
|
||||||
|
Back E.M.F
|
V/Krpm
|
7.8
|
7.7
|
7.4
|
7.3
|
7.1
|
||||||
|
Torque Constant
|
N.m/A
|
0.074
|
0.073
|
0.07
|
0.07
|
0.068
|
||||||
|
Rotor Inertia
|
g.c㎡
|
30
|
75
|
119
|
173
|
230
|
||||||
|
Body Length
|
mm
|
37
|
47
|
67
|
87
|
107
|
||||||
|
Weight
|
Kg
|
0.33
|
0.44
|
0.75
|
1
|
1.25
|
||||||
|
60mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK60BLS01
|
JK60BLS02
|
JK60BLS03
|
JK60BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.3
|
0.6
|
0.9
|
1.2
|
|||||
|
Rated Current
|
Amps
|
2.8
|
5.2
|
7.5
|
9.5
|
|||||
|
Rated Power
|
W
|
94
|
188
|
283
|
377
|
|||||
|
Peak Torque
|
N.m
|
0.9
|
1.8
|
2.7
|
3.6
|
|||||
|
Peak Current
|
Amps
|
8.4
|
15.6
|
22.5
|
28.5
|
|||||
|
Back E.M.F
|
V/Krpm
|
12.1
|
12.6
|
12.4
|
13.3
|
|||||
|
Torque Constant
|
N.m/A
|
0.116
|
0.12
|
0.118
|
0.127
|
|||||
|
Rotor Inertia
|
g.c㎡
|
0.24
|
0.48
|
0.72
|
0.96
|
|||||
|
Body Length
|
mm
|
78
|
99
|
120
|
141
|
|||||
|
Weight
|
Kg
|
0.85
|
1.25
|
1.65
|
2.05
|
|||||
|
80mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK80BLS01
|
JK80BLS02
|
JK80BLS03
|
JK80BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
4
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.35
|
0.7
|
1.05
|
1.4
|
|||||
|
Rated Current
|
Amps
|
3
|
5.5
|
8
|
10.5
|
|||||
|
Rated Power
|
W
|
110
|
220
|
330
|
440
|
|||||
|
Peak Torque
|
N.m
|
1.05
|
2.1
|
3.15
|
4.2
|
|||||
|
Peak Current
|
Amps
|
9
|
16.5
|
24
|
31.5
|
|||||
|
Back E.M.F
|
V/Krpm
|
13.5
|
13.3
|
13.1
|
13
|
|||||
|
Torque Constant
|
N.m/A
|
0.13
|
0.127
|
0.126
|
0.124
|
|||||
|
Rotor Inertia
|
g.c㎡
|
210
|
420
|
630
|
840
|
|||||
|
Body Length
|
mm
|
78
|
98
|
118
|
138
|
|||||
|
Weight
|
Kg
|
1.4
|
2
|
2.6
|
3.2
|
|||||
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
