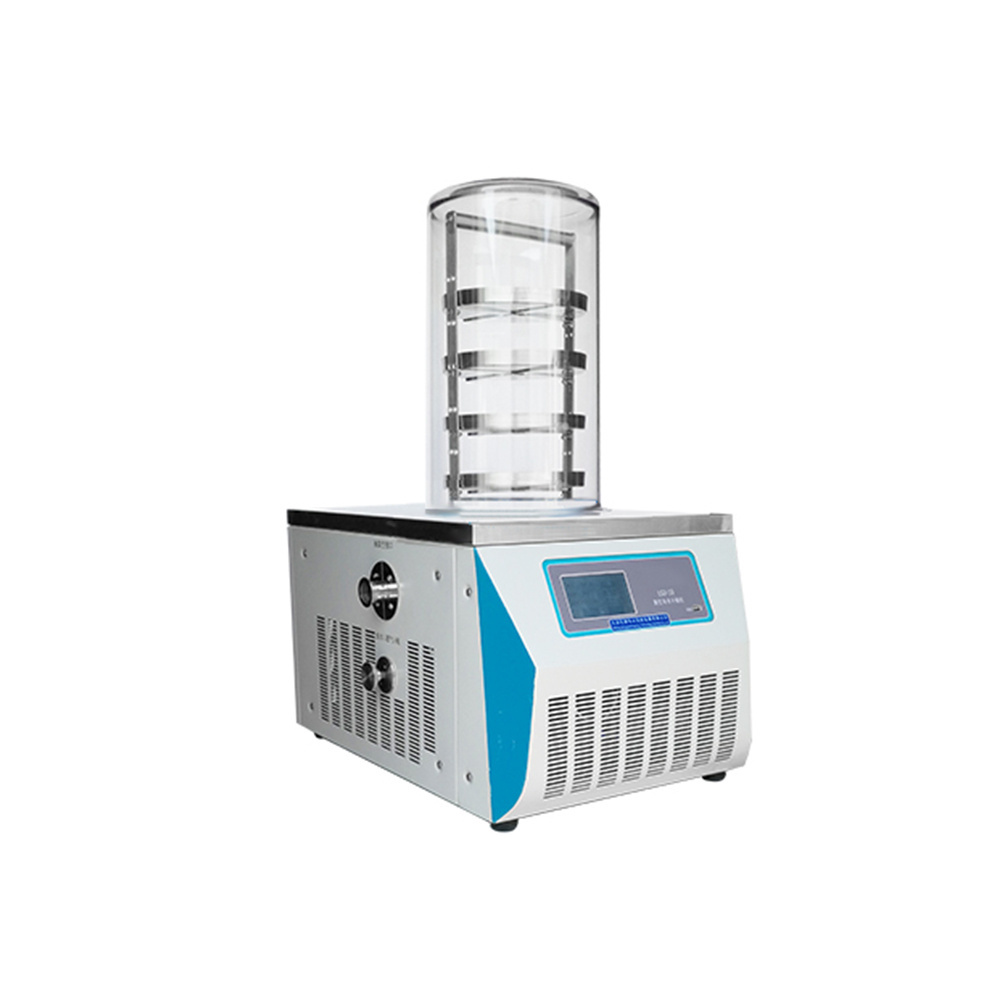

Mini Freeze Dryer lyophilizer lyophilic dryer LGJ-10A Lab Small Vacuum Freeze Dryer Machine Secadora congelacion de laborat

Mini Freeze Dryer lyophilizer lyophilic dryer LGJ-10A Lab Small Vacuum Freeze Dryer Machine Secadora congelacion de laborat

FOB Reference Price: Get Latest Price

≥1 Sets

US $1720

≥2 Sets

US $1690

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Nade

Power:: 0.97kw

Dimension(L*W*H):: 615*450*370mm

Weight (KG):: 41

Freeze drying area:: 0.12m^2

Material tray dia.:: Dia. 240mm

No. of tray:: 4pcs

Tray spacing:: 70mm

Cold trap dept and dia.:: 140mm,dia. 215mm

Cold trap temperature:: ≤-56℃,optional≤-80℃

Ice collecting capacity:: 3-4kg/24h

cooling mode:: wind cooled

Defrosting mode:: air cooled

Shipping capacity:: 1.2L(thickness 10mm)

Quick Details

Type:: Vacuum Drying Equipment

Drying Capacity (kg):: 4.8kg

Place of Origin:: China

Brand Name:: Nade

Power:: 0.97kw

Dimension(L*W*H):: 615*450*370mm

Weight (KG):: 41

Freeze drying area:: 0.12m^2

Material tray dia.:: Dia. 240mm

No. of tray:: 4pcs

Tray spacing:: 70mm

Cold trap dept and dia.:: 140mm,dia. 215mm

Cold trap temperature:: ≤-56℃,optional≤-80℃

Ice collecting capacity:: 3-4kg/24h

cooling mode:: wind cooled

Defrosting mode:: air cooled

Shipping capacity:: 1.2L(thickness 10mm)

■ All-in-one structure, small size, no external flange, easy to use, no leakage.

■All materials in contact with the product use inert materials to meet the requiremenls of the GLP.

■The cold trap and cxxisole are made of stainless steel, which is anti-corrosion and easy to dean.

■All stainless steel inflated/water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

Model

LGJ-10

LGJ-12/12S

LGJ-18/18S

Specificatioon

Unit

Standard

Top-press

Standard

Top-press

Standard

Top-press

Freeze-drying area

㎡

0.12

0.08

0.12

0.08

0.18

0.27

0.09

Cold trap temperature

℃

<-56(no-loading),option<-80(no-loading

Vacuum degree

≤-56(no-loading)≤5(no-loading)

Water-capture capability

kg/24h

3-4

3-6

Tray dimension

Φ200

Φ180

Φ200

Φ180

Φ240

Φ200

Trays number

Tray spacing

Power

970

1400

Weight

105

Dimension(-56℃)

615x450x370

580x500x720

630x580x970

Dimension(-80℃)

850x680x405

770x550x720

810x580x950

Drying chamber size

Ф260x430

Ф260x490

Ф260x430

Ф260x490

Ф300x445

Ф300x540

Diameter of cold trap

Ф215

Ф270

Cold trap depth

140

240

400

Bulk capacity (thickness 10mm)

1.2

0.8

1.2

0.8

1.8

2.7

0.9

Vial loading number

Ф12mm：492

Ф12mm：615

Ф16mm：297

Ф16mm：345

Ф22mm：147

Ф22mm：183

Defrosting

Natural defrosting (option electric defrosting)

Power

1Ph+N+PE220V

Pre-frozen function

■With sample pre-frozen function, large cold trap opening, no inner coil, and low temperature refrigerator is needless.

Well-known brand vacuum pump

■Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

World - known brand compressors

■World - known brand compressors, high efficiency, long life, low noise.
■Patented gas diversion technology, and strong ice holding ability.

■Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

■SH-10KCQ Cold trap electric
heating defrosting.

■Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and
stability.

■Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve,
vacuum curve.

Model Selection Guide：

Ordinary：

It is suitable for freeze-drying bulk (liquid, pasty, solid) conventional materials.

Top-press:

It is not only suitable for freeze-drying of bulk (liquid, pasty, solid) conventional
substances, but also suitable for drying of Vials materials. When preparing for freeze-drying, the materials are separated into
Vials according to the need. After floating the cap, the freeze-drying process start After drying, the capping device is operated
to tighten the cap, which can avoid secondary pollution, re-adsorb water, and is easy to store for a long time.

Multi-pipeline ordinary:

It is suitable for the freeze-drying of bulk (liquid, pasty, solid) conventional materials, and can be fitted with flasks outside
the drying chamber to dry the materials rotated inside the bottle wall. At this time, the flask is connected to the manifold
outside the drying chamber as a container. The material in the flask is heated at room temperature. Through the multi-manifold
switch device, the flask can be removed or loaded at any time as needed without stopping the machine.

Multi-pipeline top-press：

On the basis of the characteristics of the common type, it combines the characteristics of the cover type and the common type of
multi-weir pipe. Suitable for freeze-drying of bulk (liquid, paste, solid) conventional materials; suitable for drying of vial
materials. In preparation for freeze-drying, divide material into vials as needed. After the lid is floated, the freeze-drying
process begins. After drying, operate the capping device to tighten the cap, which can avoid secondary pollution, re-absorb
moisture, and facilitate long-term storage.

T shelf:

It is suitable for the preservation of microorganisms such as bacteria and fungi in ampoule tubes. The ampoule storage method is often used in laboratories. The samples were packaged in small ampoules after freeze-drying. It has the advantages of Long-term

preservation, small variation, easy storage and Widely used.

Q: How long is the delivery time?
A: Just inquire NADE sales to get a schedule.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by NADE ?
A: The after-sales service of NADE is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience,our instruments works well during warranty period.
