Push button control/PLC control is adopted. One button start is adopted. After setting spray parameters, the temperature reaches the preset temperature, and the peristaltic pump starts
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220/380V(Can customized)
-
Power:
-
15Kw, 15Kw
-
Dimension(L*W*H):
-
1700*1100*1900mm
-
Weight (KG):
-
430
-
Core Components:
-
Atomizer
-
Material:
-
SUS, SUS304
-
Product name:
-

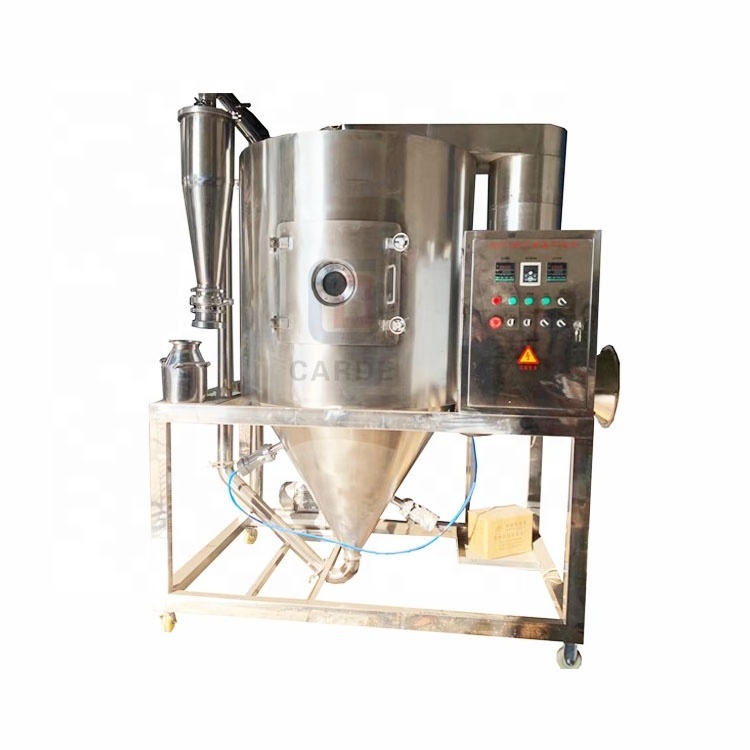

5L centrifugal Spray Dryer
-
Capacity:
-
Max 5L/H
-
Heat method:
-
Electricity(option:steam,gas,diesel,biomass,coal etc)
-
Inlet air temperature:
-
100 ~350℃(Adjustable)
-
Outlet air temperature:
-
80~90℃
-
Average drying time:
-
1.0 to 1.5S
-
Machine size:
-
1700*1100*1900mm
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CD
-
Voltage:
-
220/380V(Can customized)
-
Power:
-
15Kw, 15Kw
-
Dimension(L*W*H):
-
1700*1100*1900mm
-
Weight (KG):
-
430
-
Core Components:
-
Atomizer
-
Material:
-
SUS, SUS304
-
Product name:
-
5L centrifugal Spray Dryer
-
Capacity:
-
Max 5L/H
-
Heat method:
-
Electricity(option:steam,gas,diesel,biomass,coal etc)
-
Inlet air temperature:
-
100 ~350℃(Adjustable)
-
Outlet air temperature:
-
80~90℃
-
Average drying time:
-
1.0 to 1.5S
-
Machine size:
-
1700*1100*1900mm
Product Paramenters
|
Product name
|
5L centrifugal Spray Dryer
|
|
Application
|
Liquid products,milk,egg white etc
|
|
Material
|
SUS304
|
|
Power
|
15Kw
|
|
Capacity
|
Max 5L/H
|
|
Heat method
|
Electricity(option:steam,gas,diesel,biomass,coal etc)
|
|
Inlet air temperature
|
100 ~350℃(Adjustable)
|
|
Outlet air temperature
|
80 ~90℃
|
|
Average drying time
|
1.0 to 1.5S
|
|
Machine size
|
1700*1100*1900mm
|
Products Description
The Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent,emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products,residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.
Application
Food industry
Fat-rich milk powder, sorghum, cocoa milk powder, milk replacer powder, egg white (yellow), food and plant juice, Oatmeal, chicken juice, coffee, instant tea, flavorings, meat, protein, soy, peanut protein, hydrolysate, etc.
Carbohydrate
Corn syrup, corn starch, glucose, pectin, maltose, etc.
Plastic resin
AB, ABS emulsion, urea resin, phenolic resin, dense (urea) formaldehyde resin, polyethylene, polyvinyl chloride and the like.
Chemical industry
Sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts,sulfuric acid agents, amino acids, white carbon black, and the like.
Ceramics
Alumina, ceramic tile material, magnesium oxide, talcum powder.
Fat-rich milk powder, sorghum, cocoa milk powder, milk replacer powder, egg white (yellow), food and plant juice, Oatmeal, chicken juice, coffee, instant tea, flavorings, meat, protein, soy, peanut protein, hydrolysate, etc.
Carbohydrate
Corn syrup, corn starch, glucose, pectin, maltose, etc.
Plastic resin
AB, ABS emulsion, urea resin, phenolic resin, dense (urea) formaldehyde resin, polyethylene, polyvinyl chloride and the like.
Chemical industry
Sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts,sulfuric acid agents, amino acids, white carbon black, and the like.
Ceramics
Alumina, ceramic tile material, magnesium oxide, talcum powder.
Our Advantages
1-Particle size control
The dry particle size can be easily controlled by atomization of the liquid feed and the design of the hot gas inlet. This spray dryer can typically produce between 30 to 500 micron average particle size, in a bell shaped distribution.
2- The evaporative cooling of product
The heat and mass transfer during drying occurs in the air and vapor films surrounding the droplet. This protective envelope of vapor keeps the particle at the saturation temperature. As long as the particle does not become "bone-dry", evaporation is still taking place and the temperature of the solids will not approach the dryer outlet temperature.
3- Short residence time
The surface area produced by atomization of the liquid feed enables a short gas residence time, ranging from 3-10 seconds depending upon the application, which permits spray drying without thermal degradation.
4- Flow properties of dry product
The shape of most spray dried particles is spherical, which provides for fluid-like flow properties. This makes many downstream operations, such as packaging, pressing, filtering, and handling easier and less costly.
5- Size design of drying chamber
The size of drying chamber is specially designed to prevent droplets sticking to the inner wall, dried powder accumulating on the cone part and guarantee enough residence time.
Details Images
Control method--- Button control/PLC control
Spray dryer view window & Powder collect tank
The drying tower is equipped with observation windows, which can observe the atomization situation at any time. The spray, drying and collecting system is made of stainless steel, which makes the spray in a stable and pollution-free environment during the drying process.
Atomizer & Tower bottom
The atomization structure of spray is made of stainless steel, which is compact in design and convenient for use.
Air filter & Heat source part(Electricity)
In order to maintain the purity of the sample, an air inlet filter is equipped, and accurate temperature control is achieved throughout the entire temperature range during the drying process
Delivery 5L Spray Dryer
Standard export wooden case packing or container or customized packing
More models machine
Model: CD-LPG-2
Capacity:Max 2L/H
Heating method: electricity
Power: 4Kw
Machine size: 650*500*1200mm
(Heat method: electricity)
