Long-term operating temperature: 70°C or 90°C
.
- Product Details
- {{item.text}}
Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VERIBEST
-
Model Number:
-
H07V-K IEC 60227
-
Color:
-
Red,Yellow,Blue,Green,Black,White,Green/Yellow Product name:
-
Advantage:
-
Safe
-
Insulation:
-
PVC
-
MOQ:
-
100m
-
Certification:
-
CCC CE
-
Rated Voltage:
-
450V/750V
-
Product name:
-

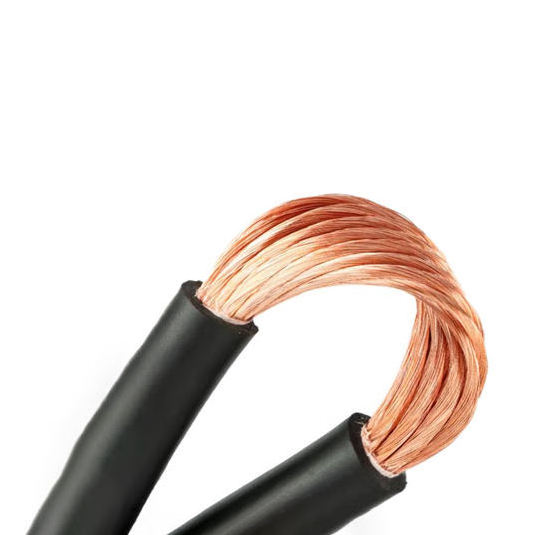

Copper Core PVC Insulation Wire
-
Conductor:
-
Copper Core
Quick Details
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Other
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VERIBEST
-
Model Number:
-
H07V-K IEC 60227
-
Color:
-
Red,Yellow,Blue,Green,Black,White,Green/Yellow Product name:
-
Advantage:
-
Safe
-
Insulation:
-
PVC
-
MOQ:
-
100m
-
Certification:
-
CCC CE
-
Rated Voltage:
-
450V/750V
-
Product name:
-
Copper Core PVC Insulation Wire
-
Conductor:
-
Copper Core
Specification
|
Voltage grade
（V)
|
Cross-sectional area
（mm2）
|
Conductor combination
（mm）
|
Insulation thickness
（mm）
|
The largest diameter
（mm）
|
|
450/750V
|
1.5
|
48/0.2
|
0.7
|
3.5
|
|
|
2.5
|
80/0.2
|
0.8
|
4.2
|
|
|
4.0
|
128/0.2
|
0.8
|
4.8
|
|
|
6.0
|
192/0.2
|
0.8
|
6.3
|
|
|
10
|
320/0.2
|
1.0
|
7.6
|
|
|
16
|
512/0.2
|
1.0
|
8.8
|
|
|
25
|
798/0.2
|
1.2
|
11
|
|
|
35
|
1121/0.2
|
1.2
|
12.5
|
|
|
50
|
1596/0.2
|
1.4
|
14.5
|
|
|
70
|
2240/0.2
|
1.4
|
17
|
|
|
95
|
3040/0.2
|
1.6
|
19
|
|
|
120
|
3840/0.2
|
1.6
|
21
|
Product Description
Customer use map
APPlication
This kind of products according to IEC 60227.3, GB/T5023.3 and JB8734.4 are suitable for AC rated voltage 450/750V, 300/500V or 300/300V and below household appliances, flexible use under harsh conditions, such as automobile and shipbuilding, conveyors, automatic welders, robots, etc. The cable is very strong, remains flexible, and is suitable for dry and wet environments as well as outdoor installations
