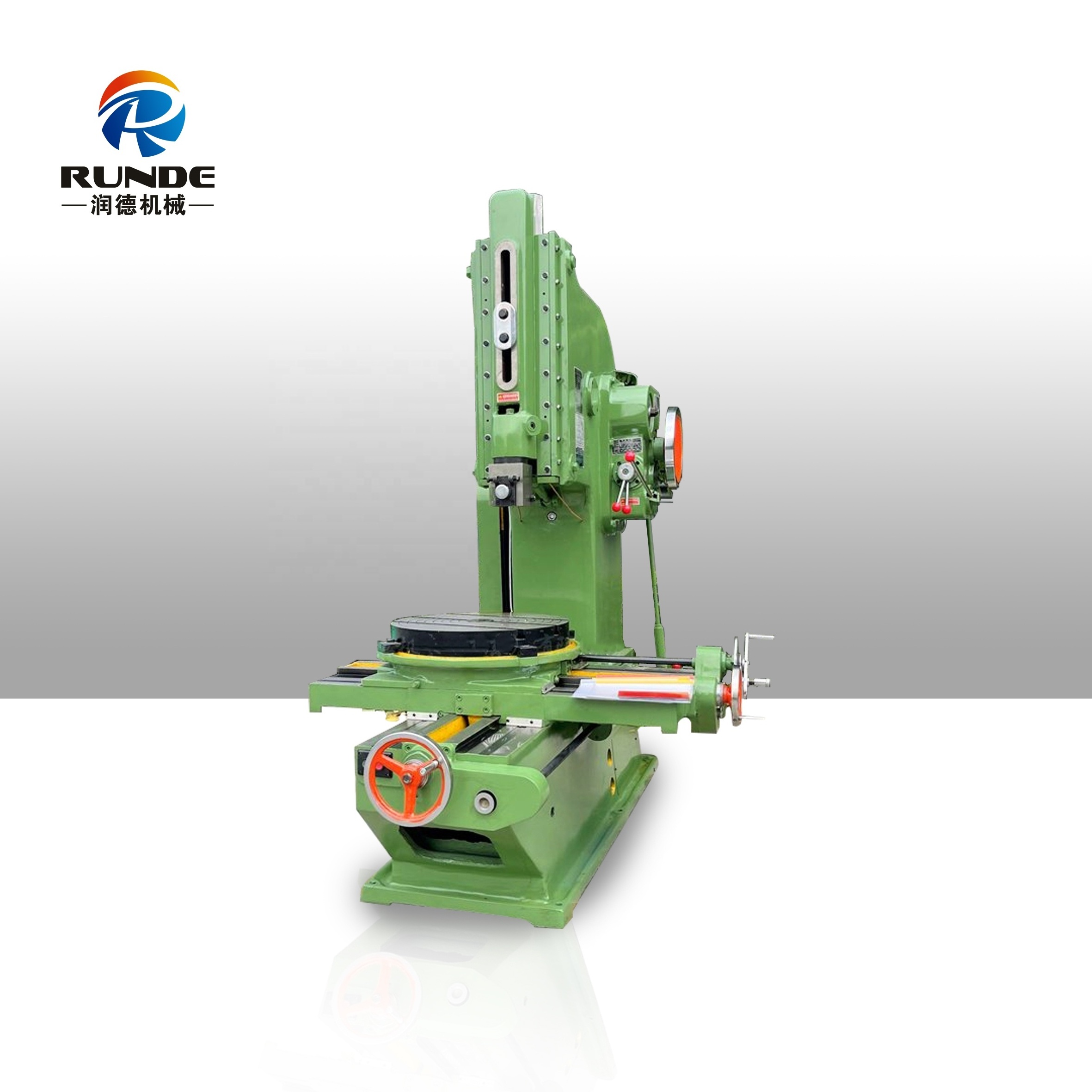

Quick Details
-
Dimension(L*W*H):
-
2261*1495*2245
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RUNDE
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2261*1495*2245
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
Products Description
Product Paramenters
|
Maximum stroke of RAM
|
220mm
|
340mm
|
|
Maximum pin length
|
200mm
|
320mm
|
|
Maximum machining dimension of workpiece (length × Width)
|
500×200mm
|
600×320mm
|
|
Workpiece weight
|
400kg
|
500kg
|
|
Maximum cutting force
|
7500N
|
7500N
|
|
Reciprocating times of ram per minute
|
32.50.80.125r.p.m
|
20,32,50,80 r.p.m
|
|
Vertical adjustment distance of RAM
|
230mm
|
315mm
|
|
Ram inclination angle
|
0-8°
|
0-8°
|
|
Distance between cutter head bearing surface and front wall of lathe bed
|
485mm
|
600mm
|
|
Maximum insert size (length × Width)
|
25×40mm
|
25×40mm
|
|
Table Diameter
|
500mm
|
630mm
|
|
Distance between worktable and lower end of sliding frame
|
320mm
|
490mm
|
|
Maximum longitudinal movement distance of workbench (motorized / manual)
|
400/450mm
|
480/620mm
|
|
Maximum horizontal movement distance of workbench (motorized / manual)
|
450/500mm
|
480/560mm
|
|
Vertical and horizontal dynamic feed range of worktable
|
0.08-1.21mm
|
0.08-1.21mm
|
|
Table rotary feed range
|
0.052-0.783mm
|
0.052-0.783mm
|
|
Main motor power
|
3KW
|
4KW
|
|
Machine tool outline dimension (length × wide × High)
|
1916×1305×1995mm
|
2261×1495×2245mm
|
|
Machine weight (approx.)
|
2200kg
|
3000kg
|
