and can sand any profiled surface.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
18
-
Name:
-
Double Sides Sander
-
Application:
-
Wood furniture processing
-
characteristics:
-
Efficient, automatic
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAIYUANJINGKE
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
18
-
Name:
-
Double Sides Sander
-
Application:
-
Wood furniture processing
-
characteristics:
-
Efficient, automatic
It can be installed with abrasive tools such as brush sand roller, octa gonal sand, abrasive sand, polishing wheel, etc.
Features: good versatility
,
It can be installed with abrasive tools such as brush sand roller, octagonal sand, abrasive sand, polishing wheel, etc.
Features: good versatility
,and can sand any profiled surface.
It is applicable to the
left and right connection
between two edge
banding or sanding machines, and the conveying speed is greater than or equal to 35 m/min.
Standardized
assembly process,
clear
lines, and electrical accessories
conforming to international standards
have better quality assurance
AIl operation interface,
data touch operation
, with remote assistance device
program and parameter function.
|

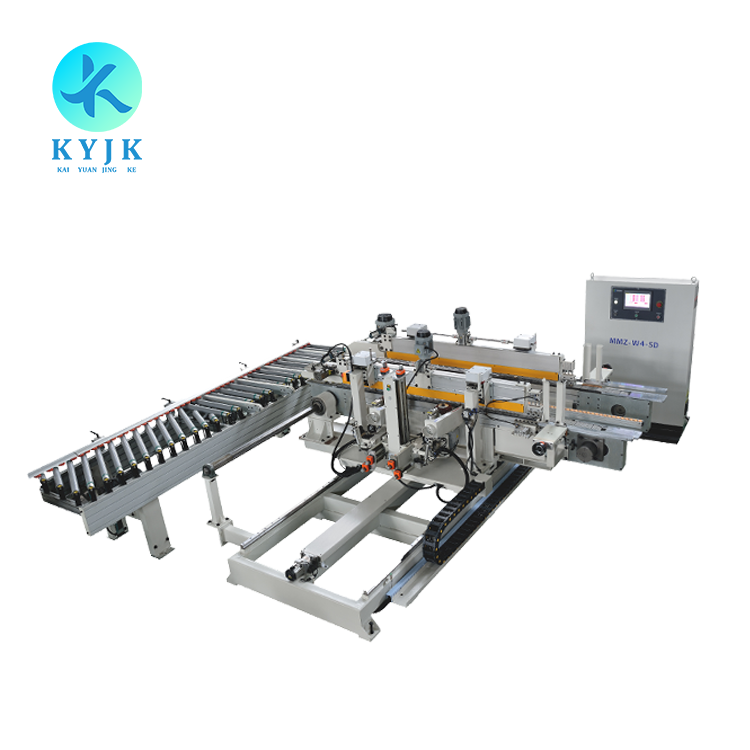

Machine model
|
MMS-W4-SD
|
|
Workpiece feeding width L1
|
90～200 mm
|
|
Maximum thickness of workpiece feeding L2
|
50 mm
|
|
Minimum and maximum length of workpiece feeding
|
100mm
|
|
Conveying motor
|
350-2000 mm
|
|
Pressure beam lifting motor
|
3KW 380V 50Hz 1440rpm
|
|
Feeding speed
|
0.37KW-2 sets
|
|
Servo switch motor
|
1 ～ 20 m/min
|
|
Servo auxiliary discharge motor
|
0.75KW
|
|
Sand head motor
|
0.18KW-2 sets
|
|
Aggregate capacity
|
4 sets of 380V 50Hz 1.5KW, 1400 r/min=6 KW
|
|
Total power
|
10.85kw
|
|
Working air pressure
|
0.6～0.7 MPa
|
|
Dimension
|
3130*3450*1500 mm
|
|
Weight
|
2500kg
|
