Quick Details
-
Voltage:
-
220V-415V 3phase
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUPACK
-
Dimension(L*W*H):
-
L3025mm*W2000mm*H2260mm
-
Weight:
-
1080kg
-
Certification:
-
CE
-
Turntable Size:
-
Dia:2000mm Height:480mm
-
Turntable Max. Loading:
-
2000KG
-
Efficient:
-
20-40loads/Hours
-
Paper roll diameter:
-
500-1600 mm (Special can be made)
-
Paper roll width:
-
500-1600 mm (Special can be made)
-
Turntable roller diameter:
-
150mm
Quick Details
-
Packaging Type:
-
Bags, Barrel, Belt, Bottles, CANS, Capsule, Cartons, case, Film, Foil, Pouch, Stand-up Pouch, pallet/tray
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood, film
-
Driven Type:
-
Electric
-
Voltage:
-
220V-415V 3phase
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUPACK
-
Dimension(L*W*H):
-
L3025mm*W2000mm*H2260mm
-
Weight:
-
1080kg
-
Certification:
-
CE
-
Turntable Size:
-
Dia:2000mm Height:480mm
-
Turntable Max. Loading:
-
2000KG
-
Efficient:
-
20-40loads/Hours
-
Paper roll diameter:
-
500-1600 mm (Special can be made)
-
Paper roll width:
-
500-1600 mm (Special can be made)
-
Turntable roller diameter:
-
150mm

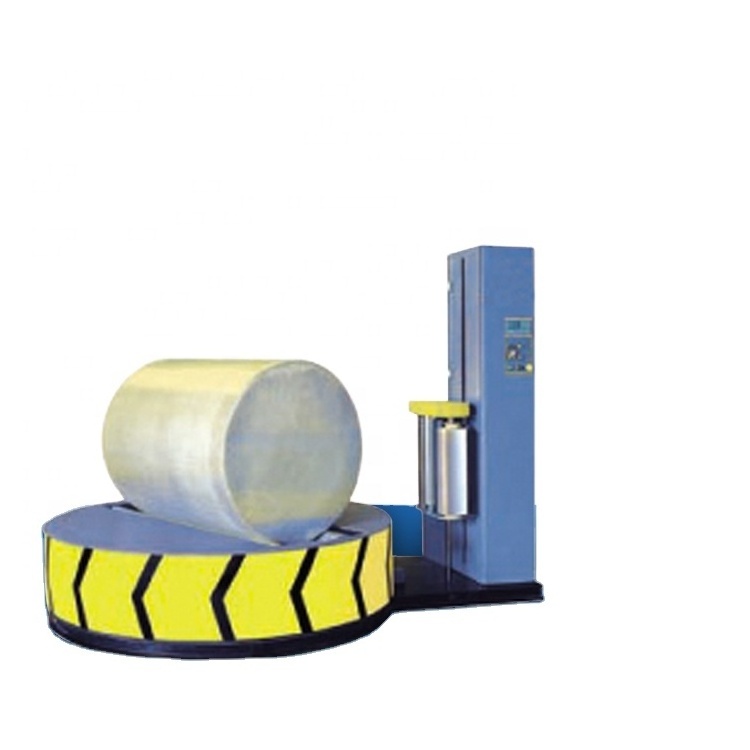

Reel Wrapping machine is a machine specially designed for packing paper,film,foil and similar materials manufactured in reels.It is a machine designed for packing rolls of paper,film,dipped tire cord fabric and similar materials manufactured in reels. It is ideal for reel axial wrapping across the cylindric diameter then along the longitudinal axis.
Technical Parameter
|
Model |
YP2000F reel wrapping machine |
|
Paper roll diameter |
500mm-1600mm(can be customize) |
|
Paper roll width |
500mm-1600mm(can be customize) |
|
Max.load height |
1800mm |
|
Max.loading weight |
2000kg(option2500kg/3000kg) |
|
Film Carriage |
|
|
|
|
|
Carriage |
Power pre-stretch film carriage,stretch ratio up to 300% carriage door opens for effortless roll change and thread film,film tension abjustable |
|
Machine Specification |
|
|
Turntable rotation speed |
3-12rpm/min adjustable |
|
Turntable diameter |
2000mm |
|
Turntable roller center distance |
460mm |
|
Turntable roller center diameter |
150mm |
|
Turntable height |
48 0mm (standard) |
|
Carriage up&down speed |
adjustable |
|
Voltage |
220V/380V/415V 3Ph |
|
Power |
2 KW 50HZ/60HZ |
|
Efficiency |
20-40loads/hour |
|
Machine dimension |
L 3025 mm*W 2000 mm*H2 26 0mm(Standard) |
|
Machine |
1080 kg |
|
Film roll detail |
|
|
Max.external diameter |
230mm |
|
Internal diameter |
76mm |
|
Width |
500mm |
|
Thickness |
17-35um |
|
Option |
|
|
♦ Paper roll reject system |
|
|
♦Top platen system |
|
|
♦Turntable slew bearing drive |
|
