Quick Details
-
Productivity:
-
65/41m³/h
-
Place of Origin:
-
Henan
-
Brand Name:
-
Daswell
-
Weight:
-
5800 kg
-
Dimension(L*W*H):
-
6000*2100*2250mm
-
Warranty of core components:
-
Life long service
-
Concrete pump type:
-
Electric Engines Concrete Pump
-
Application:
-
Construction Concrete Pump
-
Color:
-
Customers' Requirement
-
Brand:
-
Daswell
-
Usage:
-
Building Project
-
Feature:
-
High Efficience
-
Hopper Capacity:
-
0.8m³
-
Max Aggregate Size:
-
40mm
-
Horizontal Convey Distance (m):
-
300m
-
Shipping:
-
Sea
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
260m
-
Max. horizontal conveying distance:
-
300M
-
Productivity:
-
65/41m³/h
-
Place of Origin:
-
Henan
-
Brand Name:
-
Daswell
-
Weight:
-
5800 kg
-
Dimension(L*W*H):
-
6000*2100*2250mm
-
Warranty of core components:
-
Life long service
-
Concrete pump type:
-
Electric Engines Concrete Pump
-
Application:
-
Construction Concrete Pump
-
Color:
-
Customers' Requirement
-
Brand:
-
Daswell
-
Usage:
-
Building Project
-
Feature:
-
High Efficience
-
Hopper Capacity:
-
0.8m³
-
Max Aggregate Size:
-
40mm
-
Horizontal Convey Distance (m):
-
300m
-
Shipping:
-
Sea
Introduction of
concrete pump:

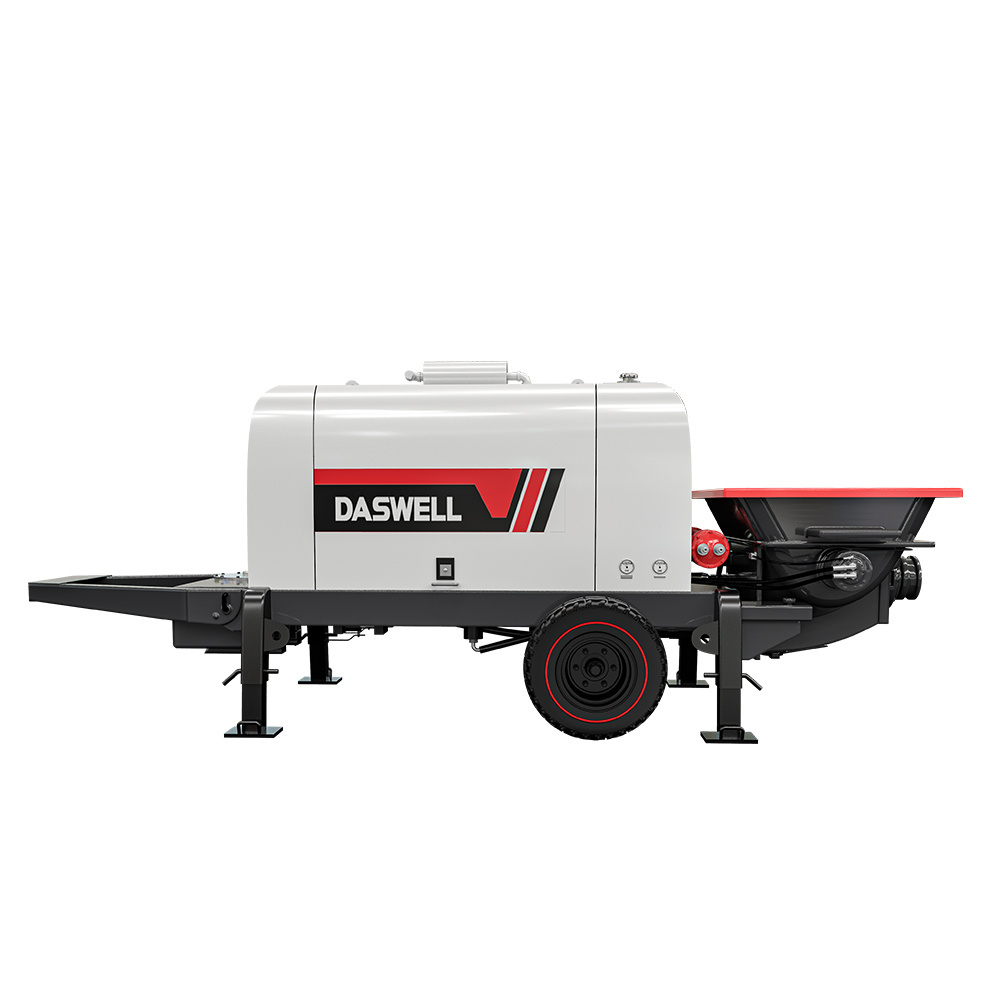

Concrete pump is a widely used concrete pumping equipment. Daswell concrete pump is an S-tube valve drag pump. Mainly used for concrete construction of railway and highway tunnels, bridges and culverts, hydropower, mines, high-rise buildings and other projects.
Advantages of concrete pump:
1. The hydraulic oil tank and steel pipe are pickled and phosphated; the rubber hose and valve block are specially cleaned to ensure that no impurities are left. The equipment failure rate is lower and the service life of the system is longer.
2. Valve block and valve group hose: The whole machine valve group, fuel tank and oil pipeline are cleaned with high pressure diesel oil; the oil quality is cleaner, the failure rate of hydraulic parts is lower, and the service life is longer.
3. Hydraulic oil: genuine hydraulic oil; debug the water for 8 hours, divide the pressure into high, medium and low pressure sections to ensure the stable operation of the whole machine.
4. Accumulator: Equipped with an accumulator, with a current compensator, which has a certain compensation effect when the voltage and current are unstable.
Technical parameter:
|
Classification |
Electric concrete pump |
Diesel concrete pump |
|
40 |
CPE-40-10-55 |
CPD-40-10-66 |
|
60 |
CPE-60-13-90 |
CPD-60-13-130 |
|
80 |
CPE-80-16-110 |
CPD-80-16-176 |
|
90 |
CPE-90-18--132 |
CPD-90-18-176 |
|
90 |
CPE-90-22-160 |
CPD-90-20-199 |
How long is the lead time?
Electric pump, if the voltage is different voltage, the delivery time is 20-25 days.
For diesel pumps, the delivery time is usually 7-10 days.
Can the 40 model pump 40mm of aggregate?
OK. Because our 40 pump is equipped with a 230 bore, it can hit 40mm of aggregate.
How high and far can the 60 pump?
If the 60 pumps C30 concrete, it can hit 90-110m vertically and 350-500m horizontally.
What is the diameter of the pump tubing?
The diameter of the pump pipes we have equipped is 125mm.
What brand are the main components?
The diesel engine is Weichai, and the main oil pump is Kawasaki or Rexroth, all of which are internationally renowned brands. Cummins diesel engine can also be used according to customer requirements.
