Quick Details
-
Structure:
-
Pressure Reducing
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ACE, OEM
-
Model Number:
-
APR-2A
-
Port Size:
-
1/2"~6"
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange type
-
Standard:
-
JIS, ANSI, DIN, etc.
-
Special Coating:
-
Fusion Bonded Epoxy Coating
-
Colour:
-
Blue
-
Input Pressure:
-
Under 1.0MPa
-
Output Pressure:
-
0.3-0.7MPa
-
Maximum pressure reduction ratio:
-
10:1
-
Min differential pressure:
-
0.05MPa
-
Minimum adjustable flow rate:
-
2-5L/min
Quick Details
-
Type:
-
Pressure Reducing Control Valves
-
Application:
-
General
-
Power:
-
Hydraulic
-
Structure:
-
Pressure Reducing
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ACE, OEM
-
Model Number:
-
APR-2A
-
Port Size:
-
1/2"~6"
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange type
-
Standard:
-
JIS, ANSI, DIN, etc.
-
Special Coating:
-
Fusion Bonded Epoxy Coating
-
Colour:
-
Blue
-
Input Pressure:
-
Under 1.0MPa
-
Output Pressure:
-
0.3-0.7MPa
-
Maximum pressure reduction ratio:
-
10:1
-
Min differential pressure:
-
0.05MPa
-
Minimum adjustable flow rate:
-
2-5L/min

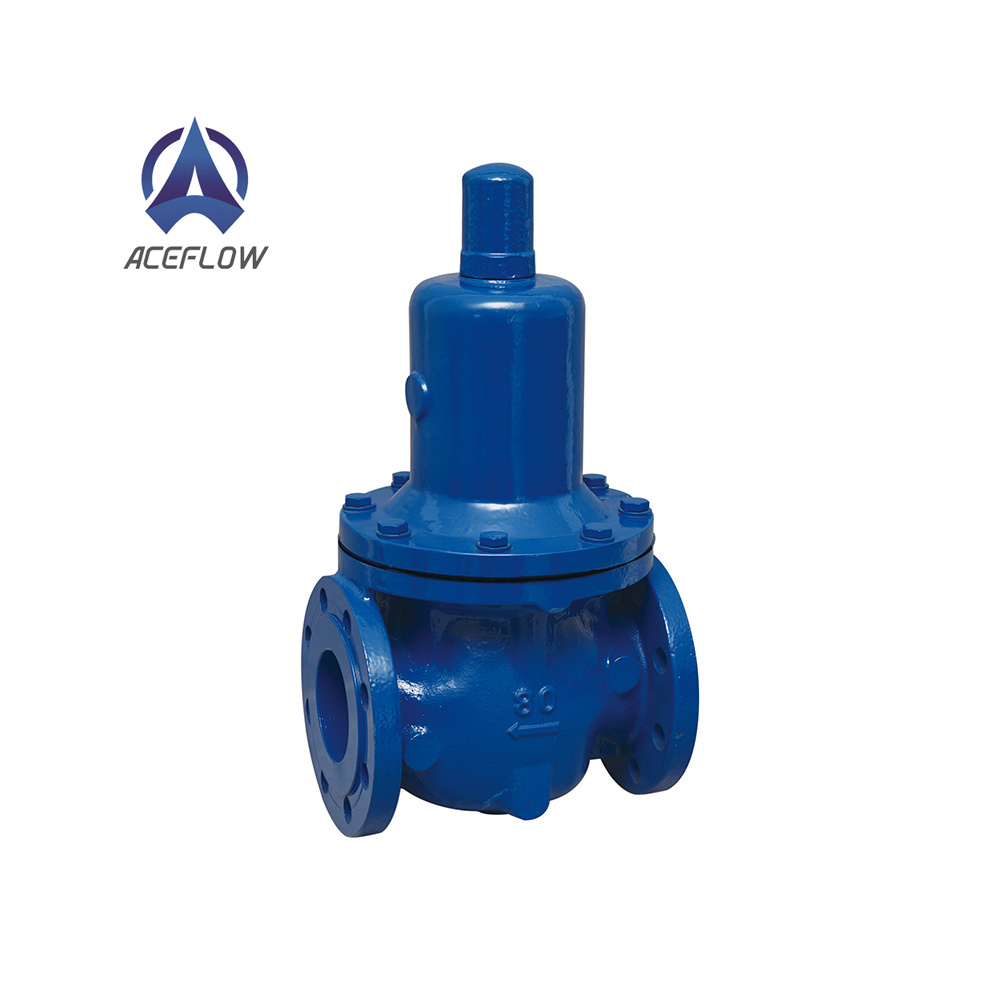

Model APR-2A Pressure Reducing Valve for Water
Size: 15A-150A(1/2"~6")
Product Description
|
Item |
APR-2A | APR-41 | ||
| Applicable Fluid | Water | Water, Air | ||
| Inlet Pressure | 1.0MPa, 1.6MPa | 2.0MPa, 2.5MPa | ||
| Outlet Pressure | Outer Spring | 0.5-3.5bar | 0.5-7bar(Standard Pressure) | |
| Inner+Outer Spring | 3-7bar | 7-12(Medium Pressure) | ||
| Max. Pressure Reduction Ratio | 10:1 | |||
| Fluid Temperature | 5-80 Deg C | |||
| End Connection | PT SCREW(1/2"-1"), PN16 RF FLANGE | PN25 RF FLANGE | ||
| Material | Body | Cast Iron, Ductile Cast Iron | Cast Steel | |
| Disc, Seat | NBR, SS304 | |||
| Hydraulic Test Pressure | 2.5MPa | 4.5MPa | ||
Packaging & Shipping
Our Services
* Professinal design, high-qualified machining, strict testing, careful packing, prompt delivery
*
