Quick Details
-
Model Number:
-
BXSK-1830
-
Voltage:
-
220V/50HZ(single pnase)
-
Rated Power:
-
350W( host power)
-
Dimension(L*W*H):
-
2400*3500
-
Weight (KG):
-
110
-
Year:
-
2021
-
Marketing Type:
-
New Product 2021
-
Specifications:
-
BXSK-1830.BXSK-1840
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Product name:
-
CNC Plasma Metal Cutting Machine
-
Cutting length:
-
3000mm.4000mm.6000mm
-
Cutting width:
-
1800mm(length of arm 2400 mm)
-
Cutting thickness:
-
Flame5-120mm(Plasma Cutting thickness depends on power supply size)
-
Drive way:
-
Unilateral drive
-
Running speed:
-
Maximum blank line speed5000mm/min
-
Cutting range:
-
Plate, stainless steel, carbon steel, pipe
-
Cutting consumables:
-
Cutting torch, cutting mouth
-
Certification:
-
CCC
Quick Details
-
Dimensions:
-
1800*3000
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Jvliang
-
Model Number:
-
BXSK-1830
-
Voltage:
-
220V/50HZ(single pnase)
-
Rated Power:
-
350W( host power)
-
Dimension(L*W*H):
-
2400*3500
-
Weight (KG):
-
110
-
Year:
-
2021
-
Marketing Type:
-
New Product 2021
-
Specifications:
-
BXSK-1830.BXSK-1840
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Product name:
-
CNC Plasma Metal Cutting Machine
-
Cutting length:
-
3000mm.4000mm.6000mm
-
Cutting width:
-
1800mm(length of arm 2400 mm)
-
Cutting thickness:
-
Flame5-120mm(Plasma Cutting thickness depends on power supply size)
-
Drive way:
-
Unilateral drive
-
Running speed:
-
Maximum blank line speed5000mm/min
-
Cutting range:
-
Plate, stainless steel, carbon steel, pipe
-
Cutting consumables:
-
Cutting torch, cutting mouth
-
Certification:
-
CCC
Product Description
★

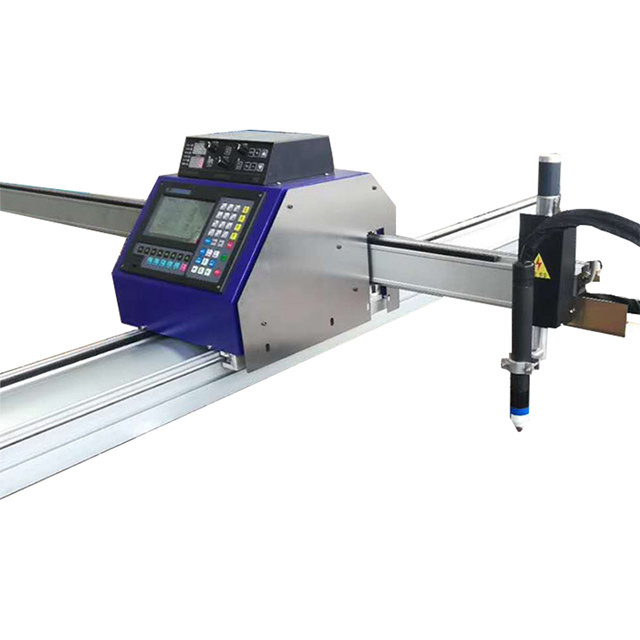

The cross arm is raised, extending 1.8m plasma cutting without jitter.
★
Longitudinal rail widened, strengthened, lengthened without deformation, smooth operation.
★
Operating system upgrade to support process parameter library and CAN bus.
★
Automatic needing software, plate utilization rate up to 95%.
★
Upgraded aluminum chassis, more reasonable structure, greater strength, higher machining accuracy, lighter weight.
★
Adopt high quality electrical accessories, reasonable and standardized internal layout, prevent electromagnetic interference of the system, long time operation does not crash, easy maintenance after sale.
|
Specifications
|
BXSK-1830
|
BXSK-1840
|
BXSK-1860
|
||
|
Whole machine size
|
2400*3500
|
2400*4500
|
2400*6500
|
||
|
Cutting length
|
3000mm
|
4000mm
|
6000mm
|
||
|
Cutting width
|
1800(total length of the cross arm is 2400mm)
|
|
|
||
|
Cutting way
|
Oxygen/propane or acetylene; Can be equipped with air plasma cutting power supply.
|
|
|
||
|
Cutting thickness
|
Flame 5-120mm; Plasma cutting thickness is determined by the size of the power supply
|
|
|
||
|
Drive way
|
Unilateral drive
|
|
|
||
|
Input power
|
350W(host power, excluding plasma power supply)
|
|
|
||
|
Input voltage
|
220 v / 50 hz (single phase)
|
|
|
||
|
Running speed
|
Maximum blank line speed is 5000mm/min,and cutting speed depends on the cutting mode
|
|
|
||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
