Quick Details
-
Power (kW):
-
7.5KW+2.2KW
-
Weight (KG):
-
4200 KG
-
Product name:
-
High speed nail making machine
-
Speed:
-
Max 650pcs/min
-
Nail length:
-
50-130mm/70-150mm
-
Wire dia:
-
SS steel :2.5-4.5mm/Low carbon:2.5-5.0mm
Quick Details
-
Production Capacity:
-
100sets
-
Place of Origin:
-
HEB
-
Brand Name:
-
RKM
-
Power (kW):
-
7.5KW+2.2KW
-
Weight (KG):
-
4200 KG
-
Product name:
-
High speed nail making machine
-
Speed:
-
Max 650pcs/min
-
Nail length:
-
50-130mm/70-150mm
-
Wire dia:
-
SS steel :2.5-4.5mm/Low carbon:2.5-5.0mm

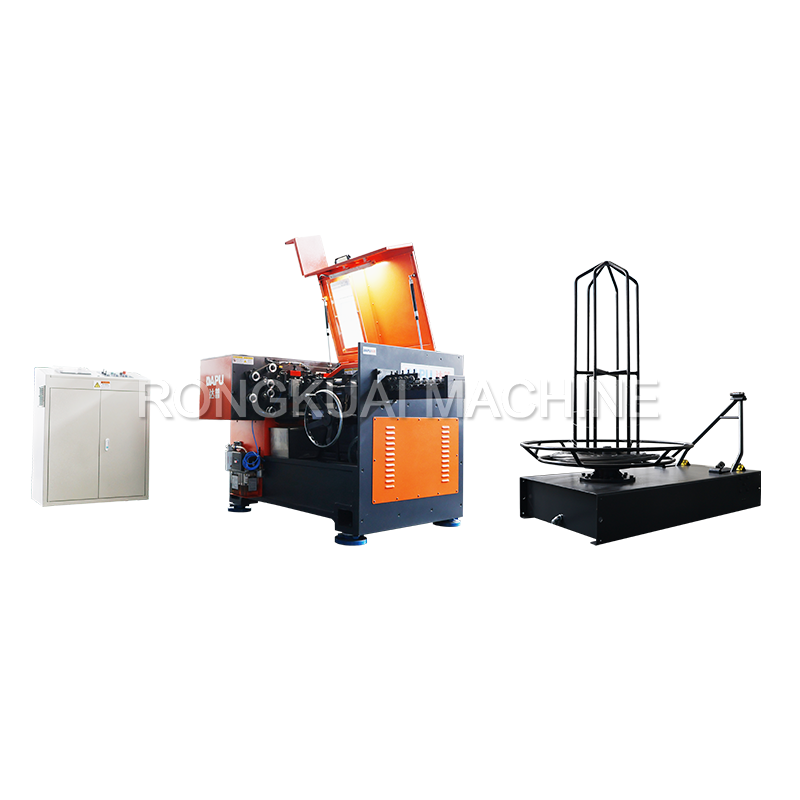

China big factory good price concrete nail making machine for construction
High-speed nail making machine is characterized by higher speed and energy saving, and completely solves the problems of long and short nails, partial caps, and small ratio of nail caps to nail rods.
1. Our nail caps have good stability, double molds and double punches, and two moldings. The machine is equipped with long and short nail sensor, automatic turning machine function, no waste, which ensures the quality of nail making.
2. The cost of abrasive tools is low, and a pair of scissors can generally use 100 tons of nails;
3. Cost-effective, easy to operate, easy to change specifications;
4. Raw materials: black silk, bright silk;
5. The machine has high stability, and the speed can reach 760 pieces/minute; it can save a lot of labor and increase production capacity (the production capacity can be more than doubled under the same site and manual work).
| Model | DP-ZDJ-L50 | DP-ZDJ-L90 | DP-ZDJ-L130P | DP-ZDJ-L150 |
| Wire dia. | 1.8-2.5mm | 2-3.5mm |
SS steel:2.5-4.8mm Low carbon:2.5-5.2mm |
SS steel:2.5-4.8mm Low carbon:2.5-5.5mm |
| Nail length | 32-64mm | 32-92mm | 50-130mm | 70-150mm |
| Speed | 800pcs/min | 760pcs/min | 650pcs/min | 500pcs/min |
| Motor | 5.5KW+1.5KW | 5.5KW+1.5KW | 7.5KW+2.2KW | 11KW+2.2KW |
| Dimension |
1500*950*1300mm 1600*900*1650mm 420*760*970mm |
1500*1180*1100mm 1600*900*1650mm 420*760*970mm |
1540*1160*1300mm 1600*900*1650mm 420*760*970 |
1650*1200*1300mm 1600*900*1650mm 420*760*970mm |
| Weight | 2500kg | 2800kg | 4200kg | 4500kg |
1. Nail polishing machine
Function: Used to make the nails smoother, brighter and can anti-rust. This machine is a auxiliary
equipment. It is used to polishing nails, shoes nails wood screws of various specifications.
2. Automatic cutter grinding machine
| Model | SD-600 | SD-1000 | Function | used to Make the blade more sharp. (The blade is used to cut nail) |
| Capacity | 400kg | 800kg | Output | 2900r/min |
| Motor | 4.5-5.5kw | 5.5-7.5kw | Motor | 0.75kw |
| Dimension | 1.8*1.0*1.1m | 2.0*1.5*1.4m | Diameter of grinding wheel | 200mm |
| Weight | 500kg | 800kg | Dimension | 0.8*0.5 *1.0m |
ABOUT US
Hebei Rongkuai Machinery Manufacturing Co., Ltd. is a professional manufacturer dedicated to the research, development, design, production and sales of European high end mesh welding machines, European high speed straightening and cutting machines and other wire mesh processing machinery. The company's products are widely used in construction, steel bar processing, coal mine support nets, wire support bridges, breeding nets and other fields.
The company insists on cooperating with Europe's top welding mesh machine manufacturers on research and development, learning from and applying Europe's existing mature technologies, and at the same time insists on independent innovation to optimize the performance of the welding mesh machine based on China's current situation. It has more than ten invention patents, utility model patents and design patents. It has effectively promoted the overall progress and development of the industry.
1. What’s your delivery time?
30-40days after receiving the deposit by T/T or original L/C.
2. Are you a trading company or manufacturer?
We are factory directly and we can supply pre-sale and after-sale service.
3. Where is your factory how to visit you?
Our factory located in Anping and our head office is in Shijiazhuang, you can take a train or an airplane to Shijiazhuang. And I will pick you up from the station.
4. Can your company send your engineers to my country for machine installation, worker training?
Yes, our engineers went to more than 100 countries before. They are very experienced.
5. What's the guaranteed time for your machines?
Our guarantee time is 2 years since the machine was installed in your factory.
