Quick Details
-
Model Number:
-
CWX-60P
-
Brand Name:
-
Tianfei
-
Product name:
-
Motorized Ball Valve
-
Connection:
-
BSP, NPT and G thread
-
Body material:
-
Brass, Plastic, SS316/304
-
Certificate:
-
ISO, RoHS, CE
-
Working pressure:
-
PN10 /1.0Mpa
-
Voltage:
-
DC3-6V DC12V AC/DC9-24V AC220V AC85-265V
-
Manual Override:
-
no Motorized Ball Valve
-
Working Temperature:
-
-10°C-40°C/14°F-108°F
-
Wiring control mode:
-
CR01 CR02 CR02+ CR03 CR04 CR05 CR01S CR02S CR03S CR04S CR05S
Quick Details
-
Port Size:
-
2way DN8-32; 3way DN8-25, 2way DN8-32; 3way DN8-25
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-60P
-
Brand Name:
-
Tianfei
-
Product name:
-
Motorized Ball Valve
-
Connection:
-
BSP, NPT and G thread
-
Body material:
-
Brass, Plastic, SS316/304
-
Certificate:
-
ISO, RoHS, CE
-
Working pressure:
-
PN10 /1.0Mpa
-
Voltage:
-
DC3-6V DC12V AC/DC9-24V AC220V AC85-265V
-
Manual Override:
-
no Motorized Ball Valve
-
Working Temperature:
-
-10°C-40°C/14°F-108°F
-
Wiring control mode:
-
CR01 CR02 CR02+ CR03 CR04 CR05 CR01S CR02S CR03S CR04S CR05S
Product Description

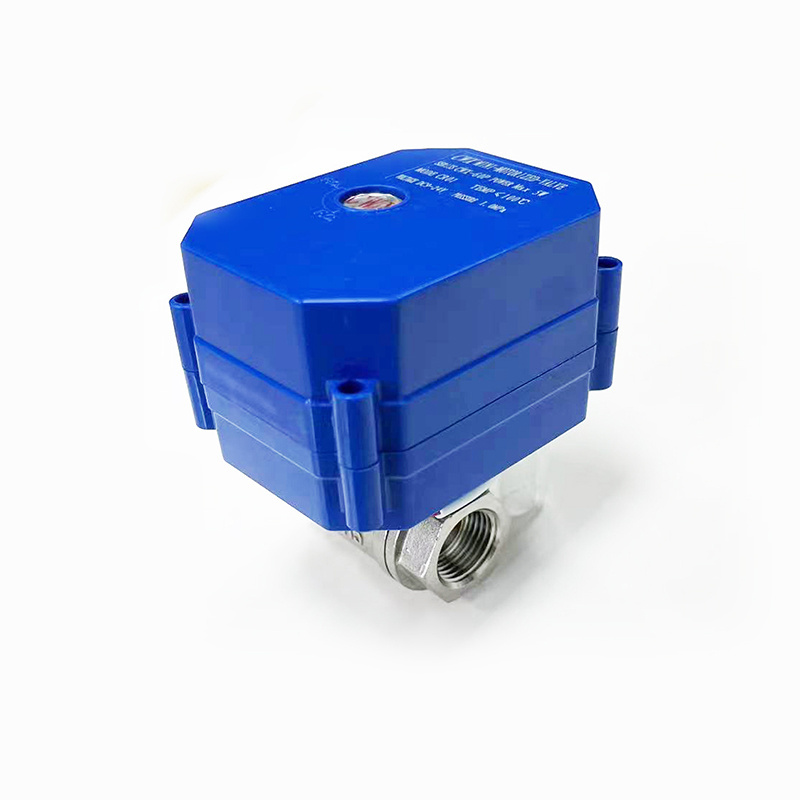

CWX-60P Brass PVC Stainless Steel Two Way Self Auto Close 1/2" 1" Inch Motorized Actuator Electric NPT BSP Ball Valve
Model Parameter
| Product model | CWX-60P-Self Close Water Detecting Valve |
| Output torque | 6NM |
| Rated voltage | DC3-6V |
| DC12V | |
| AC/DC9-24V | |
| AC220V | |
| AC85-265V | |
| Power | <5W |
| Working current | <100mA |
| (CR04 except Max150mA) | |
| Open/close time | 8s CR04 |
| 12s CR01 | |
| Position Indicator | yes (without by default) |
| Manual override | no |
| Gear Material | Fully metal gear |
| Working pressure | Max1.0Mpa |
| Valve Material | Brass |
| UPVC | |
| Stainless Steel | |
| Valve size | 2way DN8-32 3way DN8-25 |
Application Scenario
Packaging & Shipping
2,000 valves per day will be tested, packaged, rigged and prepared for shipment
Delivered to customers safely with the highest speed, efficient and fast transportation
