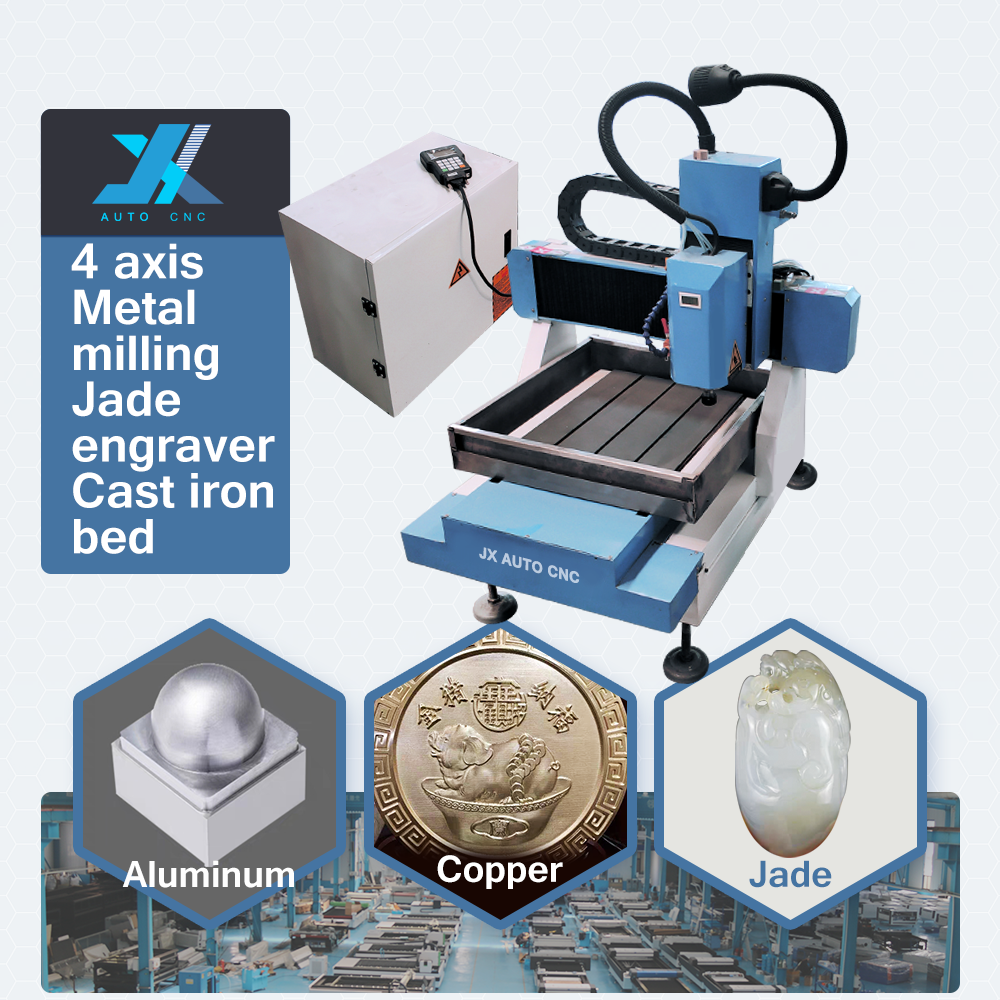

The Metal CNC engraving and milling machine is used for Iron, Copper, Aluminum, Stainless steel, mold steel, MDF sheets, PMMA, PVC
sheets, ABS sheet, KT sheet, Timber, Gemstone, Marble, Aluminum, and plastic composite panel, Iron, Copper, Aluminum,
Plastics,etc.
1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, a-luminum, and
plastics.
2. It is widely used in automotive, injection mold, ironware mold, and engrave mold industries.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC cnc jade carving machine
-
Voltage:
-
AC220V/380V
-
Dimension(L*W*H):
-
1500*1200*2100mm
-
Power (kW):
-
3
-
Weight (KG):
-
500
-
Core Components:
-
hobby cnc milling machine, cnc jade carving machine, mini cnc router machine, Motor, Driver, System, Spindle
-
Machine name:
-
cnc jade carving machine
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Software:
-
TYPE3/ARTCAM
-
Application:
-
Aluminium Cutting
-
Transmission:
-
TBI Ball Screw
-
Function:
-
Jade carving machine
-
Name:
-
cnc jade carving machine
-
Control system:
-
cnc jade carving machine
-
Table Surface:
-
Water tank
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC cnc jade carving machine
-
Voltage:
-
AC220V/380V
-
Dimension(L*W*H):
-
1500*1200*2100mm
-
Power (kW):
-
3
-
Weight (KG):
-
500
-
Core Components:
-
hobby cnc milling machine, cnc jade carving machine, mini cnc router machine, Motor, Driver, System, Spindle
-
Machine name:
-
cnc jade carving machine
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Software:
-
TYPE3/ARTCAM
-
Application:
-
Aluminium Cutting
-
Transmission:
-
TBI Ball Screw
-
Function:
-
Jade carving machine
-
Name:
-
cnc jade carving machine
-
Control system:
-
cnc jade carving machine
-
Table Surface:
-
Water tank
Products Description
Application Area
3. It is specially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, grap-hics, and words of
three-dimensional and outside surface's sleeking of large size molds.
three-dimensional and outside surface's sleeking of large size molds.
Product Paramenters
|
Machine model
|
4040 metal CNC router
|
6060 metal CNC router
|
6090 metal CNC router
|
||
|
Working area
|
400*400mm
|
600*600mm
|
600*900mm
|
||
|
Machine structure
|
Cast iron structure, table move on Y axis
|
|
|
||
|
Feeding height
|
150/300mm
|
|
|
||
|
Spindle
|
2.2kW water cooling spindle
|
|
|
||
|
Spindle speed
|
24000rpm
|
|
|
||
|
Control system
|
Weihong / DSP
|
|
|
||
|
Drive and motor
|
Leadshine stepper / servo motor
|
|
|
||
|
X Y Z axis guide rail
|
Taiwan square linear rails
|
|
|
||
|
Transmission
|
X Y Z axis TBI ball screw driver
|
|
|
||
|
Coolant system
|
Including water sink and pump to cool down tool bits and working materials
|
|
|
||
|
Working voltage
|
AC220V/380V±10% / 50~60Hz
|
|
|
||
|
Working precision
|
0.05mm
|
|
|
||
|
Repeatability precision
|
0.01mm
|
|
|
||
|
Command code
|
G code
|
|
|
||
|
Compatible software
|
Type3/Artcam//Mastercam/Ucancam etc
|
|
|
||
|
Machine tool work light
|
LED machine light
|
|
|
||
Details Images
Spindle
Adopt water cooling spindle with high
cutting speed and low noise, ensure
long life running.
Taiwan square linear rails
Ultra heavy type has heavy rigidity,
vibration and shock resistance, and
damping characteristics.
Ball screws transmission
High transmission efficiency, high preci-
sion, high durability, high reliability, no
backlash and high rigidity.
Electric oil system
Simple operation, intelligent digital
display security alarm.
Cast iron table move type
Ensure machine to have excellent
rigidity and high precision,
not easy to deformation.
Ncstudio system
Stable system and high processing,
strong anti-interference ability,
self-programming, display processing
track, good finish.
