Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
TP100 Motorcycle TPMS
-
Warranty:
-
18 Months
-
Certification:
-
CE
-
Product name:
-
TPMS Sensor for Motorcycle
-
Sensor weight:
-
<10g
-
Pressure range:
-
0Psi~51Psi/0Bar~3.5Bar
-
Battery model:
-
CR1632
-
Battery lifetime:
-
> 3 years
-
Operating Current:
-
<12mA
-
Storage Temperature:
-
-40~+125 ℃
-
Operating temperature:
-
-40~ +85℃
-
Input voltage:
-
12±3V
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TP100 Motorcycle TPMS
-
Warranty:
-
18 Months
-
Certification:
-
CE
-
Product name:
-
TPMS Sensor for Motorcycle
-
Sensor weight:
-
<10g
-
Pressure range:
-
0Psi~51Psi/0Bar~3.5Bar
-
Battery model:
-
CR1632
-
Battery lifetime:
-
> 3 years
-
Operating Current:
-
<12mA
-
Storage Temperature:
-
-40~+125 ℃
-
Operating temperature:
-
-40~ +85℃
-
Input voltage:
-
12±3V
Bluetooth TPMS Sensor Tire Pressure Monitor System for Motorcycle Waterproof External TPMS Sensor
Product Features for TPMS
(1) Real time monitoring tire pressure and temperature.
(2) Display show pressure of all 4 tires on screen.
(3) Display show temperature of all 4 tires on screen by pressing button.
(4) Display show which tire is abnormal.
(5) Powerful function include low pressure, high pressure, leakage, high temperature alarm.
(6) Alarm with beep sound and display screen red light flashing.
(7) Sensor battery changeable.
(8) Display powered by vehicle battery.
Alarm Function
(1) TPMS Leakage alarm: The pressure decrease over 0.3Bar in 5 minutes
(2) TPMS Low pressure alarm: The pressure is lower than 1.8Bar
(3) TPMS High Pressure Alarm: The pressure is higher than 3.2Bar
(4) TPMS High temperature alarm: The temperature of tire is over 65°C
(5) TPMS Low power of sensor alarm: The power of any sensor is less than 2.2v
(6) TPMS No signal alarm: Missing some sensors’ message after it start to work
Operating Functions
(1) Set up sensor: learn new sensor ID code when replace sensor
(2) Pressure unit can be switched between Bar and Psi
(3) High and low pressure alarm value can be adusted by users
Technical Parameter
| Sensor Weight | <10g |
| Pressure Range | 0Psi-51Psi / 0Bar-3.5Bar |
| Battery Model | CR1632 |
| Battery Lifetime | >3 years |
| Static Current | < 0.7μA |
| Operating Current: | < 12mA |
| Operating Temperature: | -40℃ ~ +125℃ |
| Pressure Error: | ±1Psi / ±0.1Bar |
| Temperature Reading Accuracy | ±2℃ |
| Operating Humidity: | 5∼98% |

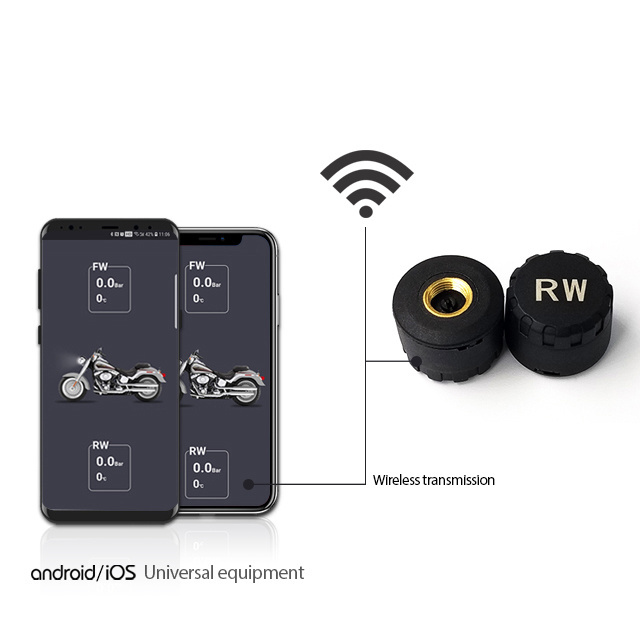

Picture for TPMS
Warranty:
The quality of this product was strictly controlled before out of factory,which ensures its advanced performance under normal utilization.To protect consumer's right and keep our company's reputation,we guarantee that if any failure happened due to production and bad quality of component which is excluding any human damage,it will be repaired free of charge within 18 months from the date when you buy this product.
