- Product Details
- {{item.text}}
Quick Details
-
Application:
-
automatic door/gate system
-
Design Style:
-
Customer's design
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYD MOTOR; DONGZHENG MOTOR
-
Model Number:
-
DC Gear Motor 80ZY/60JX
-
Keyword:
-
DC Planetary Gear Motor for Swing Gate
-
Motor:
-
brushed/brushless/stepper
-
MOQ:
-
1
-
Usage:
-
Swing Gate Operator
-
Color:
-
Black or customer's needs
-
Protection Class:
-
Up to IP68, Customer's needs
-
Option:
-
Encoder, brake, cable connector, drive pulley
-
Gearbox type:
-
Planetary
-
Motor diameter:
-
80mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
customized technical support
-
Project Solution Capability:
-
graphic design, 3D model design, Others
-
Application:
-
automatic door/gate system
-
Design Style:
-
Customer's design
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYD MOTOR; DONGZHENG MOTOR
-
Model Number:
-
DC Gear Motor 80ZY/60JX
-
Keyword:
-
DC Planetary Gear Motor for Swing Gate
-
Motor:
-
brushed/brushless/stepper
-
MOQ:
-
1
-
Usage:
-
Swing Gate Operator
-
Color:
-
Black or customer's needs
-
Protection Class:
-
Up to IP68, Customer's needs
-
Option:
-
Encoder, brake, cable connector, drive pulley
-
Gearbox type:
-
Planetary
-
Motor diameter:
-
80mm
Product Description

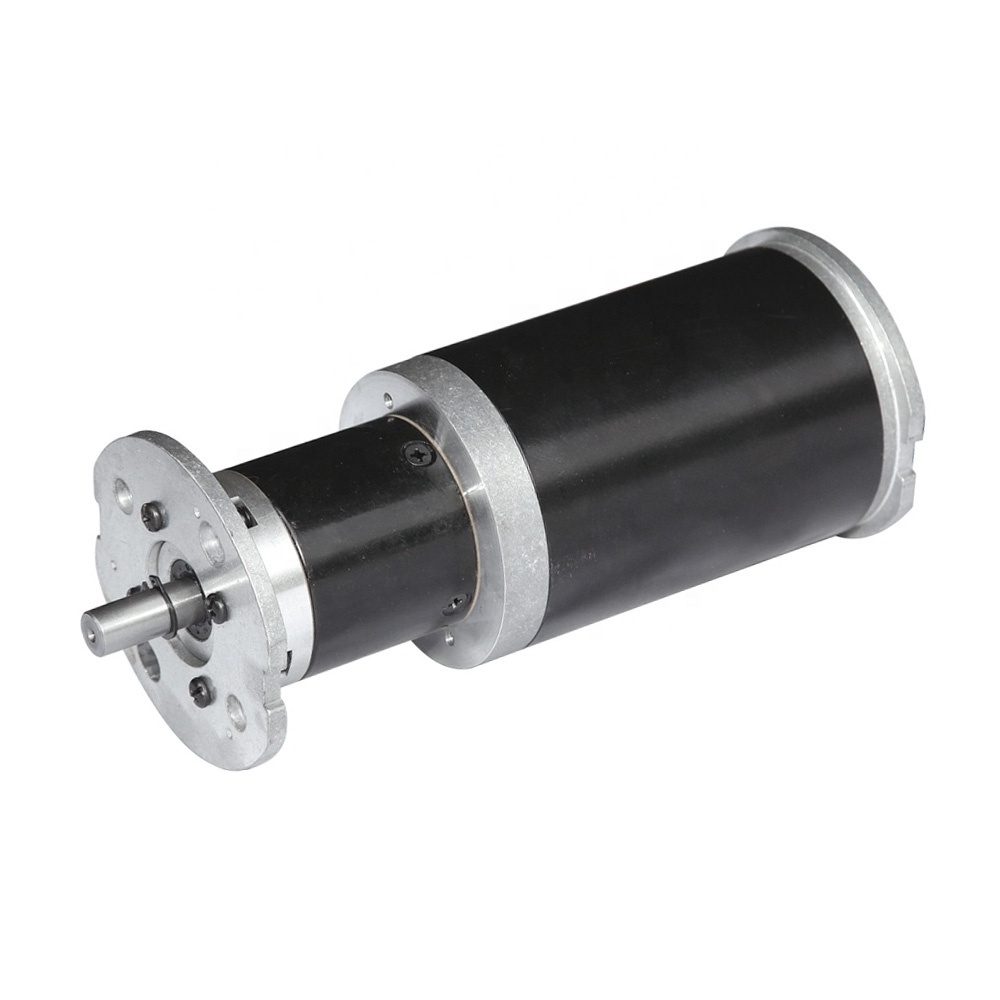

Swing Gate Operator 12V 24V DC Planetary Gear Motor
APPLICATIONS:
Swing Gate Operators
Only Motor Specs.:
· Motor Size: 80mm
· Voltage: 24V DC
· Motor Power: 120W
Swing Gate Operators
Only Motor Specs.:
· Motor Size: 80mm
· Voltage: 24V DC
· Motor Power: 120W
. Rated Speed: 2000rpm
. Rated Torque: 0.57N.m
Gear Motor Specs.:
. Ratio: 32:1
· Rated Output Speed: 62.5rpm
· Rated Torque 15N.m
· With 12PPR Magnetic Encoder
· Customized shaft & front cover available upon request
· Rated Output Speed: 62.5rpm
· Rated Torque 15N.m
· With 12PPR Magnetic Encoder
· Customized shaft & front cover available upon request
. Customized technical specs., such as rated voltage, rated speed, rated torque, output power, etc. are available.
Related Products
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
