Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Bridge
-
Model Number:
-
AWS ENiFe-CI ( THZ408 )
-
Operating Current:
-
DC AC
-
Application:
-
Welding repair of cast iron
-
Advantage:
-
Excellent Welding
-
Packing:
-
10kg/carton
Quick Details
-
Material:
-
Cast Iron
-
Welding Current:
-
90-110A 120-150A 160-190A
-
Operating Temperature:
-
Normal
-
Warranty:
-
2 years
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Bridge
-
Model Number:
-
AWS ENiFe-CI ( THZ408 )
-
Operating Current:
-
DC AC
-
Application:
-
Welding repair of cast iron
-
Advantage:
-
Excellent Welding
-
Packing:
-
10kg/carton
|
THZ408 |
THZ408

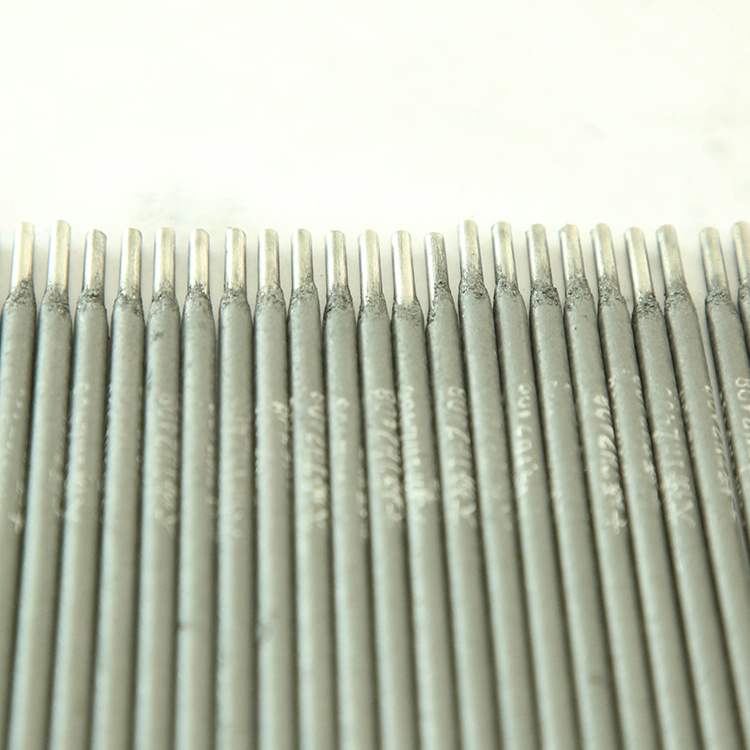

Pure N ickel C ast I ron E lectrode
GB/T 10044 EZNiFe-1
AWS ENiFe-CI
JIS DFCNiFe
Application: I t is suitable for the welding of high - strength gray iron and nodular cast iron , s uch as cylinder, engine block, gear box , etc. .
Characteristics: THZ408 is the cast iron electrode with nickel iron alloy core and strong reduction of graphite coating . It can be used in AC and DC dual purpose, has stable arc, and is easy to operate. The electrode has the characteristics of high strength, good plasticity, low linear expansion coefficient and so on . The c rack resistance for grey cast iron is as much as that for THZ308 , while the c rack resistance for nodular cast iron is more than THZ308 . For cast iron with higher phosphorus (0.2%P) , it also has a good results and its to cutting performance is lower than THZ308 and THZ508 slightly. THZ408 is used in the w elding of gray iron and nodular cast iron for room Precautions:
1 B efore welding , the electrode s need to be bake d for 1 hour with the temperature of 150±10℃ before using.
2 U se small current for welding as far as possible.
3 It can eliminate the welding stress and avoid the crack by the hammer.
Chemical Composition of the deposited metal(the mass fraction): %
|
Elements |
C |
Si |
Mn |
S |
Fe |
Ni |
Cu |
Al |
The mass of other elements |
|
S tandard value |
≤ 2.0 |
≤ 4.0 |
≤ 2.5 |
≤0.03 |
margin |
45- 60 |
≤ 2.5 |
≤ 1.0 |
≤ 1.0 |
Welding reference current (AC, DC + )
|
Electrode diameter( mm ) |
3.2 |
4.0 |
5.0 |
|
Welding current ( A ) |
90-110 |
120-150 |
160-190 |
