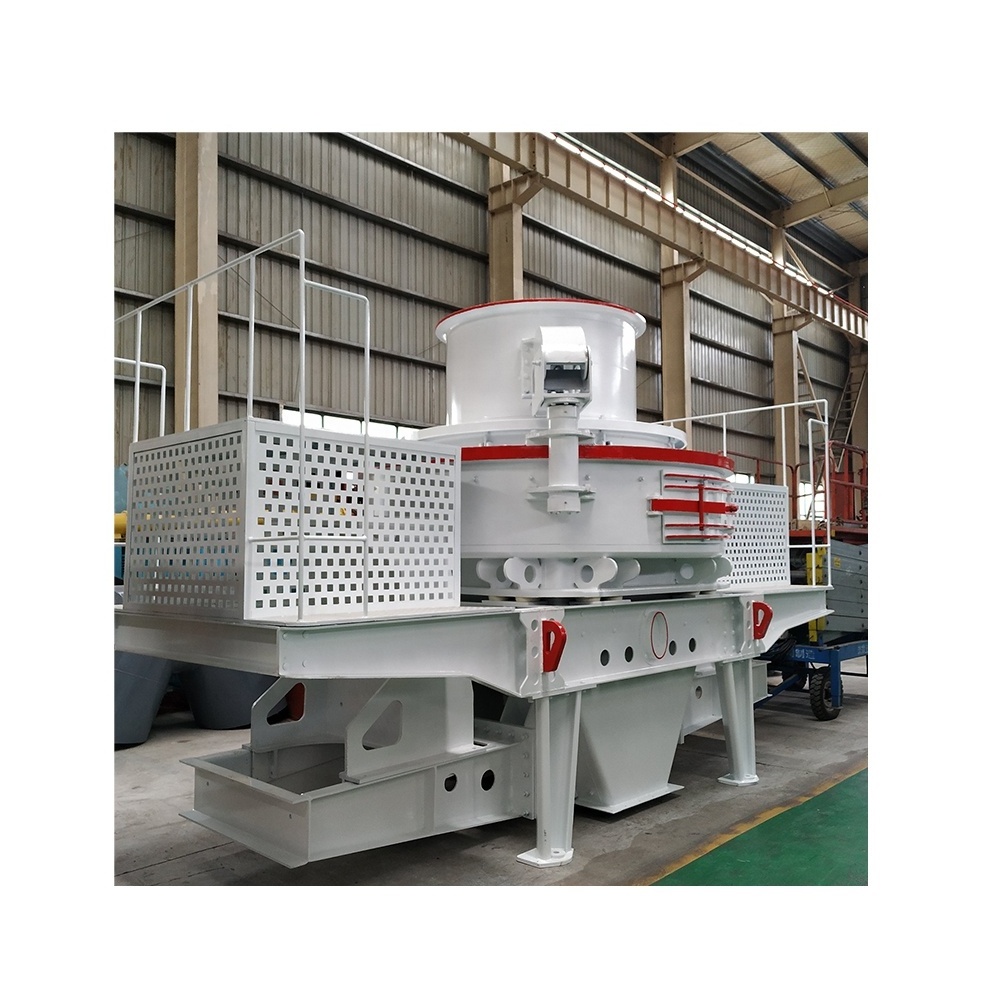

Sand Making Plant Rock Crusher Stone Crushing Machine to Sand Mortar Sand Maker Crusher
Product Overview
1.
Sand maker crusher
can be used in Pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailing , artificial sand production.
2. Sand maker crusher can be used in Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand maker crusher and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. Sand maker crusher with high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
5. Sand maker crusher can be used in the production of glass,quartz sand and other high purity material.
2. Sand maker crusher can be used in Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand maker crusher and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. Sand maker crusher with high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
5. Sand maker crusher can be used in the production of glass,quartz sand and other high purity material.
Working Principle
Sand maker crusher
adopts high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.
FEATURES AT A GLANCE
1.
Sand maker crusher
with Large handling capacity and High output;60-600t/h, the output of VSI crusher has been stably increased30%, comparing with the traditional equipment under the same motor power.
2.
Sand maker crusher
in Low wearing parts cost;Perfect impact angle design of the crushing cavity, less friction against the wearing parts. The operation cost reduces 40%.
3. Sand maker crusher with Perfect product shape. It fits especially man-made sand and stone reshaping.
4. Sand maker crusher with hydraulic devices are maintained easily;Hydraulic door-opened device make the repair in the crushing cavity easily .Shorten downtime and save effort.
5. Sand maker crusher with automatic test, safe and reliable;Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.
6.Thinning oil lubricant and automatic maintenance;The original German thinning oil lubricant station,double-pump injection system guarantees the oil supply.
3. Sand maker crusher with Perfect product shape. It fits especially man-made sand and stone reshaping.
4. Sand maker crusher with hydraulic devices are maintained easily;Hydraulic door-opened device make the repair in the crushing cavity easily .Shorten downtime and save effort.
5. Sand maker crusher with automatic test, safe and reliable;Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.
6.Thinning oil lubricant and automatic maintenance;The original German thinning oil lubricant station,double-pump injection system guarantees the oil supply.
PRODUCT SPECIFICATIONS
|
Model
|
|
VSI-7611
|
VSI-8518
|
VSI-9526
|
VSI-1140
|
VSI-1145
|
|||||
|
Capacity (t/h)
|
Cascade and Center Feeding
|
120-180
|
200-260
|
300-360
|
450-520
|
490-600
|
|||||
|
|
Center Feeding
|
60-90
|
100-130
|
150-190
|
225-260
|
250-310
|
|||||
|
Feeding Size (mm)
|
Soft Material
|
< 35
|
< 40
|
< 45
|
< 50
|
< 50
|
|||||
|
|
Hard Material
|
< 30
|
< 35
|
< 40
|
< 45
|
< 45
|
|||||
|
Rotation Speed (r/min)
|
|
1700-1890
|
1520-1690
|
1360-1510
|
1180-1310
|
1180-1280
|
|||||
|
Power of the Double Motors (kw)
|
|
110-150
|
180-220
|
264-320
|
400-440
|
440-520
|
|||||
|
Overall dimension L*W*H (mm)
|
|
3700*2150*2100
|
4140*2280*2425
|
4560*2447*2278
|
5000*2700*3300
|
5100*2790*3320
|
|||||
|
Power Source
|
|
380v:50hz
|
|
|
|
|
|||||
|
Vibrating Sensor
|
|
Inspection Scope:0.1-20mm/s, it can be adjusted continuously.
|
|
|
|
|
|||||
|
Hydraulic Lubrication Station
|
Power of Double Oil Pump
|
2x0.31kw
|
|
|
|
|
|||||
|
|
Safety
|
Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start
the motor in winter. |
|
|
|
|
|||||
|
|
Overall Dimension L*W*H (mm)
|
820x520x1270
|
|
|
|
|
|||||
|
|
Power of Oil-Box Heater
|
2kw
|
|
|
|
|
|||||
Successful Project
Factory Delivery Pictures
Factory Product Pictures
FAQ
1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foundation drawing, installation service, work training as well as other service according to the customer's requirements.
4.How long is the delivery time?
About 20 working days after we receive the payment.
5. What are the payment terms?
T/T is the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1).What is the raw material and raw material size?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foundation drawing, installation service, work training as well as other service according to the customer's requirements.
4.How long is the delivery time?
About 20 working days after we receive the payment.
5. What are the payment terms?
T/T is the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1).What is the raw material and raw material size?
2) Final Product size?
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
