Quick Details
-
Dimension(L*W*H):
-
.
-
Power (kW):
-
55 kW
-
Weight (KG):
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
waste tire granule line:
-
high output rubber tire recycling machine
-
old tyre recycling machine:
-
wire drawing machine
-
rubber machine crusher:
-
waste rubber tires crusher
-
Recycling Tire Machine Manufacturer:
-
waste tire shredder
-
waste tyre rubber granules:
-
rubber powder machine
-
waste tyre cutting machine:
-
waste tyre recycling plant
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangyue
-
Voltage:
-
as your requirments
-
Dimension(L*W*H):
-
.
-
Power (kW):
-
55 kW
-
Weight (KG):
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
waste tire granule line:
-
high output rubber tire recycling machine
-
old tyre recycling machine:
-
wire drawing machine
-
rubber machine crusher:
-
waste rubber tires crusher
-
Recycling Tire Machine Manufacturer:
-
waste tire shredder
-
waste tyre rubber granules:
-
rubber powder machine
-
waste tyre cutting machine:
-
waste tyre recycling plant
Full Automatic small scale tire recycling plant
Wechat / phone:+86 15092429741
Draw steel wire from the tire ring by Tire wire drawing machine-if the diameter of tire is bigger than 825mm, can choose to use tire cutting machine to cut the tire to several pieces--- put the small tires or pieces into tire shredder to make tire blocks-put the tire blocks to the tire crusher to make rubber powder-finished rubber powder.
Flow Chart:
Waste tire---whole tire de-beader---whole tire cutting---whole tire shredding---Rubber crushing--- magnetic separating(Nylon fiber separator if recycle nylon tires) ---Rubber powder
1, Whole tire debeader-
whole tire wire drawing machine( Draw out the steel wires from the tire bead. )
|
dapt tire |
< 1200mm |
|
Pull |
5T |
|
capacity |
20-50 tires /hour |
|
Motor power |
15KW |
|
Weight: |
3T |
|
Dimension |
42 0 0*900*1700 |
2, Whole tire cutter
Functions:Whole tire cutter , it is used to cut big tires into small pieces.
|
Adapt tire |
< =2000mm |
|
capacity |
20-60 tires/h |
|
Motor power |
5.5KW |
|
Dimension |
2080*1000*2130 |
|
weight |
2.5T |
|
Adopt to tire |
1200-2000mm |
|
weight |
2T |

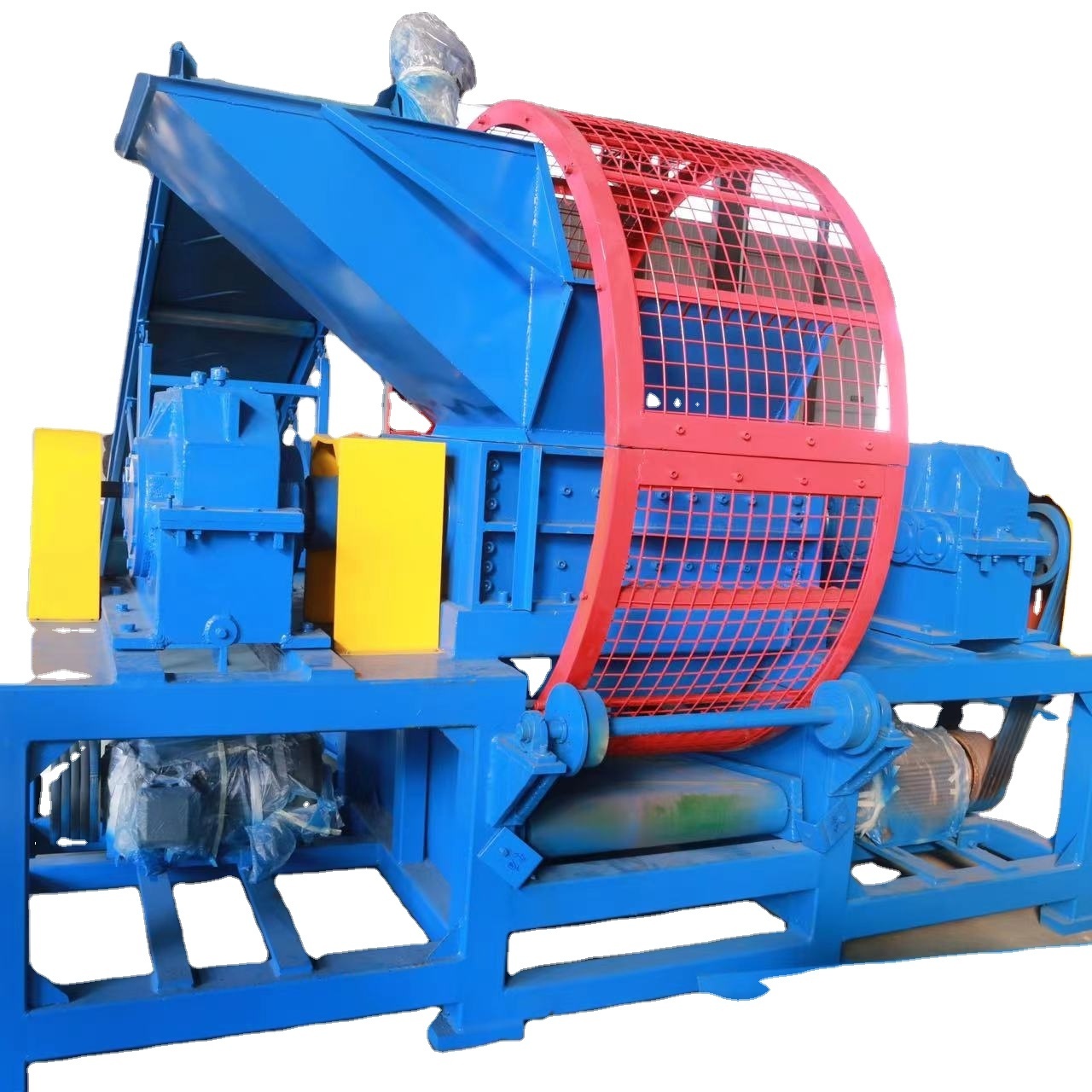

3,Whole tire shredder
This whole tire shredder can cut whole tire into 50x50mm , and 60x60mm rubber block as you need.
|
Model |
zps-900 |
zps-1200 |
|
Input size |
Less than 900 |
Less than 1200 |
|
Discharge size |
50-300mm(adjustable) |
50-300mm(adjustable) |
|
Motor power |
30*2kw |
75*2kw |
|
Dimension |
3450*2100*2400mm |
4100*2730*3300mm |
|
Amount of waste tire |
0.8-1.5T/h |
2000-3800kg/h |
|
Screen power |
1.5KW |
5.5KW |
|
Main shaft speed |
19rpm |
22rpm |
|
Screen speed |
4rpm |
25rpm |
|
Number of blades |
16pcs, made of alloy steel, welded |
20pcs, made of alloy steel, welded |
|
Gearbox |
harden gears, large torque |
harden gears, large torque |
|
weight |
8T |
16T |
|
|
Equipped with output conveyor, sharing motor with screen |
|
4.Rubber crusher
Technical parameter of waste tire crusher recycling tire machine
|
Model |
ZPS-800 |
ZPS-1200 |
|
Production capacity |
0.8-2 Ton/hour |
1.5-3 T/h |
|
Size of feeding |
≤800 mm whole tyre |
≤1200 mm whole tyre |
|
Discharging particles |
≤50*50mm |
≤60*60mm |
|
Motor powder |
45 kw |
155 kw |
|
Discharging motor |
2.2 kw |
4 kw |
|
Cutter rotate speed |
16 r/min |
31 r/min |
|
Screener rotate speed |
6 r/min |
8 r/min |
|
Dimension (L*W*H) |
2.8*2.1*2.4 m |
5.2*2.8*3.5 m |
|
Weight |
6.2 T |
14.8 T |
5, Auxiliary Equipment
Features
1) Granulate waste tires into rubber powder of 3-80 mesh, and automatically separate steel wire, fiber and nylon completely through magnet separator and vibrating screen at normal temperature
2) Compact structure, small space and easy maintenance
3) Low energy consumption and good cost performance
4) Automatic control, higher operation stability, and lower labor intensity
5) No polluted water, waste gas and waste residue in the whole process
Our cert: CE,SGS,ISO9001
Contacts:
QINGDAO GUANGYUE RUBBER MACHINERY MANUFACTING CO., LTD
OFFFICE PHONE: +86-532- 86767598 FAX: +86- 532-86767598
Website:www.qdguangyue.com
FACTORY ADD:Huangshan econornic zone,jiaonan, Qingdao city, Shandong province,
China.
RFQ:
1. Are you manufacturer?
Yes, we are CE SGS ISO approved rubber products manufacturer in China.
2. Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3. How long is your guarantee?
Two year (Calculated from the equipment arrives at the customer’s side.).
4. How to contact us?
You can click 'send' now.
If you want to know more information about our products welcome to contact us in any time, and welcome to our factory!
