Quick Details
-
Warranty:
-
1year
-
Product name:
-

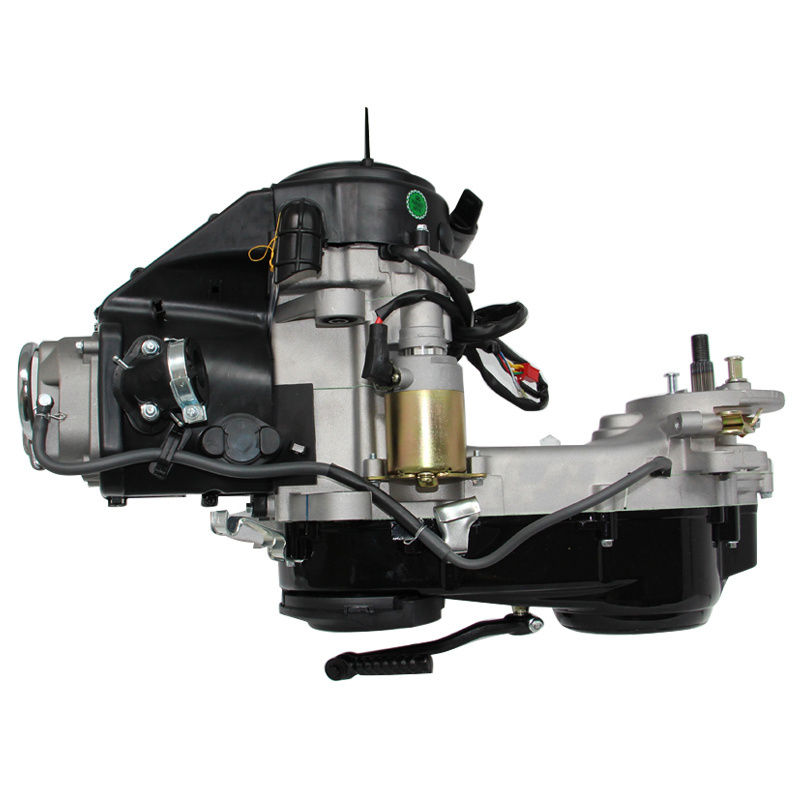

Chinese Motorcycle Engines
-
Model:
-
100CC
-
Type:
-
Motocycle Engine
-
Quality:
-
Great
-
Dimension(L*W*H):
-
626*435*300MM
-
Packing Size (L*W*H):
-
720*460*320MM
-
Maximum power:
-
7.5kw /6500 r/min
-
Maximum torque:
-
10.0 Nm /600 r/min
-
Maximin null-load speed:
-
1700±100r/min
-
Maximin fuel comsumption:
-
≤367g/kW/h
Quick Details
-
Displacement (ml):
-
100CC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMAP
-
Warranty:
-
1year
-
Product name:
-
Chinese Motorcycle Engines
-
Model:
-
100CC
-
Type:
-
Motocycle Engine
-
Quality:
-
Great
-
Dimension(L*W*H):
-
626*435*300MM
-
Packing Size (L*W*H):
-
720*460*320MM
-
Maximum power:
-
7.5kw /6500 r/min
-
Maximum torque:
-
10.0 Nm /600 r/min
-
Maximin null-load speed:
-
1700±100r/min
-
Maximin fuel comsumption:
-
≤367g/kW/h
Products Description
|
Dimension(L×W×H)(mm)
|
626×435×300
|
|
|
||
|
Nominal displacement
|
100ml
|
|
|
||
|
Displacement
|
97.2ml
|
|
|
||
|
Bore
|
50mm
|
|
|
||
|
Stroke
|
49.5mm
|
|
|
||
|
Compression ratio
|
9.2 :1
|
|
|
||
|
Rated power
|
4.0kw/7000r/min
|
|
|
||
|
Maximum power
|
4.2kw/7500r/min
|
|
|
||
|
Maximum torque
|
5.5N·m/6000r/min
|
|
|
||
|
Maximin null-load speed
|
1700±100r/min
|
|
|
||
|
Maximin fuel comsumption
|
≤367g/kW·h
|
|
|
||
Before placing an order for motorcycle engine, please confirm the following information：
1. Magneto : AC 8 poles, DC 8 poles or DC11 poles?
2. Long engine case or short engine case?
3. Long axle or short axle?
4. Drum brake or disc brake?
5. To equip 2nd air injection or not?
6. To engrave Engine family No. or not (For American market only)?
