Quick Details
-
Brand Name:
-
COVNA
-
Item:
-
Motorized Ball Valve
-
Control Mode Options:
-
ON/OFF Type, Modulating Type, Intelligent Type
-
Size Range:
-
DN15 to DN100
-
Valve Material Options:
-
Plastic UPVC CPVC PVC
-
Sealing Material:
-
NBR, EPDM, PTFE
-
Pressure:
-
PN10/16
-
End Connection:
-
Double Union
-
Voltage:
-
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Quick Details
-
Port Size:
-
1/2" to 4"
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HK60QP Motorized Ball Valve
-
Brand Name:
-
COVNA
-
Item:
-
Motorized Ball Valve
-
Control Mode Options:
-
ON/OFF Type, Modulating Type, Intelligent Type
-
Size Range:
-
DN15 to DN100
-
Valve Material Options:
-
Plastic UPVC CPVC PVC
-
Sealing Material:
-
NBR, EPDM, PTFE
-
Pressure:
-
PN10/16
-
End Connection:
-
Double Union
-
Voltage:
-
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Our Advantages
Specification

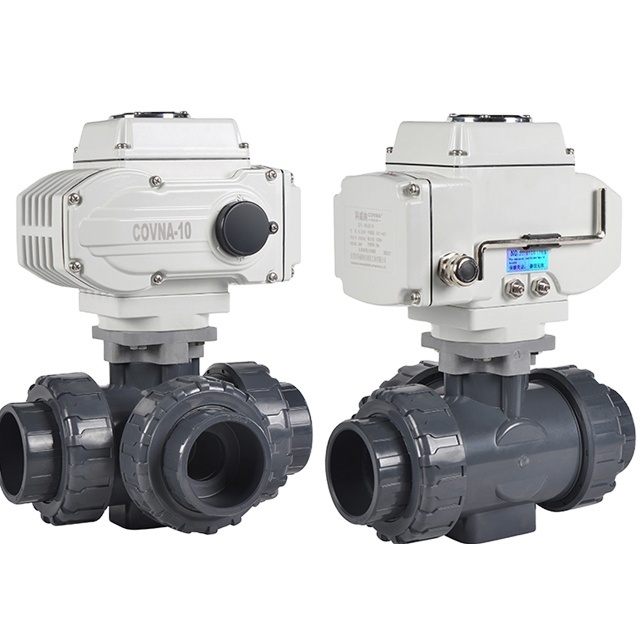

Features Of 3 Way Plastic Electric Ball Valve:
What We Can Do For You?
● Selection guide. We are application-oriented and provide targeted and flexible solutions
● Free documents are provided to help you use the valve.
● Technical support. Meet any problem during the valve working, feel free to contact us and our experienced sales team and
engineer would like to help you solve it.
● Free documents are provided to help you use the valve.
● Technical support. Meet any problem during the valve working, feel free to contact us and our experienced sales team and
engineer would like to help you solve it.
|
Item
|
Electric Water treatment Control plastic pvc 2 inch 4 inch three 3 way Pool 110v AC Motorized Ball Valve for water pipe
|
|
|
||
|
Applicable Standards
|
GB, DIN, ANSI, ASME, JIS, API
|
|
|
||
|
Size Range
|
DN15 to DN100
|
|
|
||
|
Operating Pressure
|
10/16 Bar
|
|
|
||
|
Body Material
|
Plastic UPVC CPVC PVC PPL
|
|
|
||
|
Ball Valve Material
|
Plastic UPVC CPVC PVC PPL
|
|
|
||
|
Sealing Material
|
NBR, EPDM, VITON, PTFE
|
|
|
||
|
Structure
|
3 Way T port or L port
|
|
|
||
|
End Connection
|
Double union
|
|
|
||
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, etc
|
|
|
||
|
Temp. of Media
|
Range from -30 to +80°C
|
|
|
||
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
|
|
||
Project Reference
|
Technical Parameter for Actuator
|
|
|
|
|||
Features Of COVNA Quarter-Turn Electric Actuator:
●
90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
●
AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
|
Series
|
05
|
10
|
16
|
30
|
60
|
125
|
250
|
400
|
|||||||
|
Torque Output
|
50Nm
|
100Nm
|
160Nm
|
300Nm
|
600Nm
|
1250Nm
|
2500Nm
|
4000Nm
|
|||||||
|
90° Cycle Time
|
20S
|
15/30S
|
15/30S
|
15/30S
|
30S
|
100S
|
100S
|
100S
|
|||||||
|
Angle Of Rotation
|
0-90°
|
0-90°
|
0-90°
|
0-90°
|
0-90°
|
0-90°
|
0-90°
|
0-90°
|
|||||||
|
Working Current
|
0.23A
|
0.35A
|
0.4A
|
0.45A
|
0.6A
|
1.03A
|
1.85A
|
2.7A
|
|||||||
|
Drive Motor
|
50W
|
75W
|
80W
|
100W
|
130W
|
210W
|
285W
|
360W
|
|||||||
|
Voltage Options
|
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
|
|
|
|
|
|
|
|
|||||||
|
Input Signal
|
4-20mA, 1-5VDC, 0-10VDC
|
|
|
|
|
|
|
|
|||||||
|
Output Signal
|
4-20mA, 1-5VDC, 0-10VDC
|
|
|
|
|
|
|
|
|||||||
|
Protection Class
|
IP65 protection class
|
|
|
|
|
|
|
|
|||||||
|
Ambient Temp
|
-20 to +60°C
|
|
|
|
|
|
|
|
|||||||
|
Wiring Diagram
|
A: ON/OFF type with light indicator signal feedback
B: ON/OFF type with passive contact signal feedback
C: ON/OFF type with resisance potentiometer signal feedback
D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback
E: Regulation type with servo control module
F: DC24/DC12V direct ON/OFF type
G: AC380V 3-phase power supply with passive signal feedback
H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback
|
|
|
|
|
|
|
|
|||||||
