Quick Details
-
Weight (KG):
-
20000
-
Type:
-
Hydraulic / Manual/ Hydraulic
-
Maxi. Load Weight:
-
20t
-
Material:
-
Cold rolled sheets and GI sheets
-
Voltage:
-
Customized
-
Steel thickness:
-
0.2-20mm
-
Steel width:
-
400-2200mm
-
Usage:
-
Sheet Metal Unwinding
Quick Details
-
Place of Origin:
-
Hebei, China
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ZTZG
-
Weight (KG):
-
20000
-
Type:
-
Hydraulic / Manual/ Hydraulic
-
Maxi. Load Weight:
-
20t
-
Material:
-
Cold rolled sheets and GI sheets
-
Voltage:
-
Customized
-
Steel thickness:
-
0.2-20mm
-
Steel width:
-
400-2200mm
-
Usage:
-
Sheet Metal Unwinding
Products Description
Decoiler, also know as uncoiler, coil reel. It’s a machine that widely used in the sheet metal forming industry. It uncoils the metal strip from a coil and feeds it to the next work station in the coil processing line.
As for the hydraulic decoiler, the support rod is pushed by a hydraulic cylinder for smooth expansion, which makes it perfectly suitable for medium-duty and heavy-duty metal coils. When the uncoiler spindle is rotating, the hydraulic cylinder on the rod will rotate together. One end of the pipeline connects to the hydraulic cylinder, and the other end connects to the hydraulic station.
As for the hydraulic decoiler, the support rod is pushed by a hydraulic cylinder for smooth expansion, which makes it perfectly suitable for medium-duty and heavy-duty metal coils. When the uncoiler spindle is rotating, the hydraulic cylinder on the rod will rotate together. One end of the pipeline connects to the hydraulic cylinder, and the other end connects to the hydraulic station.

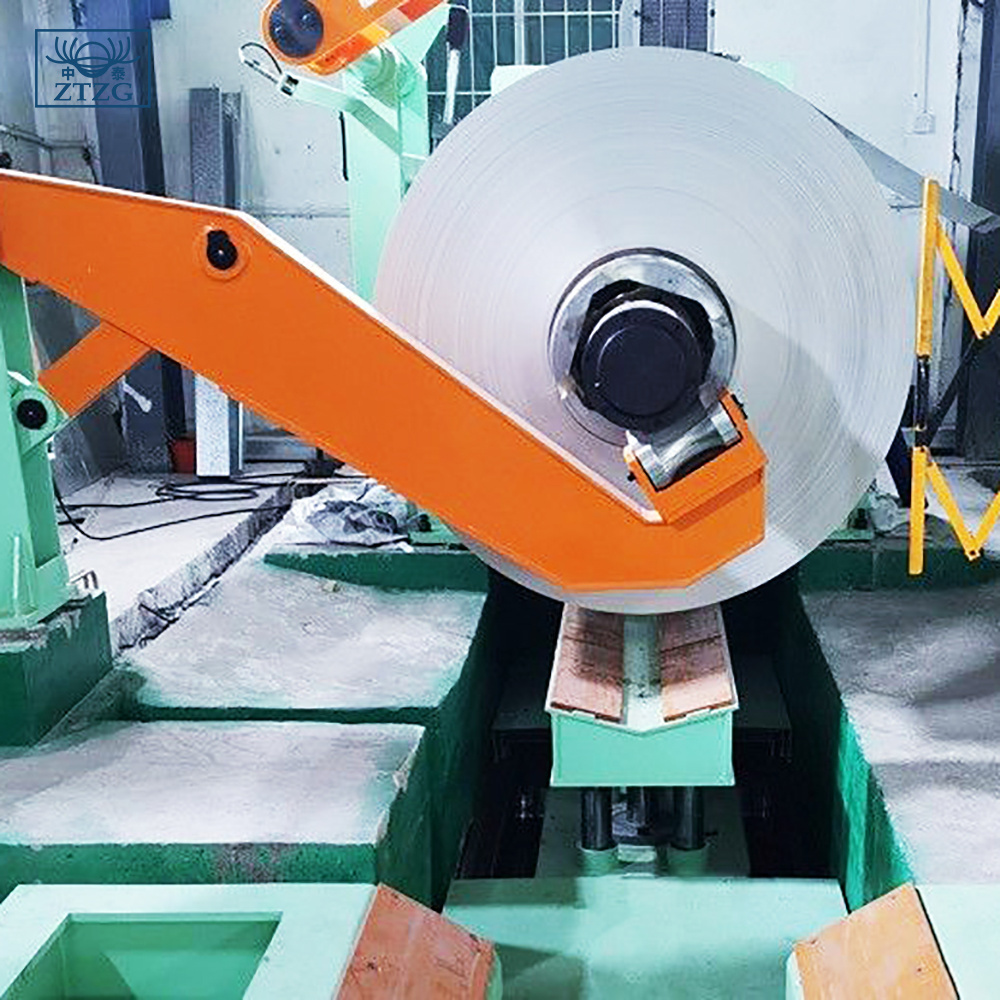

Hydraulic Steel Coil Decoiler Description
Hydraulic decoiler main function is to support the coil and provide tension to the steel belt. It consists of a frame, a main
shaft, an expansion and contraction drum, and a brake device. It can be used with hydraulic opener, hydraulic winder, uncoil
feeder, uncoil leveler, etc. It has a wide range of use and convenient operation.
shaft, an expansion and contraction drum, and a brake device. It can be used with hydraulic opener, hydraulic winder, uncoil
feeder, uncoil leveler, etc. It has a wide range of use and convenient operation.
Coil Unwinder Machine Main Features
1. Hydraulic cylinder expands the mandrel that automatically centers the coil.
2. The reinforced spindle is capable of loading the coil more than 5tons.
3. AC Drive and proportional speed control combine to provide smooth material payoff.
4. Equipped with inverter and disc brake, MTC models use a manually adjustable speed control knob to make the operator set the payoff speed.
5. Pneumatic press arm and support arm prevent coil from loosening.
6. Coil car allows simple and safe coil loading increasing productivity.
7. Custom and application specific solution is available.
2. The reinforced spindle is capable of loading the coil more than 5tons.
3. AC Drive and proportional speed control combine to provide smooth material payoff.
4. Equipped with inverter and disc brake, MTC models use a manually adjustable speed control knob to make the operator set the payoff speed.
5. Pneumatic press arm and support arm prevent coil from loosening.
6. Coil car allows simple and safe coil loading increasing productivity.
7. Custom and application specific solution is available.
|
Uncoiler Types for Your Choice
|
|
|
|
|||
|
Type
|
Arm Expanding Type
|
Horizontal Rotation Type
|
Pressing Head
|
|||
|
Mechanical double/single arm uncoiler
|
Manual
|
Manual
|
Equipped when thickness is over 4.0mm
|
|||
|
Hydraulic double/single arm uncoiler
|
Hydraulic
|
Manual
|
Equipped when thickness is over 4.0mm
|
|||
|
Full automation double/single arm uncoiler
|
Automatic
|
Motor drive
|
Equipped when thickness is over 4.0mm
|
|||
|
Single cone uncoiler
|
Automatic
|
Don't need to rotate
|
Equipped when thickness is over 4.0mm
|
|||
